Rockwell (AB) PLC 1747-L551 ，1746-IB8，1746-IB32 ，1746-OW16 ，1746-OB32， 1746-NI4， 1746-NI8

A detailed description of Rockwell Automation (Allen Bradley, AB) PLC (Programmable Logic Controller), covering its core product line, technical features, application scenarios, and maintenance management strategies:

1、 Core product series

Large scale control system

ControlLogix series

Modular design, supporting multiple processors and networks (EtherNet/IP, ControlNet, DeviceNet).

Typical model: 1756-L8x series controller, supporting motion control and safety logic integration.

Scalability: Supports up to 256 I/O modules, suitable for complex process control.

GuardLogix Safety PLC

Integrated safety function (SIL 3/PLe level), supporting safety I/O and SafeMotion control.

Application scenarios: Robot collaboration, dangerous area equipment interlocking.

Medium and compact systems

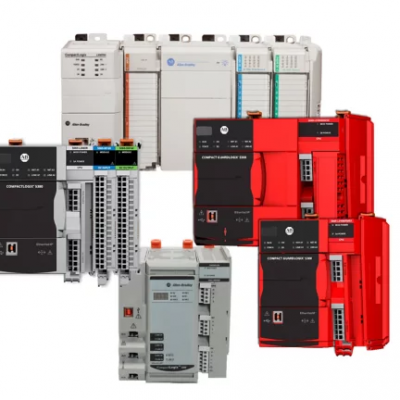

CompactLogix series

Integrated design (controller+I/O), such as 5069-L306ER, suitable for small and medium-sized production lines.

Supports EtherNet/IP real-time communication and integrates motion control axes (up to 16 axes).

Micro800 series

Low cost entry-level PLCs, such as Micro850 (2080-L50E), support 20-48 point I/O.

Built in serial port and Ethernet, suitable for simple mechanical control.

Dedicated controller

PowerFlex series integrated PLC

The frequency converter is equipped with built-in PLC function (such as PowerFlex 755T), which realizes the integration of drive and logic control.

PanelView Plus HMI-PLC all-in-one machine

Simplify the architecture of human-machine interaction systems by combining HMI and controllers.

2、 Core technical features

Unified Programming Platform

Studio 5000 software

Integrate Logix Designer (ladder diagram, structured text, functional block programming).

Support collaborative configuration of controllers, drivers, and HMI.

communication protocol

EtherNet/IP as the backbone: real-time I/O control and data exchange, supporting CIP (Common Industrial Protocol).

Traditional network compatibility: ControlNet (deterministic communication), DeviceNet (device level network).

Redundancy and reliability

Controller redundancy (ControlLogix dual machine hot standby), power redundancy module (1756 Px series).

Support firmware online upgrade (non-stop updates).

Safety function

Implement the co platform operation of security logic and standard logic through GuardLogix.

The safety I/O module (such as 1734-IB8S) supports dual channel safety inputs.

3、 Typical application scenarios

Manufacturing Automation

Automobile production line (welding robot control, assembly line synchronization).

Packaging machinery (servo positioning, tension control).

process industry

Petrochemical industry (tank level interlock control, safety instrument system).

Water treatment (pump station logic, PID regulation).

infrastructure

Intelligent buildings (HVAC system integration, energy management).

Power SCADA (Substation Equipment Monitoring).

4、 Spare parts and maintenance management

Classification of key spare parts

Controller module: CPU (such as 1756-L8x), communication module (1756-EN2T).

I/O modules: digital quantity (1756-IB16), analog quantity (1756-IF8), dedicated modules (thermocouple, high-speed counter).

Power supply and backplane: redundant power supply (1756-PB75), rack backplane (1756 Ax series).

Maintenance strategy suggestions

Regular diagnosis: Monitor PLC health status (memory usage, communication load) through FactoryTalk View.

Firmware management: Retain historical firmware files and ensure compatibility with old system upgrade requirements.

Module redundancy configuration: Key control nodes adopt dual power supply and dual network modules.

supply chain optimization

Compatible spare parts: Third party certification modules (such as Phoenix Contact's Profinet I/O) can reduce costs.

Quick replacement solution: Pre installed backup controller (mirror clone) to shorten fault recovery time.

5、 Typical faults and countermeasures

Case 1: EtherNet/IP communication interruption

Troubleshooting steps: Check switch ports, update 1756-ENBT module firmware, and replace faulty network cables.

Spare parts reserve: spare communication modules, industrial grade Ethernet switches (such as Stratix series).

Case 2: I/O module channel failure

Emergency plan: Activate the backup point and modify the program to replace the 1756-OB16 output module.

Preventive measures: Install a live plug-in base (1756-RM series) to reduce downtime.

6、 Economic considerations

Total Cost of Ownership (TCO): OEM module premium vs third-party component compatibility risk.

Old system renovation: Upgrading the networking of traditional PLCs (such as SLC 500) through the 1756-EWEB module

model

1794-IF8IH

1734-AENTR

25B-D030N104

1769-L33ER

1763-L16BBB

1747-L552

1766-L32BWA

1756-EN2TR

1747-BA

1756-EN2TP

1747-L551

1746-IB8

1746-IB32

1746-OW16

1746-OB32

1746-NI4

1746-NI8

1746-P2

1766-L32BXB

1606-XLS480E

1794-OF8IH

1794-OB32P

1756-BA2

1756-PA72

1756-L72
