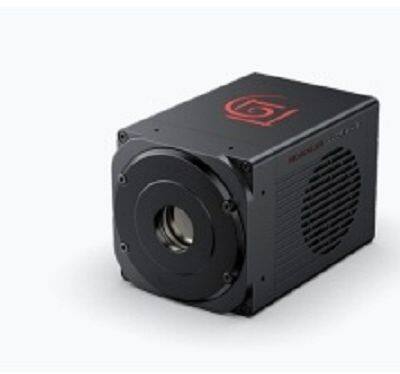

Gloria 4.2 sCMOS Scientific Camera

Revealer Gloria series sCMOs cameras are desiqned with Gpixel’s leading CMOS image sensor, combinedwith backside illumination technology and deep cooling sealing process for QE of up to 95% and extreme lownoise, suitable for life sciences, quantum physics, astronomical observation and semiconductor inspection andothers. lt’s compact design is suitable for integration into the SlM and other optical inspection systems.

SKUs: Gloria 4.2

Sensor type andmodel: sCMOS GpixeI GSENSE2020BSI

Resolution: 2048 (H)x 2048 (V)

Pixel size: 6.5 μm x 6.5 μm

Effective area: 13.3 mm x 13.3 mm

Full well capacity: 45 000 e-

Readout noise: 1.2 e- @ Low Noise Mode

Peak QE: 95 % @ 560 nm

Dynamic range: 90 dB

DSNU: 0.2 e-

PRNU: <0.5%

Cooling: TEC, Air, Liquid, 45 °C below ambient temperature

Dark Current: Air: 0.5 e-/p/s @-10 °℃(typical); Liquid: 0.3 e-/p/s @-20 °℃ (typical)

Shutter: Rolling, Global reset

Bit depth: 11 bit & 12 bit & 16 bit

Frame rate: USB : 61 fps @ 11 bit, 43 fps @ 12 bit46 fps @ 16 bit; CXP:135 fps @ 11 bit, 43 fps @ 12 bit,74 fps @ 16 bit

Readout modes: Full format/Binning(2x2,4x4)/ROI

Exposure times: 5 us~ 10 s

Data interface: USB 3.1 Gen1, CoaXPress 2.0(CXP-12)

Timestamp accuracy: 1 μs

Trigger interface: SMA, TTL/ 3.3 V level signal

Optical interface: C-mount

Power supply: AC 100 ~ 240 V, 50 Hz/ 60 Hz,1 A

Power consumption: 50 W

Size: 84x84x125 mm

Weight: 1300g

Operating Environment: Temp0~40°C，RH10~80 %

Storage Environment: Temp0~40°C，RH ≤90 %

SDK: C，C#，C++，Python

Software: RPC，Micro-manger，LabviewMatlab, Epics, ASCOM
