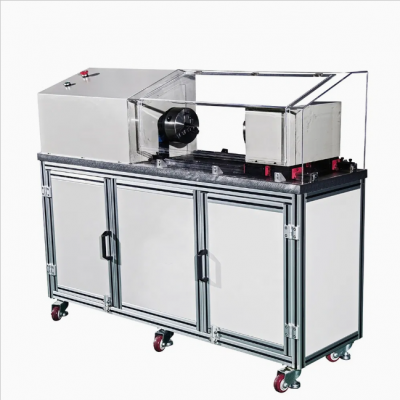

Digital Display material Torsion/Torque Testing Machine
- 10 Set / Sets per Month
- qingdao, tianjin,shanghai
- T/T
- 10 days
You May Like
-
vertical torsion tester vertical torsion test equipment vertical torsion fatigue tester
-
Wdw-100e 100kN Computer Servo Electronic Universal Testing Machine Factory
-
500n Single Column Computerized Universal Tensile Testing Machine for Rubber Tensile Tests
-
5kN Single Column Electromechanical Universal Testing Machine
-
Wdw-20e 20kN ASTM BS En ISO Computer Control Electromechanical Universal Testing Machine
-
vertical torque testing machine rotary torsion machine vertical axis torsion tester
Product Details
Weight | 100-500Kg | Power Source | AC220V | |
Accuracy Grade | 0.5 | Load Way | Electronic Load | |
Control | Computer Control | Loading Method | Static Load | |
Display | Digital | Origin | China |
Product Description
1.Introduction
This series torsion testing machine is suitable for metal materials, non-metallic materials, composite materials and components of torsion performance test.
2.Standard
GB/T 10128-1998 "Metal room temperature torsion test method"
GB/T 10128-2007 "Metal room temperature torsion test method"
3.Technical parameter
Model | WTB-N200S | WTB-N500S | WTB-N1000S | WTB-N2000S | WTB-N300S | WTB-N5000S |
Measuring range (Nm) | 200 | 500 | 1000 | 2000 | 3000 | 5000 |
Torque Resolution (Nm) | 0.02 | 0.05 | 0.1 | 0.2 | 0.5 | 0.5 |
Clearance between grips(mm) | 500 | |||||
Torque resolution | 1/300000 | |||||
Relative error of torque | ±1% | |||||
Torque effective test range(F·S) | 2%~100%F·S | |||||
Resolution of torsion angle | 0.002° | |||||
Test accuracy of torsion angle | ≤±0.5% | |||||
Torsion speed | 0.05~800 °/min, Can be customized | |||||
Relative error of torsion angle | ±0.5% | |||||
Protection function | the tester has overload protection function | |||||
Twist appendage | three jaw chuck type, two - way roof tightness |
Model | WTB-N100W | WTB-N200W | WTB-N500W | WTB-N1000W | WTB-N2000W | WTB-N3000W | WTB-N5000W | |
Maximum Torque(N/m) | 100 | 200 | 500 | 1000 | 2000 | 3000 | 5000 | |
Control Method | Constant torque and constant speed rotation, constant speed twist angle , close loop control mode | |||||||
Machine level | 1 Class | |||||||
Torque Test Range(F·S) | 2%~100%F·S | |||||||
Torque value relative error(%) | ≤±1 | |||||||
Torque display resolution | 1/20000 | |||||||
Torsional Angle Test Range(F·S) | 2%~100% | |||||||
Torsional Angle value relative error (%) | Better than ±0.5 | |||||||
Torsional Angle display resolution | 1/20000 | |||||||
intersection angle value relative error (%) | ≤±1 | |||||||
intersection angle display resolution(°) | 0.01 | |||||||
Max. torsion Angle | 99999° | |||||||
Torsional angular rate control range (°/min) | 0.05-800 | |||||||
Chuck spacing effectively (mm) | 600 | |||||||
Power Supply | 220V±10%,50Hz |
