Flexible Oil Suction Composite Hose for All Grades of Biodiesel

From the name of this type hose, we can see that the composite hose is used for conveying biofuel and biodiesel. The hose can also give best solution to bioethanol in the applications of tank truck delivers and rail car loading.

The structure of biofuel and biodiesel composite hose:

Biofuel and biodiesel composite hose is composed of five parts: inner helix wire, outer helix wire, liner, carcass and cover.

• Inner helix wire: nylon coated steel, aluminum or SS316.

• Outer helix wire: high tensile galvanized steel or stainless steel.

• Liner: polyamide or nylon.

• Carcass: multiple layers of polypropylene fabrics and films.

• Cover: abrasion resistant PVC fabrics.

Biofuel composite hose for transferring biofuel.

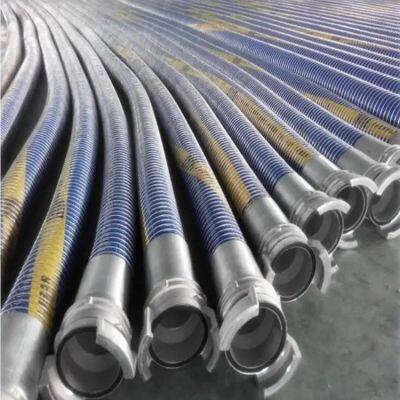

Biofuel and biodiesel composite hose

Features of biofuel and biodiesel composite hose:

• Flexible and soft, can bend freely.

• Lightweight, easy to handle.

• Resistant to abrasion, weather, ozone and UV rays.

• Resistant to corrosion and chemical fluids.

• Supplying easy multiple connections and disconnections and excellent durability due to the unique construction.

The details of biofuel and biodiesel composite hose:

• Temperature range: -20°C to +100°C.

• Inner diameter: 25mm, 38mm, 50mm, 65mm, 75mm, 100mm, 150mm, 200mm and 250mm.

• Outside diameter: 32mm, 50mm, 61mm, 76mm, 88mm, 112mm, 175mm, 240mm and 290mm.

• Bend radius: 100mm, 140mm, 180mm, 205mm, 280mm, 405mm, 510mm, 760mm and 915mm.

• Working pressure: 14 bar.

• Max working pressure: 250psi.

• Length: 15m.

Application of biofuel and biodiesel composite hose:

• It is suitable for all grades biodiesel, ethanol, methanol and propanol.

• It is used to transfer alternative fuels in modern society.

Biofuel and biodiesel composite hose can be used for the transferring of ethanol.

Biofuel and biodiesel composite hose can be used to transfer propanol.

Hebei Biaohui Rubber and Plastic Products Co., Ltd. main products include TPU flat hose series, fire hose series, industrial hose series, material conveying hose series, silicone hose series, metal hose series, PTFE hose series and matching joints, various rubber and plastic products and hose products.
