DWC-196 low temperature chamber
- qingdao,shanghai, tianjin
- T/T
- 5 days
You May Like
-
DWC-80 Charpy Impact Test Cooling Low Temperature Chamber
-
DWC-60 Charpy Impact Test Cooling Low Temperature Chamber
-
DWC-40 Charpy Impact Test Cooling Low Temperature Chamber
-
CST-50 Charpy Impact Testing Specimen Gap Projector
-
VU-2D impact test sample notch machine
-
JBD-500-196 computer control low temperature metal charpy impact tester
Product Details
Brand Name | wangtebei | Place of Origin | China | |
Model Number | DWC | Power | Electronic | |
Usage | Impact Testing Machine |
Product Description
1. introductions

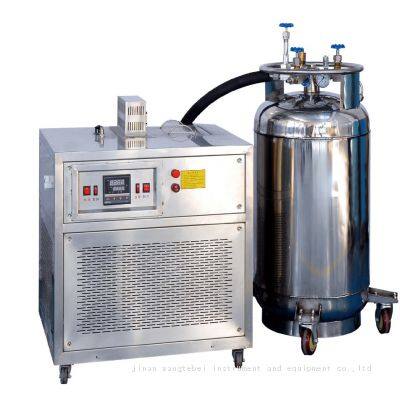

The low-temperature device mainly consists of liquid nitrogen Dewar, low-temperature container, infusion pipeline, heater, solenoid valve, pressure regulating controller, etc. According to their functions, they can be divided into three parts: liquid nitrogen Dewar, infusion system, and low-temperature container.
The liquid nitrogen dewar is a container for holding liquid nitrogen, and the liquid nitrogen dewar used in this device is a specially produced liquid nitrogen dewar for this device. (This Duwa tank can withstand a pressure not exceeding 0.03 MPa)
Low temperature container is the main part of low-temperature equipment. It mainly consists of a container body, a sampler ejector, a sample holder, a cooling chamber, a sample guide groove, a temperature control probe, etc. The low-temperature tank is controlled by single-chip microcomputer technology, with digital temperature values, automatic temperature control, automatic timing, and automatic alarm. It is easy to operate and safe, with fast cooling speed, large volume, and high temperature control accuracy. It is an ideal sample cooling and insulation equipment for low-temperature impact testing of metal materials.
2. Specifications
2.1 temperature range: 0 to -196℃ (room temperature ≤25℃)
2.2 accuracy:<±1℃
2.3 outside dimension:1400x650x850mm
2.4 effective working room:210x130x70mm
2.5 test sample quantity: 120pcs for specimens with size of 10x10x55mm
2.6 time recorder: 1s -99min, resolution is 1s.
2.9 temperature display resolution:0.1℃
2.10 cooling medium: liquid nitrogen (should be prepared by client)
2.11 working voltage:220-240V,2.0kw
2.12 test standard:GB/T229
