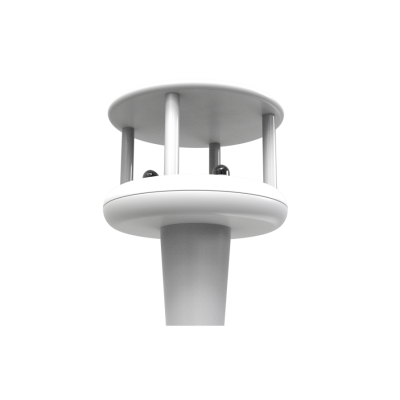

Compact Weather Station WSD-05M
- 30000 Piece / Pieces per Month
- T/T L/C PayPal D/P Western Union
You May Like
-
Desktop CO2 Sensor and Monitor AM7000 For Real-Time Indoor Air Quality Monitoring Carbon Dioxide Home Monitor CO2
-
Real Time Data Wall Mount CO2 Detector Meter Carbon Dioxide HVAC CO2 Sensor and Controller For Indoor Air Quality
-
Cubic Lambda Wideband Sensor 5-Wire Oxygen O2 Sensor LSU4.9 High Quality Air Fuel Ratio Sensor
-
High Performance 5 Wire Oxygen Sensor O2 Sensor for Vehicle Exhaust System
-
Cubic Factory Supply High Quality Auto Parts NOX Sensor Nitrogen Oxide Sensor
-
Wide Band Oxygen Sensor-LSU4.2 Automotive Oxygen Sensor
Product Details
| Brand Name | Cubic | Place of Origin | China | |
| Model Number | WSD-05M | Usage | Speed Sensor | |
| Working Temperature | -40℃~80℃ | Protection Level | IP65 | |
| Power Supply | DC 9-24V | Dimensions | 244.4H*116W (mm) |
Product Description
Introduction
The Cubic compact weather station, WSD-05M, is engineered for monitoring meteorological parameters. It integrates four advanced sensors—temperature, humidity, air pressure, and wind speed/direction—facilitating precise and comprehensive meteorological analysis.
The wind speed and direction sensor utilizes the ultrasonic time-difference method to accurately measure wind speed and direction. The device also incorporates three sensors within a multi-parameter module: the temperature sensor employing a bandgap temperature element, the humidity sensor utilizing a capacitive polymer element, and the silicon piezoresistive sensor for air pressure. The seamless integration guarantees the accuracy and reliability of data collection.Moreover, the WSD-05M exhibits great wear resistance, a long lifespan, and fast response.The WSD-05M supports flange cross-arm mounting and threaded locking installation methods.
During setup, it is critical to securely fasten all connections to ensure the precision of measurement data. Additionally, the WSD-05M offers optional features, including an electronic compass and tilt angle functionality. The WSD-05M is well-suited for applications in urban monitoring, wind power generation, meteorological observation, bridges and tunnels, marine vessels, and aviation airports.
Features
1. Advanced Ultrasonic Technology
2. Wind speed accuracy of ±0.3m/s at 0-10m/s, measurement range up to 75m/s
3. Integrated with high reliable temperature, humidity, and air pressure sensors
4. Robust and enduring shell construction
5. Low power consumption
6. Compact and lightweight, easy to install and use
7. OEM capabilities, extended parameter measurement and customized communication protocols optional
8. Optional GPS integration
9. Highly suitable for wind power generation and meteorological observation
Specifications
| Principle | Semiconductor Bandgap Principle Capacitance Variation Principle Piezoresistive Effect in Single-Crystal Silicon Ultrasonic technology |
| Wind Speed | Range: 0-75m/s Accuracy: ±0.3m/s @ 0-10m/s, ±3% @ 10-30m/s, ±5% @ 30-75m/s Resolution: 0.01m/s Response time: 0.25s |
| Wind Direction | Azimuth Range: 0-360 degrees Accuracy: ±3° (When wind speed＜10m/s) Resolution: 0.1° Response time: 0.25s |
| Air Temperature | Range: -40~85℃ Accuracy: ±0.3℃@25℃ Resolution: 0.01℃ |
| Air Humidity | Range: 0-100%RH Accuracy: ±3%RH (10%-90%RH, No Condensation) Resolution: 0.01%RH |
Atmospheric Pressure | Range: 500-1100hPa Accuracy: ±0.5hPa (25℃, 950-1100hPa) Resolution: 0.1hPa |
| Working Temperature | -40℃~80℃ |
| Output | RS485 communication, Modbus protocol |
| Protection Level | IP65 |
| Power Supply | DC 9-24V |
| Dimensions | 244.4H*116W (mm) |
