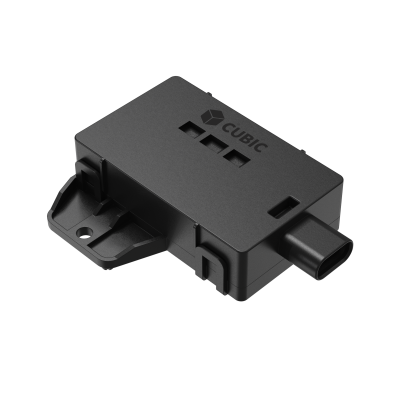

Automotive R290 Refrigerant Leakage Monitoring Sensor AM4206
- 30000 Piece / Pieces per Month
- T/T L/C PayPal D/P Western Union
You May Like
-
Compact Weather Station WSD-05M
-
Desktop CO2 Sensor and Monitor AM7000 For Real-Time Indoor Air Quality Monitoring Carbon Dioxide Home Monitor CO2
-
Real Time Data Wall Mount CO2 Detector Meter Carbon Dioxide HVAC CO2 Sensor and Controller For Indoor Air Quality
-
Cubic Lambda Wideband Sensor 5-Wire Oxygen O2 Sensor LSU4.9 High Quality Air Fuel Ratio Sensor
-
High Performance 5 Wire Oxygen Sensor O2 Sensor for Vehicle Exhaust System
-
Cubic Factory Supply High Quality Auto Parts NOX Sensor Nitrogen Oxide Sensor
Product Details
| Brand Name | Cubic | Place of Origin | China | |
| Model Number | AM4206 | Measurement Range | 0~100%LEL | |
| Resolution | 0.1%LEL | Lifetime | 15 years |
Product Description
Introduction
Cubic AM4206 is an automotive R290 refrigerant leakage monitoring sensor based on Non-Dispersive Infrared (NDIR) technology, specifically designed for detecting R290 gas leaks in automotive HVAC systems.
AM4206 can continuously monitor R290 refrigerant leaks in real-time and promptly generate alarm signals via LIN communication. Based on reliable dual-beam design and smart auto baseline mechanism, AM4206 can achieve long-term stability, rapid detection and less gas cross interference, providing an effective and robust solution for safety monitoring, in response to the implementation of EU F-gas Regulation.
Features
1. Dual beam Non-Dispersive Infrared (NDIR) technology, robust detection
2. Wide measurement range up to 0~100% LEL
3. Optional Built-in heater to avoid condensation and frost
4. Less cross-interference with other gases
Specifications
| Working Principle | NDIR Technology |
| Measurement Gas | R290 |
| Measurement Range | 0~100%LEL |
| Measurement Accuracy | ±2.5%LEL @0%~25% LEL; ±10% of reading @25%~100% LEL |
| Average Working Current | Heater off ≤50mA; Heater on ≤350mA |
| Resolution | 0.1%LEL |
| Response Time | ≤15s @25%LEL (compliance with UL 60335-2-40 4th) |
| Working Condition | -40~+95℃, 0-99%RH (non-condensing) |
| Storage Condition | -40~+110℃, 0-99%RH (non-condensing) |
| Working Temperature | -40~85℃ |
| Working Voltage | DC 9~16V, 12V standard voltage |
| Lifetime | 15 Years |
| Communication | LIN |
