Grouting recorder is an automated monitoring system used in water conservancy and hydropower grouting construction. Its function is to collect grouting process parameters such as grouting pressure, flow rate, density, and lifting through the grouting automatic recorder during the grouting process, and display these collected parameters on the grouting automatic recorder. Because grouting engineering is an underground concealed project, the application of instruments is mainly to improve the efficiency of grouting engineering work, reduce the factors of inaccurate and false human records, and thus help ensure the quality of grouting engineering.

Instrument Name: Grouting Recorder

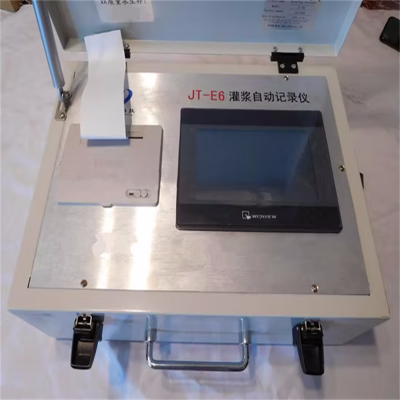

Instrument model: JT-E6 (English version)
Product Introduction
The grouting recorder integrates microcomputer technology processing, a seven inch true color touch screen, parameter display, setting, and printing functions. It can record the flow rate, pressure, density, and time during the grouting process without the need for buttons or a mouse, making it simple and intuitive. Parallel port printers can be used on-site for printing, and data export and archiving with USB drives are also supported. The grouting automatic recorder is available in two models: one trailer and one trailer. Suitable for curtain grouting, karst grouting, compaction grouting, double liquid grouting, consolidation grouting, backfill grouting, joint grouting, anchor grouting, high-pressure rotary jet grouting, multi head small-diameter deep mixing piles, highway maintenance grouting and other series of grouting processes.

performance parameter
1. Power supply voltage: AC220V ± 10%
2. Suitable temperature: -40~60 ℃
3. Working humidity: ≤ 90%
4. Host accuracy: 0.05%
5. LCD screen: seven inch true color touch screen
6. Channel configuration: One to Two
7. Host size: 42.5cm * 30.5cm * 15.5cm
8. Host weight: 8.4Kg
9. Standard flow rate: range 0-150 L/min, resolution 0.01L/min (accuracy 0.5%, can be customized according to customer requirements)
10. Standard pressure: range 0-10 MPa, resolution 0.01 MPa, accuracy 0.5% (can be customized according to customer requirements)
11. Standard density: range 0-2.5 g/cm3, resolution 0.01g/cm3, accuracy 0.5% (can be customized according to customer requirements)
Product Features
1. Widely used in various grouting processes such as curtain grouting, karst grouting, consolidation grouting, high-pressure rotary jet grouting, GIN grouting, prestressed grouting, and simple water pressure, conventional water pressure, five point water pressure, punching, etc;
2. Adopting an integrated design, the key components of the instrument are made of imported electronic components, which can effectively prevent moisture, dust, shock, and electromagnetic interference. It is equipped with a built-in stabilized power supply and suitable for construction sites with scattered workfaces and harsh environments, such as tunnels, subway entrances, etc;
3. Supports 1 channel and 2 channels, with options for two parameter small loop, two parameter large loop, three parameter small loop, and three parameter large loop. The software automatically recognizes them without the need to change settings;
4. The interface adopts a 7-inch LCD screen display, full English prompts, and can query historical grouting records;
5. Real time display of all grouting parameters for two grouting channels on the same screen;
6. Data automatic power-off protection, work can be restored upon incoming call.
