Home > Products > Insulated glass > Float Insulated Glass
Float Insulated Glass
- 80000 Square Mile / Square Miles per Month
- Shanghai
- T/T L/C PayPal D/P Western Union Other
- 7 days
You May Like
Product Details
| Shape | Curve, Flat | Function | Acid Etched Glass, Bulletproof Glass, Decorative Glass, Heat Absorbing Glass, Heat Reflective Glass, Insulated Glass, Low-E Glass | |
| Type | Float Glass | Structure | Hollow, Solid | |
| Technique | Clear Glass, Coated Glass, Figured Glass, Frosted Glass, Laminated Glass, Stained Glass, Tempered Glass, Tinted Glass, Wired Glass |
Product Description

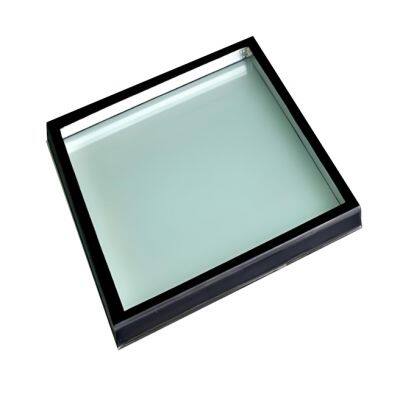

Float Insulated Glass
Float Insulated Glass is a high-performance glazing solution composed of two or more glass panes separated by a spacer and sealed to create an insulating air or gas-filled cavity. The glass panes are typically made using the float glass process, ensuring high clarity and uniformity.
Float Insulated Glass Technical Specifications
Parameer | Specification |
Glass Type | Float Glass (Clear, Low-E Coated) |
Glass Thickness | 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 19mm (Customizable) |
Spacer Thickness | 6mm, 9mm, 12mm, 15mm, 16mm, 20mm, 24mm, 27mm (Aluminum/Stainless Steel/Warm Edge Spacer) |
Gas Filling | Air / Argon (≥90% purity for better insulation) / Krypton (for high-performance) |
Thermal Conductivity (U-value) | 1.0 - 2.8 W/m2·K (Depending on glass & gas type) |
Sound Insulation (Rw) | 30dB - 45dB (Varies with glass thickness & spacer design) |
Visible Light Transmittance | 70% - 90% (Clear Glass), Adjustable with tints/Low-E coatings |
Solar Heat Gain Coefficient (SHGC) | 0.25 - 0.80 (Depends on coatings & glass type) |
Dew Point | ≤ -40°C (Ensures no internal condensation) |
Maximum Size | Up to 3000mm × 6000mm (Custom sizes available) |
Sealant | Dual-seal system (Butyl + Polysulfide/Silicone) for long-term durability |
Standards Compliance | GB/T 11944 |
Applications | Windows, Curtain Walls, Doors, Skylights, Energy-efficient Buildings |
Additional Features (Optional) Laminated/Tempered Glass – Enhanced safety & impact resistance. Low-E Coating – Improves thermal insulation & UV protection. Warm Edge Spacer – Reduces heat loss at edges for better performance. | |
Xingchen Dahai (Hubei) Glass Co., Ltd.
Professional Insulated Glass Solutions Provider
We specialize in providing high-performance insulated glass for system window and door manufacturers, engineering projects, distributors, traders, and end consumers. Our product offerings include:
① Energy-saving (Low-E coating, Argon-filled) — Reduce energy consumption and improve building insulation
② Safety (Tempered laminated, Explosion-proof glass) — Impact-resistant and explosion-proof to ensure building safety
③ Soundproofing (Triple glazing, PVB laminated) — Effectively reduces noise for a quiet and comfortable environment
④ Smart (Electrochromic, Thermochromic glass) — Dynamic light control to meet the needs of intelligent architecture
Applications: Curtain walls, system doors & windows, rail transit, electronic displays
Core Supply Chain Advantages
① 5,000 tons in stock — Direct shipment from Hubei warehouse, fast response
② 30% faster delivery — Quicker than industry standard to ensure project timelines
③ Advanced customization — Flexible solutions tailored to various engineering requirements
Efficient Supply | Strict Quality Control | On-Time Delivery
