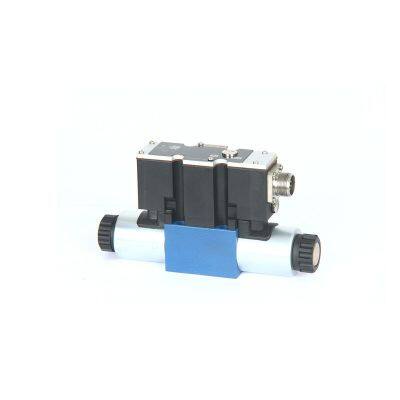

Rexroth 4WRAE Proportional Directional Hydraulic Valve
- 0 per Month
You May Like
-
Flow Control Valve Rexroth Valve
-
Rexroth ZDB6VP2-4X/200V Hydraulic Pressure Control Relief Valve
-
Rexroth Hydraulic Axial Piston Pump A10VSO100DFR/31R-PPA12N00
-
Rexroth 4WREE6 EA16-2X/G24K31/F1V Hydraulic Safety Proportional Valve R900973289 for High Temperature Oil General Application
-
High-quality Rexroth Hydraulic Control Solenoid Valve 4we
-
Rexroth Proportional Valve 4WREE6E1-32-23/G24K31/F1V Rexroth Valve
Product Details
| Brand Name | Rexroth | Type | Hydraulic Power Units | |
| Warranty | 1.5 years | Showroom Location | None | |
| Structure | hydraulic | Weight | 5 | |
| Power | 30 | Dimension(L*W*H) | 10*5*20 | |
| Valve type | Explosion isolation valve | Maximum pressure | 30 | |
| Maximum Flow Rate | 30 | Condition | New | |
| Spool control form | Direct actuated proportional valve | Control content | Control the direction and flow | |
| Coil | Removable coil | Connection method | Board connection | |
| Spool centering method | Spring centred control spool | Magnifying board | With built-in amplifier board | |
| Hysteresis | ≤5 | Reverse error | ≤1 |
Product Description
Product Introduction
Proportional valve is a new type of hydraulic control device. In the ordinary pressure valve, flow valve and directional valve, the proportion of electromagnet instead of the original control part, according to the input electrical signal continuously, in proportion to the flow of oil pressure, flow or direction for long-distance control. Proportional valves are generally pressure compensated, and the output pressure and flow can be unaffected by load changes.
|
Pressure adjustment |
315bar |
|
Material |
Cast and carbon steel |
|
Color |
Blue or black |
|
Maximum flow |
170/460/870/1600L/min |
|
Weight |
7.4/12.7/17.5/41.8/7.8/13.4/18.2/42.2KG |
|
Maximum switching frequency |
15000 |
|
Service |
OEM |
|
Viscosity range |
2.8 … 500 [35 … 2320] mm 2 /s [SUS] |
|
Hydraulic fluid temperature range |
-30 to +80(-22to+176)(NBR seals) –15 … +80(–4 … +176)(FKM seals) |
Woring principle
With the solenoids (4) de-energised, the control spool (2) is held in the central position by compression springs (3). Direct actuation of the control spool (2) by energising a proportional solenoid.E.g. controlling of solenoid "b" (4).The control spool (2) is moved to the left in proportion to the electrical input signal.Connection form P to A and B to T via orifice-like cross sections with progressive flow characteristics. De-energisation of the solenoid (4).The control spool (2) is returned to the central position by compression spring (3).
Packaging
1 >Standard export packaging
2 >We will use standard export package if no special requirments , but it is availible to provide colourful package according to your design or we make design for your brand if required.
Our Services
1.High quality and competitive price ;
2.Standard packing and timely delivery ;
3.We supply original product ;
4.Experienced supplier for more than 10 years;
5.Warranty half year;
6.Free and professional technical support for 24 hours.
Company Information
Chengdu YiYu Technology Company combines the design, manufacture, installation,debugging and maintenance.The products are mainly all kinds of hydraulic system,hydraulic cylinder and lubrication system, such as : hydraulic system,lubrication system, electronic control system, hydraulic cylinder,pump,valve,oil cylinder,motor,joint,pipe,sensor,power units,relay,seal rings etc.The high professional team worker, high quality products,advanced management and the consummation post-sale service to make us on the top of the business.
FAQ
Q: Are you trading company or manufacturer ?
A: We are trading company.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you have any guarantee on the quality of your valves?
A: As long as the valves are from Chengdu Yiyu technology company, we promise that the minimum period quality assurance is one year. If the products have any problem on quality within this period, we all provide exchange service. If they have been installed, inconvenient to be exchanged, we will provide technical personnel to help solve the problem.
Q:If we have a large quantity of valves, can you give us a discount?
A: We provide unified wholesale price to customers. No matter you buy one or hundreds of valves, we try our best to give you benefit, because we want to establish long-term cooperation relationship with you.
Company Profile
Hunan Shanbu Zhuanshui Zhuan Power Technology Co., Ltd. is a trading company specializing in mechanical and electrical automatic control products, pneumatic spare parts, and automation instruments. The company has high-quality product quality, broad market prospects, humanized company management, strong price advantages, and high-quality pre-sales and after-sales services. Pursuing and daring to innovate is our unwavering philosophy. Cooperation and creating brilliance together are our goals of struggle! Our unremitting pursuit is to always provide customers with satisfactory new products based on honesty and integrity; Continuously providing thoughtful service to customers is our unchanging goal.Adhering to the business philosophy of "integrity, efficiency, win-win, innovation, and development", we have built a comprehensive business platform, with pneumatic, electrical, and instrumentation as the breakthrough points. With years of accumulated customer foundation, relying on strong competitive brand support, excellent product quality, good industry reputation, and thoughtful pre-sales, in sales, and after-sales services, we provide enthusiastic, thoughtful, and meticulous services for rapidly developing Chinese enterprises Professional services. We are a trusted partner for numerous industry clients in China.Our products are widely used in industries such as petroleum, textiles, pharmaceuticals, metallurgy, machinery, electronics, mining, chemical building materials, electricity, energy, metallurgy, chemical, automotive manufacturing, machine tools, packaging machinery, construction, etc., and enjoy a good reputation both inside and outside the industry. The company has won the trust and appreciation of many customers with the business philosophy of seeking truth from facts, small profits but quick turnover, and good quality and reasonable price.The operating brands include: 1. Motors: Siemens, SEW, ABB, WEG, German Danfoss bauer, BAUER, 2. Frequency converters: Siemens, Yaskawa, ABB, Fuji, Mitsubishi, Huichuan, INVETON; 3. Sensor category: 1. BANNER, Turck, HYDAC, PF, MTS, hydraulic category: Dr. Rexroth, Parker Hannifin, Eaton Wigs, Hawe, 5. Valve category: Siemens, Fisher, Samson, Yamamoto, 6. Flow meter and instrument category: Emerson Rosemount, Yokogawa, EH, ABB, and Hash instruments; 7: Cylinders and solenoid valves include: Norgren UK, SMC Japan, FESTO Germany, ASCO;
