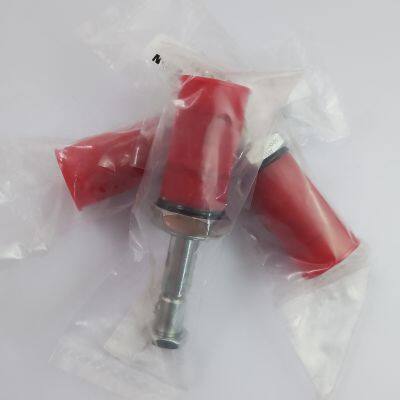

Vickers Screw-in Cartridge Valves 406AA00033A 1CEB300F35S3

whatsapp:+86 19118804277 Email:19118804277@163.com

MODEL OPTIONS:

Vickers Screw-in Cartridge Valves 406AA00033A 1CEB300F35S3

Product Introduction

1CE20 is a threaded plug-in standard balance valve series, which has three oil ports and can be controlled by an external pilot.

Operational principle

In the balance valve, pressure oil can freely flow into the load port from the valve port and stop the reverse flow of hydraulic oil. When the hydraulic oil tends to flow in the opposite direction from the load port to the valve port, the hydraulic oil can only flow smoothly when a large negative number at least 1.3 times is preset, or when a certain pressure is established at the pilot oil port.

Rated parameters and technical specifications

The relevant parameters are based on: oil temperature=40 ℃ viscosity=40cSt

Rated flow rate: 20L/min

Large load balancing pressure: 270bar (4000psi)

Overflow valve set with high pressure: 350bar (5000psi)

Insert material: The working component is steel that has been ground and quenched (with galvanized outer surface)

Valve body material: aluminum (with a pressure resistance of 210bar); Steel (with a pressure resistance of 350ar)

Installation location: No restrictions

Attention

Adjusting the pressure to over 350bar (5000psi) may damage the valve body.

It is recommended to use a steel valve body for pressure applications exceeding 210bar (3000psi).

Models such as:

1CE20 standard balance valve - pilot assisted balance valve Å 1

1CE30 standard balance valve - pilot assisted balance valve Å 3

1CER30 partial balance valve - pilot assisted control Å 5

1CEB30 exhaust type balance valve - pilot assisted control 7

1CEL30 dual stage fine adjustment balance valve - pilot assisted control Å 9

1CPB30 exhaust differential balance valve Å 11

1CPBD30 differential balance valve with oil drain 13

1CE90 standard balance valve - pilot assisted balance valve 15

Pilot assisted control of 1CER90 partial balance valve Å 17

1CEB90 exhaust type balance valve - pilot assisted control 19

1CEBD90 balance valve with drain port - pilot assisted control 21

1CEL90 dual stage fine adjustment balance valve - pilot assisted control Å 23

1CPBD90 differential balance valve with oil drain port Å 25

1CE120 standard balance valve - pilot assisted balance valve 27

1CEB120 exhaust type balance valve - pilot assisted control 29

1CEBD120 balance valve with drain port - pilot assisted control 31

1CPBD120 differential balance valve with oil drain 33

1CE140 standard balance valve - pilot assisted balance valve 35

1CER140 partial balance valve - pilot assisted control Å 37

1CEL140 dual stage fine adjustment balance valve - pilot assisted control Å 39

1CE300 standard balance valve - pilot assisted balance valve 41

1CEB300 exhaust type balance valve - pilot assisted control 43

1CEBD300 balance valve with drain port - pilot assisted control 45

1CPBD300 differential balance valve with oil drain 47
