Laboratory Ultrapure Water Machine-Model LTM

LTM20I Laboratory Ultra-Pure Water System

Product Overview

Key Features? 7-Inch Touch Human-Machine Interface with Dual Water Intake Modes

• A design with both mechanical and touch-based water intake methods for flexible operation.

• Real-time monitoring of RO conductivity, UP resistivity, and water flow.

• Stores water intake records, water quality data, and equipment alarms for traceability.

? Advanced Dual-Stage RO Filtration

• Dual-stage membrane system: First-stage recovery >30%, second-stage reuse for higher efficiency.

• Proprietary RO membrane with ≥99% desalination rate, anti-pollution coating, and long service life.

• Terminal 0.22μm bacterial filter ensures particle count

? Sterile Water Storage & Optional Upgrades

• Mirror-finish stainless steel sterile tank (15L capacity) with built-in UV sterilizer (microbial count<0.1CFU/ml).

• Optional features:

• 185/254nm dual-wavelength UV for TOC reduction (≤2ppb under specific conditions).

• Leak detection alarm for enhanced safety.

? Smart & Customizable Operation

• Targeted water intake by quality: Set target resistivity (≥18.2MΩ?cm) for automatic stop when reaching the standard.

• Quantitative water intake: Preset volume options + custom input for personalized usage.

• Automatic RO membrane flushing and UV sterilizer cycle cleaning.

? Compact & Reliable Design

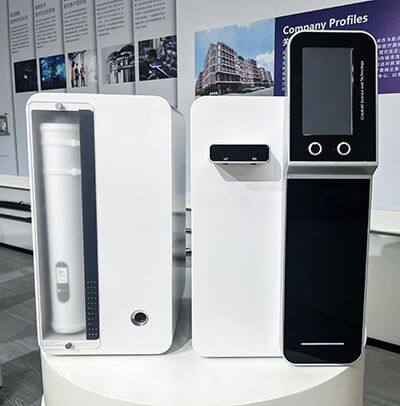

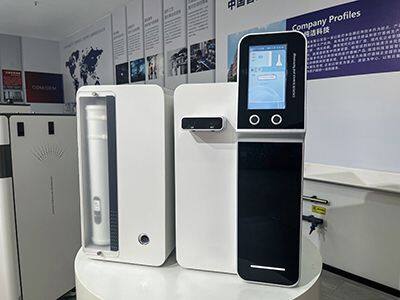

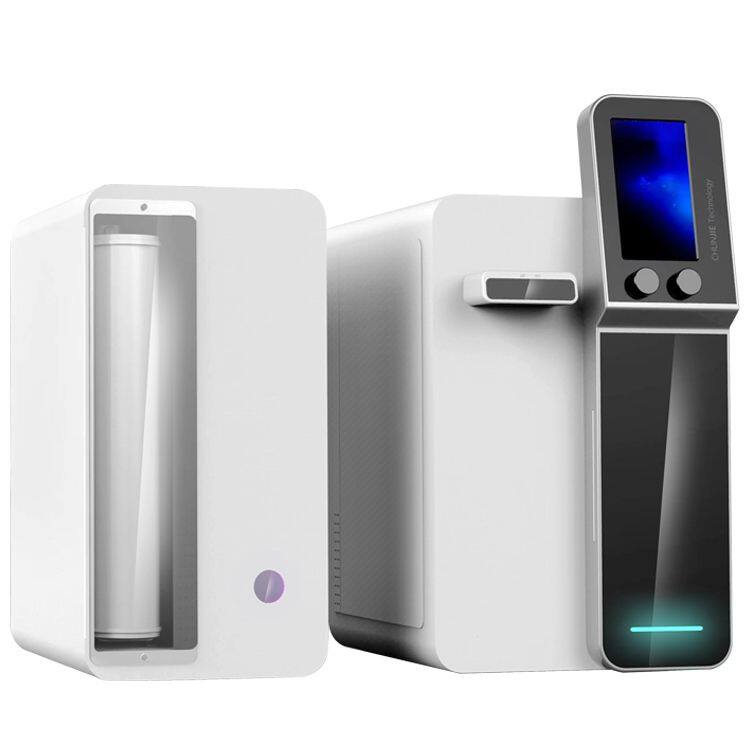

• Split-type structure: Main unit (337×450×628mm) fits on lab benches; tank (200×360×482mm) stores in cabinets.

• Disposable consumables for tool-free replacement, minimizing downtime.

• High-quality pipe fittings ensure leak-free operation and long-term stability.

•


Technical Specifications1. Inlet Water Requirements

2. Pure Water (RO) Output

3. Ultra-Pure Water (UP) Output

4. Flow Rate & Power

5. Installation Environment

6. Dimensions

Compliance Standards

• CE Certification (for safety and electromagnetic compatibility)

• College of American Pathologists (CAP): Class I

• Chinese National Standards: GB/T 6682-2008 (Grade I & III), GB/T 33087-2016

• Chinese Clinical Standards: WS/T 574-2018 (Purified Water)

Applications

• Molecular biology (PCR, sequencing, cell culture)

• Analytical instruments (HPLC, GC-MS, ICP-MS)

• Pharmaceutical reagent preparation

• Clinical diagnostics and medical device testing

Package Includes

• 1× LTM20I Main Unit

• 1× 15L Stainless Steel Sterile Tank

• Power Adapter (220V, grounded)

• English User Manual

• CE & Quality Certifications

Benefits

1. Rigorous Purity: Ultra-pure water with resistivity ≥18.2MΩ?cm and optional low RNase/DNase/endotoxin levels.

2. Smart Control: Touchscreen interface with customizable water intake and real-time monitoring.

3. CE Certified: Compliant with European safety and quality standards for global use.

4. Space-Saving: Compact design fits small labs while offering large 15L tank capacity.
