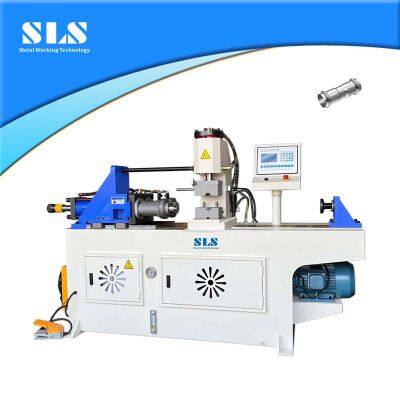

Automatic Hydraulic Pipe End Forming Machine for Copper Pipe End Reducing

8

Automatic Hydraulic Pipe End Forming Machine for Copper Pipe End Reducing

Brief Introduction on Pipe End Forming Machine

SLS TM-40CNC Type Two-Station Pipe Tube End Forming Machine.Machine Processing Of Pipe Diameter Reducing - 2 Station Pipe End Reducer Machine, It Is The Most Common Method For Manufacturing The Steel Pipe Reducer. Complete Reducing Machine To Make Tube Connections Quick And Easy. End Reduction - Tube End Reducing Is A Process That Reduces The Outside Diameter (OD) Of The Tube. Typically This Is Done So That The Reduced End Will Fit Into The Inside Diameter (ID) Of The Same Tube Or Fit Into Some Kind Of An Opening. Our Ram Style Of End Forming Is Created By Forcing A Dedicated Die Over The End Of The Tube And Then Retracting The Die Back Off The Tube. The Die Is Designed To Achieve The Proper OD And Length Of The Reduction And Will Only Create The OD The Die Is Designed For.

Features on Pipe End Forming Machine

●Easy Access to Auto and Manual Operating Modes.

●All the parts are made under very strict quality control, so the quality of machine is in high level and the specification is standardized.

●Equipped with emergency stop device. Both manual and automatic operations are available.

●Tube clamping and end forming driven by hydraulic.

●Suitable for The Shrinking for Various Metal Pipes with Different Material and Different Shape.

●The design of the tooling help customer easy to change.

●Forming Shapes Can Be Convex, Concave, Sectional, Long & Flat, Square, V-Shape, Open Elbow, Flat Elbow...Etc.

●Foot Pedal Cycle Start.

●Water cooling system ensures the equipment long-time work stably under the high temperature.

●Optional:An Additional Feeding System Can Be Added to The Machine. The Operating Security Is Greatly Increased.
●Because The Operators Just Do The Unloading & Collecting Job of Finished Pipes.

●Optional:Multi Station Can Be Added to The Machine Based on Detailed Forming Requirement.

●Optional: Multi Station Shifting Can Be Chosen As Servo(Electrical) or Hydraulic Control.

●Optional: Double Head Can Be Added to The Machine Based on Detailed Forming Requiremen.

●CE&ISO 9001:2000.
