High Efficiency Crushing Plant Mobile Jaw Crusher Station NK75J for Mining Industry Work

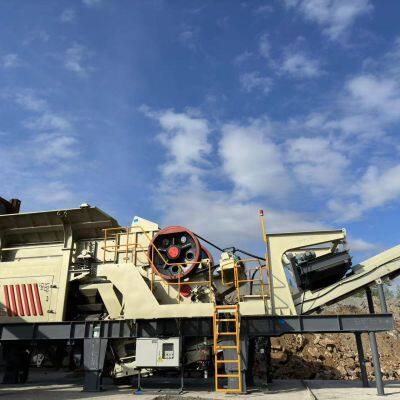

Mobile Jaw Crusher Station NK75J includes vibrating feeder FK0936, Jaw crusher PE750x1060, self- unloading iron remover RCYD(C)-8, vehicle-mounted belt conveyors, hydraulic system, Lubrication system, Siemens PLC, Siemens HMI, electric control system, motor and vehicle. (Equipped with automatic grease adding device)

PE750x1060 Jaw Crusher is an integrated design of the motor and the main machine, which effectively prolongs the service life of the V-belt; and is equipped with an automatic grease adding device (controlled by Siemens PLC), eliminating the need for workers for each work shift (8-12 hours) The cumbersome and instability of manually adding grease;

Rubber shock absorbers are designed between the main body of the jaw crusher and the vehicle frame, which can effectively reduce the impact and vibration of the vehicle frame when the equipment is running. It is equipped with a self-unloading iron separator (electric) to prevent iron pieces (such as the teeth of forklift) from entering the vibrating screen or crusher.

Mobile jaw crusher NK75J is equipped with Siemens PLC automatic control system, Siemens touch screen (HMI) and soft starter as standard, which can realize one-key start Stops and automatically shuts down in case of failure. The above device is the standard configuration of our NK mobile crushing station, and we are the only one among the Chinese tire-type mobile crusher manufacturers.

Deep cavity crushing, the output and crushing ratio are excellent, the length of the fixed jaw plate is increased, the effective crushing length is increased, and the proportion of fine materials is increased. The crushing cavity of PE750x1060 jaw crusher is about 22cm deeper than that of other manufacturers’ crushers of the same model

Heavy-duty eccentric shaft, made of 40Cr. It has a larger diameter and a larger movable jaw stroke. Bearings are heavy-duty bearings with stronger impact resistance

The quality is stable, and there is no need for major repairs within 8000-12000 hours.

There are no solder joints of any kind on the side plate, which avoids the hidden danger of cracking caused by welding stress.All cross members and side panels are connected by high-strength bolts to realize modular assembly.

No rotary moving parts, easy and reliable operation and maintenance. It is equipped with Italian brand-Oli Wolong vibration motor as standard, with a maximum vibration intensity of 4.0G, and the maximum processing capacity of the same specification is more than 20% higher than that of the TSW feeder. Standard NSK/SKF bearings. Simply grease the vibration motor regularly every 2000 hours.
