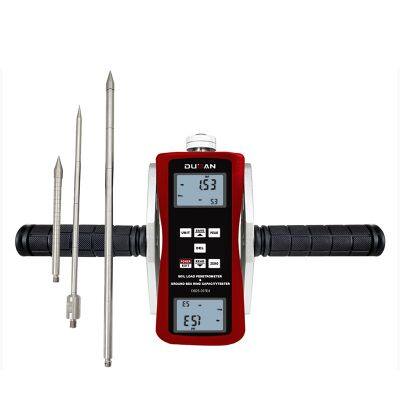

SOIL LOAD PENETROMETER & GROUND BEARING CAPACITY DETECTOR DB25-207DJ

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	DUBAN		Place of Origin	China
Model Number	DB25-207DJ

【Product Descriptions】
Universal type penetrometer is based on the geotechnical experiment: the penetration of soil and the dry density of soil,
the relationship between the relationship between the penetration and water content of soil and the relationship between soil water volume and compactness, through a lot of penetration and ring cutting parallel contrast test And establish the regression equation, the rate of penetration resistance between the dry density and the related data sheet. By measuring the penetration resistance and looking up the table, the dry density
can be quickly obtained, and then the compaction coefficient can be quickly calculated. Two, main technical parameters

【Product Features】

* High accuracy and high resolution.

* With 4 measurement unit for selection and conversion, kgf, gf, N, Lbf

* With peak value hold function.

* can memorize 99 groups of data.

* Digital display with no guessing or errors.

* With 10 minutes auto power off and manual power off.

* Either alkaline battery Power supply or 5V DC power.

* Use USB cable or Bluetooth adapter for data output.

【Product Specifications】

Measuring range	0kg-100kg (0N-1000N)
Test depth	0cm-30cm
Material tested	all kinds of backfill soil, clay, sand and mixed soil after rolling
Application environment	highway, railway, reservoir, dike, dam and civil building, etc
Power	2 AA batteries(5 V dc matching)
Accuracy of the test	≤0.25%
Weight (excluding battery)	instrument 415g, handle 295g,proberod 380g.
