Home > Products > Gem equipment > Jewelry machinery and equipment, 3 motors CNC machine
Jewelry machinery and equipment, 3 motors CNC machine
≥2 Bag
- 999 Bag / Bags per Month
- Guangzhou
- PayPal D/P
- 30 days
You May Like
-
Stone processing machines and equipment, cutting surface grinding and polishing machines
-
CNC Computer CNC Machinery for Cutting
-
CNC face cutting machine for color gemstones-Jewelry machine - Gem machine - Jade bracelet face Angle equipment - ring billet forming machine
-
Jewelry processing machinery and equipment - shaping, molding, molding and ring molding machine
-
CNC face cutting machine for color gemstones
-
Gem engraving millennial machine - concave Angle machine
Product Details
| Brand Name | Xiongxing | Place of Origin | China | |
| Model Number | XX-380D | After-sales Service Provided | No overseas service provided | |
| Condition | New |
Product Description

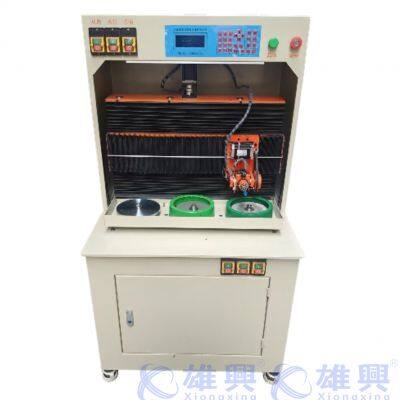

Name:Xiongxing Gemstone Cutting Surface CNC Machine (Rough Grinding+Fine Grinding+Polishing)
No. 810501888 Model XX-380D
Steps to use.
Menu→Gemstone type selection→Select round→Parameter view and modify the parameters of the top surface→Grinding parameters of the first layer of parameters open→Operation mode open→Select the start→Y1 parameter selection rules batch input→Input the number of board bits 8→Confirm the batch input
1 engineer can operate 2 machines
Parameters |
Model: XX-380D |
Rated voltage: AC 220V/380V |
Spindle speed: 2800 r/min |
Output power: 250W |
Appearance size: 80*76*150cm
|
Processing size: 3-50mm |
Number of preserved forms: 120 |
Shapes: round, oval, square, rectangle, triangle, pear, heart, teardrop, horse's eye. Other customized shapes, etc. |
Processing time: 2 minutes/1 piece |
English language: switchable |
Diameter of loaded grinding disk: 6 inches 150mm |
Equipment weight: 150kg |
CNC type faceting machine processing sequence:
Pre-type out of the embryo: cutting → shaping → blank punching → blank → follow-up to do angle
Embryo→glue stone→ring type→frontal facet grinding→frontal facet polishing→turning and gluing gemstone→backside grinding→backside polishing→removing glue and cleaning
CNC faceting machine configuration:
Cutting machine → shaping machine → CNC faceting machine
