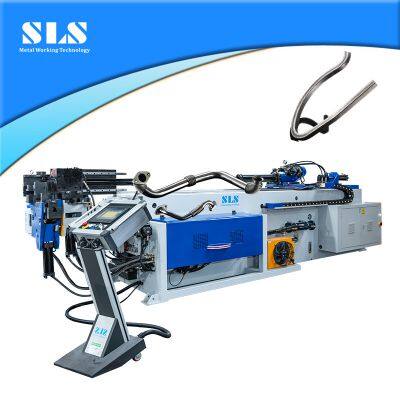

Electric Servo 3D CNC Hydraulic Full Automatic Steel Round Square Tube Pipe Bending Machine Pipe Tube Bender with Mandrel Push Rolling

Electric Servo 3D CNC Hydraulic Full Automatic Steel Round Square Tube Pipe Bending Machine Pipe Tube Bender with Mandrel Push Rolling

Brief Introduction on CNC Pipe Tube Bender

SLS automatic pipe bending machine services for fully automatic bending process for round tubes and other profile only by change tools with  same machine.

It can be used for bending profiles or hollow sections made of carbon steel, aluminum, stainless steel or other kinds of metal material in different industrial application.Two types are flexible provided for chose, economical type which software controlled by PLC+Touch screen, another advanced type which controlled by IPC+Touch screen with advantage of graphic 3D simulation of whole bending process.

Our CNC tube bending machine is designed for multiple tools mounted on machine head to realize different radii bending at the same time.The function can flexible applied as as drawing bending,push roll bending or draw bending together with rolling to meet different bending requirements on same machine.

We also provide service to customized bending machine design and manufacturing for special product&industry. Tube bending is often combine with other tube processing ways to increase the working efficiency without reduce the quality and precision. One stop pipe processing solution opens the win-win advantage.

Features on CNC Pipe Tube Bender

• ● PLC or IPC controlling offers easy access to auto and manual operating modes.

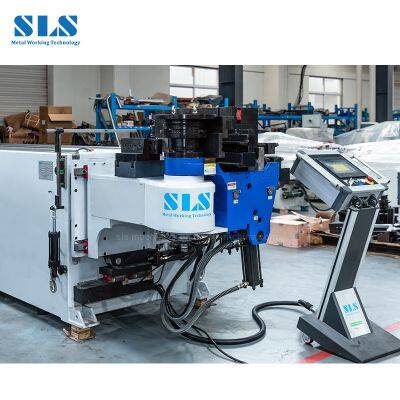

• ● Machine equipped with two stacks tool with different radius bending function.

• ● System diagnostics and multiple language capability.

• ● Standard clockwise bending direction.

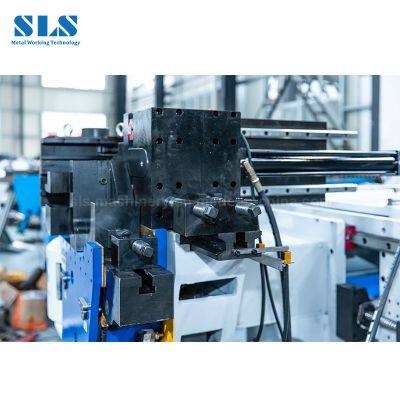

• ● Hydraulic clamping on clamp die and pressure die.

• ● System diagnostics and multiple language capability.

• ● Standard clockwise bending direction.

• ● Hydraulic clamping on clamp die and pressure die.

• ● With independent programmable speed on bending,feeding,rotating,demoulding axis.

• ● Programmable material spring back settings for each bend angle.

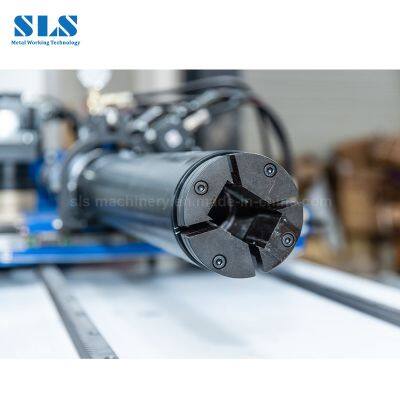

• ● Automatic release of tube clamping prior to final bend to prevent clamping on feeding dolly.

• ● Anticipated mandrel backward to guarantee bending quality.

• ● Foot pedal/touch screen control on machine start and stop to make machine working more flexibility.

• ● Automatic linear guide lubrication.

• ● With Air Cooling System or water cooling system.

• ● One set of Tooling

• ● Wiper die Bracket.

• ● CE&ISO 9001:2000

•
