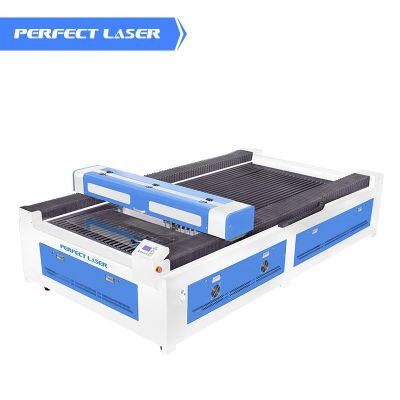

Perfect Laser carbon steel mild steel ss acrylic playwood MDF 300w metal non metal mixed laser cutter cutting machine

Product Introduction

Mixed  Co2 steel sheet cutter is a newly super technology, mainly used to cut  both metal and non-metal machine. The cutting thickness of this  industrial laser cutter can reach 1-2mm stainless steel, 1-3mm carbon  steel, 20-30mm acrylic, 10-20mm wood, 0-10mm MDF.
The  steel sheet cutter is a so good choice for user who has demand to cut  1-2mm thin metal material and thick non-metal materials by own this  industrial laser cutter. One machine can fulfill all your demand. Saving  much cost. It also can be called industrial laser cutter,MDF laser  cut,acrylic cutter,steel sheet cutter,metal plate cutter.

Product Features

1)  Mix Cutting: The metal plate cutter supports both metal and non-metal  Cutting, which can cut stainless steel, carbon steel, mild steel, also  can cut acrylic, wood, MDF, PVC board, paper, fabric, etc.

2) The metal plate cutter adopts 150w / 180w / 260w / 300w Laser Tube, high power, 10000 hours long life span.
3) Adopt Japan Imported Motor and Ball Screw Transmission Rod, with fast speed and high precision.
4)  This metal plate cutter adopts dynamic auto-focusing metal sheet laser  cutting head: When the metal sheet is not plain, the dynamic focus laser  cutting head can adjust the focusing distance automatically.
5)  Equipped with LCD Touch Screen+ USB port+ DSP Offline Control, which  make the metal plate cutter can not only work without computer, but also  connect to U disk, USB communication.
6)  LCD Control System own 128M Big Memory, which can store files in the  machine for engraving and cutting, compatible with AutoCAD, CorelDraw,  Photoshop and some other kinds of graph disposal software.
7)  This steel sheet cutter use imported high precision linear guide rail  and professional optical system, dust-proof and lubricate, which improve  the cutting quality and prolong machine lifetime.
8) Professional Strip work table: meets the needs of diversified laser procession;
9)  Water Cooling System with Alarm Protection, adopt CW-5000 or CW-6000  Water Chiller with temperature display, which can avoid over burning, to  protect the water circulation from electricity-off.
10)  Equipped with highly-qualified Consumables,USA original Focus Lens and  reflect mirror, steel sheet cutter makes high efficiency and steady.
11) Red Light Pointer realizes the exact position without laser.
12)  Matched Professional cutting software is particularly designed and  written for both metal and non-metallic cutting, with high  compatibility, support any computer operating system.
13)The steel sheet cutter can also called mdf laser cut, acrylic cutter.

Application

This  laser cutter and engraver is widely suitable for cutting both metallic  and non-metallic materials, such as: 1-2mm stainless steel, 1-3mm carbon  steel, 1-28mm acrylic, PVC, 1-10mm MDF, 1-15mm wood and bamboo  products, etc.

The  laser cutter and engraver is widely used in advertising field, signage  marking, electronics, mechanical parts, furniture, automotive, medical,  instrument, saw blades and many other metal and non-metal industries.

Technical Data
