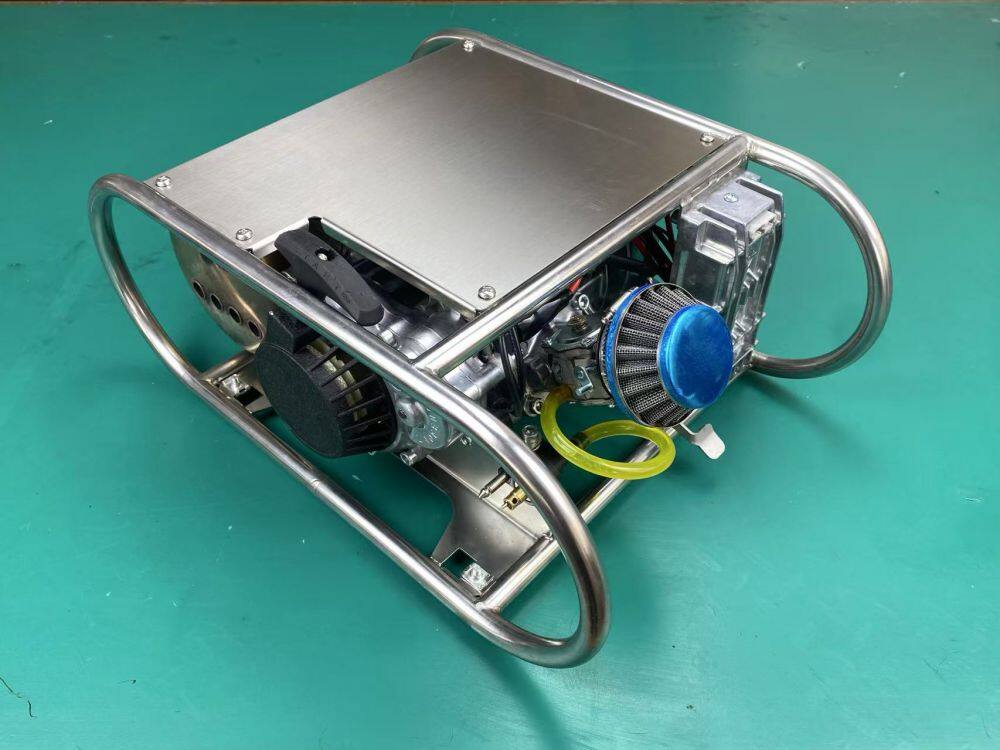

Forest Fire Pump
US$ 800 - 1600
/ Set
3 Sets(Min. Order)
- tianjin
- D/P
- 30 days
You May Like
Product Details
| Brand Name | Daosheen | Place of Origin | China | |
| Model Number | TW22B-5DS | Application | Fire | |
| Fuel | Gasoline | Power | Other, internal combustion engine | |
| Usage | Water | Theory | Centrifugal Pump | |
| Standard or Nonstandard | Nonstandard | Structure | Multistage Pump | |
| Pressure | High Pressure |
Product Description
Hand start and energy storage structure ensure that the water pump can be started at any time under extremely harsh conditions
Push-button start is the most convenient start-stop mode under normal conditions.
Magnetic induction start is suitable for ensuring normal start when there is a large amount of mud attached to the fuselage.
| Project | Configuration details | |
| 01. | Start mode: | induction magnetic control start, one button electric start, manual start; |
| 02. | Protection system: | It should have a triple protection system for overspeed, overheating, and dehydration; |
| 03. | Igniter Integration: | The digital DC igniter should be integrated with the overcurrent protector; |
| 04. | Cooling method: | closed circuit circulation, forced water cooling; |
| 05. | Water pump structure: | two-stage aluminum alloy impeller centrifugal pump; |
| 06. | Maximum range: | 33 m; |
| 07. | Maximum flow rate: | 4.2L/s; |
| 08. | Maximum head: | ≥ 200 meters, maximum pressure ≥ 2.0 Mpa; |
| 09. | Maximum suction depth: | ≥ 6m, single unit flat water transportation distance: ≥ 3000 meters; |
| 10. | Net weight of the whole machine: | ≤ 12 Kg; |
| 11. | Power generation voltage: | 12V-15V, should have charging function; |
| 12. | Display system: | display of working pressure, engine speed, and accumulated working time of the engine; |
| 13. | Working performance: | able to operate continuously for no less than 48 hours; |
| 14. | Operation test: | The pump should be able to operate continuously for no less than 1 hour under rated conditions with a horizontal and vertical inclination of 45 °, and should be able to work normally; |
| 15. | Fuel tank and external fuel tank: | with a volume of ≥ 9L and an independent refueling port, it can achieve non-stop refueling. |
| 16. | External dimensions: | 430mmx300mmx170mm |
| 17. | Appearance requirements: | Adopting a comprehensive reinforced protection framework to effectively protect the built-in engine and important components from damage, anti-corrosion, and scratch resistance. All castings have no obvious scars, bubbles, or sand holes on their surfaces. It should have a shock-absorbing support structure. |
| 18. | Water pump inlet size: | equipped with φ 38mm and φ 50mm interface; |
| 19. | The water pump can be connected in series: | The water pump can achieve unlimited series and parallel connection; |
