2021 New Cheap Construction Timber Beam H20 Wood Beam for Concrete Formwork

FOB Price

USD $6.50 - $6.60 / Forty-Foot Container

40 Forty-Foot Container(Min.Order)

Supply Ability 10000 Forty-Foot Container per Month
Port Qingdao
Payment TermsT/T L/C
Delivery Detail10 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Xinfushi		Place of Origin	China
Model Number	H20 0116

Product Description

H20 Timber Beam used in Construction

2021 New Cheap Construction Timber Beam H20 Wood Beam for Concrete Formwork:

Product Details

LAMINATED VENEER LUMBER

Specifications

:H20 beam /H16 beam

2.glue:WBP glue

3.size:200/160*80*1000-12000m

4.usage: for construction

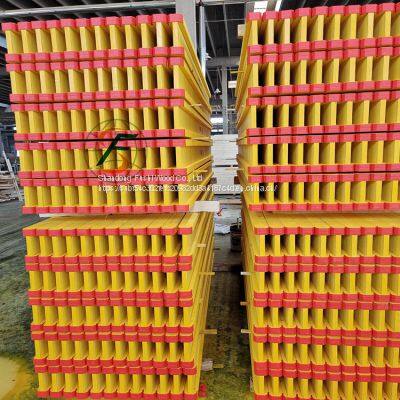

The H20 Beam

Beam

Wooden beam for formwork, consisting of an upper and lower wing and featuring a central section consisting of three layers. The union is designed as a notched and glued joint.

Heads

Fir wood of the highest quality, calibrated with levelled edges and with finger type joints along their length.

Webs

Of a three-layer board with a thickness of 27 mm.

Joint

Notched, finger-type joint between core and wings, throughout their length. High-frequency, high strength gluing.

Anti-humidity treatment

Protective paintwork throughout the beam.

Product Introduction

Lvl main features

Our products H20/H16 Formwork timber beam is composed by following parts:

1) Flange: LVL flange

2) Web: plywood or particle board or LVL web

3) WBP resin

4) Coating with yellow, waterproof; rot-proof and frozen-proof painting.

5) Ends are sealed to protect against moisture and ultraviolet light

Product Parameters

Product Name	solid wood for flange, poplar plywood for web H20 beam
Branding	XINFUSHI
Material	pine wood veneer.
Size Range	Flange:4080, web:27150mm
Tolerance	Thickness: ±1mm;Width: ±1mm;Length: -0/+3mm;
Glue	100% WBP phenolic glue
Moisture	below 12%
Port	Qingdao
Package	Standard export packing.Pallet with plastic and metal strips.
Apllication	Export packing,pallets(custom suffocating free), packing boxes etc.

Product Details Show

Advantages

H20 Beam is widely popular for good reason.

Strength and Safety

Dimensional stability and recovery capacity after application of load. High load capacity throughout their length. Protection against humidity, knocks and splintering.

Lightness

Easy handling and quick assembly. Minimum weight.

Economical

Can be used many times. Good ratio between price and uses. Easy storage.

Why Choose Us

Construction Formwork H20 Beam in Standard Size of 200mm Height is a Type of Plywood Formwork Timber Beams Used in Formwork System and Peri Form As Waler Beam and Concrete Slab I Beam for Slab Formwork System, Column Formwork System, Wall Formwork System and Beam Formwork.

Product Processing

Product Packing

FAQ1. Are you a trading company or a factory ?

A: Fushi Wood Group has a whooly owned factory.

Q2. What is your strength?

A: Fushi wood Group. firstly is a trading company, so has a professional team to serve for overseas customers. Meanwhile, Fushi has a wholly owned factory that engaged in production of kinds of high quality LVL.

Q3. What are your main products?

A:The main business of Fushi Wood is the exporting and importing of a variety of man-made boards. LVL, Plywood,MDF and Finger-jointed board, furniture, flooring, logs and other wood products etc.

Q4. Are the samples are available?

A: Yes, the sample is free and freight charge would be collected in your side. But after the order is confirmed, this freight charge could be deducted from the whole payment or another sample that you need could be sent to you next time and the freight charge will be paid by our side.

Q5. What is your quality guarantee?

A: We have 100% quality guarantee to customers. own factory has obtained the Carb certificate.FSC, SGS etc.
