Perfect Laser Sheet and Pipe Laser Cutting Machine 1000W Price/CNC Fiber Laser Cutter Sheet Metal

Product Introduction

Perfect  Laser, a professional fiber laser cutting machine manufacturer, with  good quality cutting machine equipment and quality service, get good  reputation in fiber laser cutting machine equipment industry.

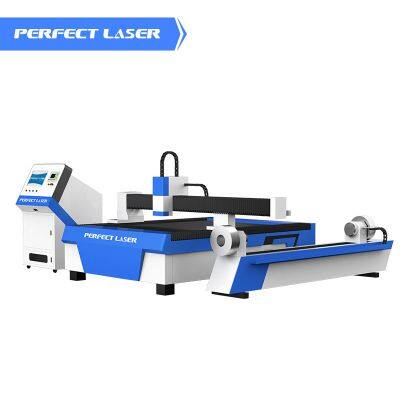

In  order to meet the needs of customers for cutting metal pipe and sheet,  Perfect Laser launched the muti-functional Metal Pipe and Sheet Fiber  Laser Cutting Machine(Model:PE- 3015B). This cutting machine is adopted  the Taiwan's screw guide, Panasonic servo and drive, the cutting machine  can improve the working efficiency greatly. And the pipe diameter of  cutting machine can up to 200mm (can be customized according to customer  needs ). Moreover, the cutting machine's design with rotary auxiliaries  can solve the technical problems for cutting pipe and sheet.

Product Features

1.The metal laser cutter's controller with a touch screen operating system:

Fiber laser controller installed on the computer (English version of Windows XP system);

Ytterbium laser cutting system, automatic optimized cutting path calculation, industrial computer installed software;

Touch  screen operation system to control the laser head (adjust the distance  between the laser head and metal material); wireless control handle can  control the laser cutting head movement trajectory.

2.The  metal laser cutter is adopts Lasermach(USA) and PRECITEC(Germany )  automatic focus laser cutting head (metal sensor) :Laser cutting head  nozzle contact metal plate surface, cutting head automatically move up  and down, high sensitivity, good stability. No obvious spark phenomenon.

3.The  metal laser cutter with 3HP high-power water chillers: adopts water  cooling method to keep the laser head always work in constant  temperature(plus or minus 5 degrees), to ensure the the stability and  fast operation of the laser.

4.The metal laser cutter with Raycus 1000W (IPG1000W) fiber laser generator：photoelectric conversion rate is high, high beam quality, work life of more than 100,000 hours, no maintenance costs.

5.Universal  ball screw and jagged shaped working platform, loading metal material  fast and keeping stable feeding work.jagged platform fixing strip can  fix material to reduce the spark splash when cutting.

6.The cutting machine is adopted Japan's Panasonic servo motor and drive:  improve the cutting speed and stability. Positioning accuracy: ≤ ±  0.05mm; maximum moving speed 90m / min, maximum effective cutting area  1500 * 3000mm. The servo system has good dynamic response acceleration  characteristics for smooth operation, reliable, no maintenance.

7.Self-service  refueling, alarm system, smoke device: Laser cutting machine tracks can  automatically be refueled, always ensure track lubrication. laser  cutting machine alarm system to remind the situation of the role of the  machine. Smoke device can extract the smoke in the cutting process, to  protect the working environment.

8.Rotary aids: the unique design with rotary auxiliaries can solve the technical problems for cutting pipe.

Application

This  metal laser cutter can effectively cut pipe, square tube, rectangular  tube, oval tube, parallel oval tube, D-tube and other styles of pipe.

The metal laser cutter main processing materials: stainless steel, carbon steel, manganese steel, galvanized sheet, all kinds of alloy plate, rare metals.

The metal laser cutter main application industry: sheet  metal industry, kitchenware industry, elevator mobile phone industry,  advertising industry, chassis cabinet industry, machinery parts  processing industry, precision machining industry, automobile  manufacturing industry, daily light industry, agricultural machinery and  food machinery industry, hardware bathroom industry, Medical fitness  equipment industry.
