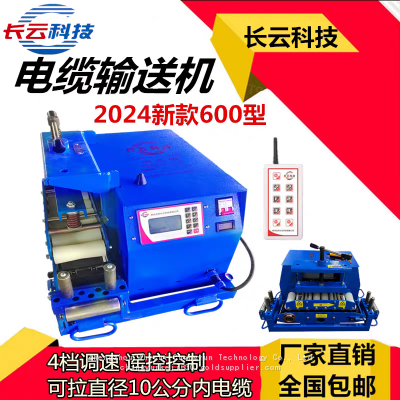

Cable conveyor Pipeline belt conveyor manufacturer Place cable conveyor Longyun Technology

Product Features:

Flexible Power Supply: Standard power supply of AC380V, customizable to AC220V, adaptable to different power environments.

Intelligent Control: Equipped with 4 gear positions + stepless speed adjustment, supports control panel and remote control operation, with multi-unit linkage for improved work efficiency.

Efficient Power: Power of 1500W, stable operation with strong pulling force and high speed, suitable for various working conditions.

Precise Speed Control: Conveying speed of 4-22m/min, optimal working speed of 10-16m/min (2nd and 3rd gears), meeting different job requirements.

Strong Pulling Force: Maximum pulling force of 3800N, suitable for cable laying with diameters of 1-10cm.

Compact and Lightweight: Dimensions of 74x46.5x55.5cm, weight of only 86kg, easy to transport and operate.

Durable Design: External antenna and panel protective cover design, protecting core components and extending service life.

Linkage Function: Equipped with a linkage module, supports multi-unit teaming for large-scale operations.

Multi-functional Operation: Four gear positions + stepless speed adjustment, wide speed range, suitable for various scenarios.

Application Scenarios:

Suitable for cable laying in industries such as power, telecommunications, and construction.

Ideal for working conditions with limited space or frequent movement requirements.

Multi-unit linkage function is perfect for large-scale cable laying projects, improving overall work efficiency.

Technical Parameters:

Power Supply: AC380V (standard), AC220V (customizable)

Power: 1500W

Conveying Speed: 4-22m/min

Optimal Speed: 10-16m/min (2nd and 3rd gears)

Maximum Pulling Force: 3800N

Cable Diameter: 1-10cm

Dimensions: 74x46.5x55.5cm

Weight: 86kg

Product Advantages:

Strong pulling force, high speed, and stable operation, adaptable to various working conditions.

External antenna and panel protective cover design, protecting core components and extending service life.

Equipped with a linkage module, supports multi-unit teaming for large-scale operations.

Four gear positions + stepless speed adjustment, wide speed range, suitable for various scenarios.

Compact and lightweight, easy to transport and operate.
