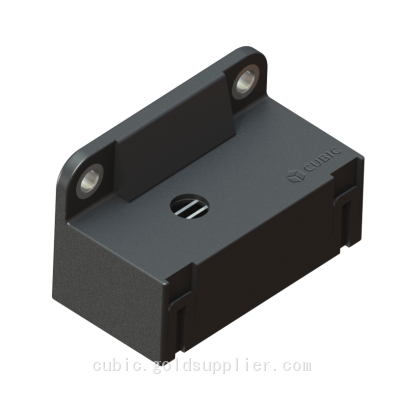

Li-battery Thermal Runaway Detection Integrated Sensor ATRS-1032
Negotiable
/ Piece
1 Piece(Min.Order)
- 10000 Piece / Pieces per Month
- T/T L/C PayPal D/P Western Union Other
You May Like
-
Industrial Grade Ultra Low Power Methane Sensor SJH-5BUL
-
NMP Gas Leakage Detector Gasboard-2063
-
Portable Biomethane Analyzer Gasboard-3200L
-
Automotive Dual Function R744 Refrigerant Leakage Monitoring Sensor ACDS-1009
-
Automotive R290 Refrigerant Leakage Monitoring Sensor AM4206
-
Compact Weather Station WSD-05M
Product Details
| Brand Name | Cubic | Place of Origin | China | |
| Model Number | ATRS-1032 |
Product Description
Introduction
Cubic ATRS-1032 is a lithium-ion battery thermal runaway monitoring sensor based on light scattering and MEMS thermal conductivity (TC) technologies. The ATRS-1032 is specifically designed to effectively monitor the concentration of particulate matter and H2 released during the early stages of thermal runaway while transmitting warning signals to the battery management system (BMS).
ATRS-1032 features fast response time, less cross interference with other gases, low power consumption, and high reliability, widely used for applications of Li-battery electrical vehicle and energy storage system.
Features
1. Fast response time (<1s)
2. Less cross interference with other gases
3. Low power consumption
4. Innovated combined sensing components for more reliable monitoring
Specifications
| Detection Category | H2, Particular Matter |
| Operating Principle | H2: Thermal Conductivity Particular Matter: Light Scattering |
| Measurement Range | PM: 0-10,000μg/m3 H2: 0~4%vol |
| Measurement Accuracy | PM: ≤ ±15%@5000μg/m3, 25℃ H2: ± (10% of reading +0.1%vol) |
| Response Time | ＜1s |
| Average Working Current | Normal Working Mode: ≤ 60mA Low Power Mode: ≤ 100μA |
| Design Lifetime | >15 Years |
| Working Condition | -40℃~+85℃; 0~95%RH (non-condensing) |
| Storage Condition | -40℃~+95℃; 0~95%RH (non-condensing) |
| Power Supply | 9~32VDC (Rated voltage +12VDC/+24VDC) |
| Communication | CAN |
