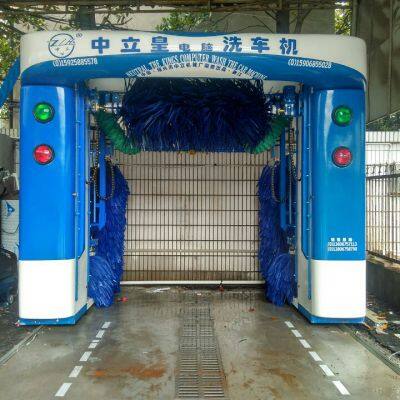

Reciprocating gantry five brush car washing machine

Product Description

Equipment name: reciprocating gantry five brush car washing machine

Specification and model: DXC（A）-540

1. Car washing machine dimensions: length 2350mm, width 3760mm, height 2930mm.

2. Washable vehicle dimensions: length 5500mm x width 2000mm x height 2000mm.

3. Electricity standard: three-phase five wire/380V/50Hz, total power of 29.16Kw (or 17.56Kw for imitation fan).

4. Car washing speed: 15-20 vehicles/hour, adjustable.

5. Compressed air pressure: 0.7Mpa.

6. Single car wash power consumption: approximately 0.8 kWh/vehicle (or 0.4 kWh/vehicle for the imitation fan).

7. Single car wash water consumption: about 100-120L/vehicle; Configure water circulation for approximately 15-20 liters per vehicle.

8. Cleaning brush set: one top brush, two side brushes, two skirt brushes, using foam bristles.

9. Control methods: unmanned control management system, PLC intelligent automation control system, human-machine interface control management system, button assisted control.

10. Cleaning method: Adopting a reciprocating gantry frame structure, the machine body performs reciprocating moving imitation brushing, high-pressure water flushing, car wash shampoo stain removal, and bright wax coating cleaning modes.

11. Adopting fixed four fan units (or imitation form four fan units, top imitation form lifting fan, side fixed fan), controlled by an automatic vehicle drying system, with a drying rate of up to 93.2%, equipped with a single machine power of 5.5Kw (or top 2.2Kw fan, side 3Kw fan), Shanghai Hudi's new high-efficiency energy-saving fan with high air volume, high air pressure, and low noise.

12. Whole machine structure: The whole machine structure is designed in accordance with national safety standards, and the steel grade meets national standards. The whole machine frame is made of high-quality Q235 galvanized steel according to national standards, which has been treated with rust removal, anti-corrosion and baking paint technology.

13. Equipment electrical standards: All electrical components of the entire machine comply with national electrical safety specifications, with an electrical protection level of not less than IP65 and an insulation level of not less than Class B, and have CE and CCC certification certificates.

Sense water spraying automatically

Spraying automobile detergent automatically

Cleaning rim automatically

Wax spraying automatically

Copying dryer automatically

Sewage treatment system to purify, circulate and save

Our Service

Our company provides free customized body appearance services for our products. We can customize designs according to customer requirements, such as shape, pattern, color, structure, size, etc. Appearance is an integral part of the quality of this product. Its design fully considers the psychological characteristics and aesthetic concepts of consumers from different regions, ethnic groups, and countries, achieving differentiation from place to place, meeting the psychological needs of customers, and matching the inherent technical performance and characteristics of the product, making the overall structure of the product reasonable, applicable, beautiful, and generous, giving people a sense of beauty.

Our Company

Shaoxing Zhongli Machinery Plant

Certifications
