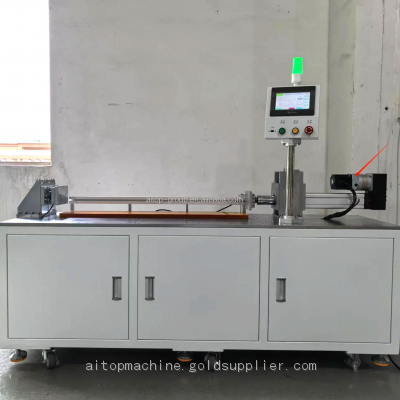

Aitop Prismatic Battery Stacking Strapping Pressing Machine for Prismatic Battery Automatic Assembly Line

Item No.

Product Name

Description

1

Internal Resistance Tester

1. Voltage test V1: range : 0-4.999V

2. Voltage test V2: range : 0-29.99V

3. Resistance test R1: range : 0.1-200 mΩ

4. Resistance test R2: range :1-2000 mΩ

1.Sorting Speed:80PPM

2.Suitable for:all types of cylindrical cell

3

Insulation Paper Sticking Machine

1.Productivity:4000pcs/h; single 4pcs

2.Suitable:one machine for one type cylindrical cell

4

Manual AC Pneumatic Spot Welder

1.Welding Thickness:0.03-0.2mm

2.Maximum power output of transformer:15 KVA

5

Manual DC Pneumatic Spot Welder

1. Welding Thickness:0.03-0.25mm

2. Maximum Output Short Circuit Current:5000A

6

Automatic 5000A/8000A Single Side Spot Welding Machine

1. Spot Welding Speed:0.35s/point; 2800pcs / hour

2. X-Y-axis Travel:400*500mm

(can be customized according to request)

7

Automatic 5000A/8000A Double Sides Spot Welding Machine

1. Spot Welding Speed:0.35s/spot, 5500pcs/h

2.Y-Z-axis Travel:400*500mm

(can be customized according to request)

8

Automatic 5000A/8000A Single Side Rotary Welding Head Spot Welding Machine

1. Welding Material:

pure nickel sheet: 0.03-0.2mm

Nickel-plated steel strip :0.03-0.3mm

2. Maximum Spot Welding

Speed:0.35S/point;2800pcs/h

3. Maximum Stroke Size Range:

X:500mm,Y:400 mm,Z:35mm,

R:180o

The distance between tooling platform and welding needle can be adjusted by 300 mm.

9

Automatic 5000A/8000A Double Sides Rotary Welding Head Spot Welding Machine

1.Rotary Welding Head:R:180o

The distance between tooling platform and welding needle can be adjusted by 300 mm.

2. Welding Travel:

Y: 500mm; Z; Z2:350mm(or 400mm)

10

Automatic Assembly Line Double Side Spot Welding Machine

Suitable for assembly line battery pack production

11

Battery Pack PVC Covering Machine

1. Transmit Speed:

0-15m/min

2.Shrinking Speed:0-300C

3.Load-bearing:30kg

12

30V 10A 20A Battery Pack Aging Cabinet

1.Voltage testing range:4.5-30V

2.Charging range:50-10000mA

3.Discharging range:50-20000mA

4.Accuracy:±(0.2% of reading +0.2% of range)

13

70V 5A 10A Battery Pack Aging Cabinet

1.Voltage testing range:5-70V

2.Charging range:50-5000mA

3.Discharging range:50-10000mA

4.Accuracy:±(0.2% of reading +0.2% of range)

14

100V 10A 20A Battery Pack Aging Cabinet

1.Voltage testing range:10-100V

2.Charging range:50-10000mA

3.Discharging range:50-20000mA

4.Accuracy:±(0.2% of reading +0.2% of range)

15

Automatic Inject Printer

1.Printing speed:320m/min

2.Non-contact printing distance:2-15mm

3.Max number of printing dots:34

16

Battery Pack Comprehensive Tester

1.Voltage testing range:10-100V

2.Charging range:50-10000mA

3.Discharging range:50-20000mA

4.Accuracy:±(0.2% of reading +0.2% of range)

17

BMS Tester

1.Overcharge/Overdischarge Protection Voltage:0.5-5V

2.Overcharge Protection Current:0-50A

3.Over-discharge Protection Current:0-120A

18

256 Channel 5V 10A20a Battery Tester

1.Current:0.05A-10a/20a

2.Voltage:0-5V

3.Channel:256

19

512 Channel 5V 2A 3A 5A 6A Battery Tester

1.Current:0.05A-2A/3A/5A/6A

2.Voltage:0-5V

3.Channel:512

20

256 5v6a 10a /512 Channel 3a5V 5A 6A Lithium Battery Tester With Energy Regenerative Function

1.Current:0.05A-5A/6A

2.Voltage:0-5V

3.Channel:256/512

4.Lithium Battery Tester with Energy Regenerative Function

21

PVC Heat Shrink Wrapping Machine

1.Film speed:50~70PCS/MIN

2.Film precision:±0.1MM
