.800mm Blade Roller Biomass Crusher with Hydraulic System - Bio-Power Plant Equipment | Factory Direct from China

1.Product overview

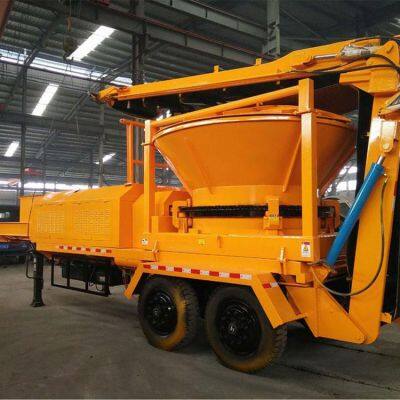

Model: 1250-600 biomass comprehensive crusher

This machine is an advanced equipment specially designed for the processing of biomass raw materials. It integrates crushing and chipping functions.

It can efficiently process various raw materials such as small-diameter wood, bamboo, branches, straw, waste wood, etc.

It is suitable for biomass power plants, individual owners' material preparation, agricultural and forestry waste recycling and other fields.

 Based on the optimization and upgrade of mature chipper technology, it combines high output, strong adaptability and convenient operation.

 It is a benchmark product in the field of domestic biomass crushing.

2.Core advantages

(1) Super adaptable

· Wide range of raw materials: supports the crushing of wood (branches, boards, wood cores) and non-wood (hemp stalks, reeds, corn stalks) raw materials.

· Compound crushing: equipped with a "flying knife + bottom knife + crushing rod" system, which can crush large materials twice to ensure uniform discharge (the particle size is adjustable from 1-3mm).

(2) Efficient and stable

· Powerful: 132kW main motor drive, 800mm cutter roller diameter, 3 flying knives for high-speed cutting, and production capacity leading similar products.

· Dynamic balance design: The cutter roller has passed the G6.3 level dynamic balance test, running smoothly, with small vibration, and the bearing temperature rise is ≤40°C.

(3) Intelligent control

· Frequency conversion feeding: adjust the feeding speed in real time through the wireless remote control to match the main motor load to avoid material blockage or overload.

· Interlocking protection: automatic reverse reversal when material is blocked, emergency stop button + multiple electrical protections to ensure safe operation.

4.Easy maintenance

· Hydraulic opening: open the knife roller cover with one click and quickly replace the flying knife (2-3 days/time).

· Modular design: The bottom knife base and screen can be pulled and disassembled as a whole, reducing maintenance time by 50%.

3.Technical parameters

4.Structural highlights

· High-strength knife roller: Welded steel knife roller with high dynamic balancing accuracy and a service life of more than 5 years.

· Dual pressing system: The upper and lower feeding rollers are designed with staggered teeth, the material is pressed evenly without stagnation, and the debris is self-cleaning.

· Hydraulic buffer system: Nitrogen energy storage + oil cylinder linkage, automatically adapts to changes in material height, and operates without impact.

· Multiple lubrication guarantees: The key bearing positions have external grease injection ports to support continuous operation lubrication (see the lubrication chart for cycles).

5.Safe design

· Protective interlocking: triple safety mechanisms including power-off protection when opening the cover, emergency stop button, and motor overload protection.

· Anti-loosening bolts: The flying knife/bed knife adopts high-strength special bolts (with "ZL" logo), which increase the shear resistance by 3 times.

· Remote control: wireless remote control starts and stops the feeding, keeping away from the dangerous area of the feeding port.

6.Applicable scenarios

· Biomass power plant fuel pretreatment

·  Wood processing plant waste recycling

· Resource utilization of agricultural waste such as straw/cotton firewood

·  Landscaping branches smashed

7.After-sales service

· Free installation guidance and operation training are provided.

· The warranty period is 1 year (excluding wearing parts) and lifetime technical support.

Order now to enjoy efficient crushing solutions!

(Supports customized discharging device: air conveyor/scraper/elevator)
