Home > Products > Trial Frame > TF-4880A Professional Oculus Type Trial Frame for Eye Testing Be Inserted Simultaneously 4 Pieces

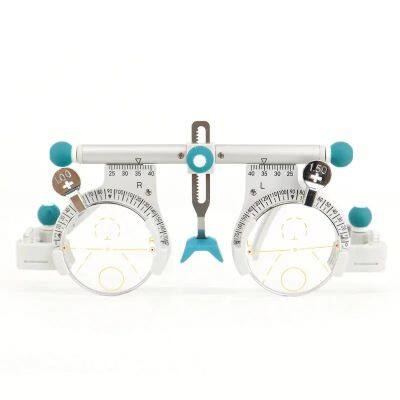

TF-4880A Professional Oculus Type Trial Frame for Eye Testing Be Inserted Simultaneously 4 Pieces
USD $108 - $120
/ Piece
1 Piece(Min.Order)
- 1000 Piece / Pieces per Month
- China
- T/T
You May Like
-
TF-4880A China Supplier Price Optical Optometrist Oculus Trial Lens Frame Optometry
-
TF-4880A Low Price Optometry Equipment Oculus Trial Lens Frame Set Half Frame
-
TF-4880A Optical Optometrist Oculus Lenses Glasses Trial Lens Frame Child Optometry
-
Low Price Optometry Equipment Oculus Trial Lens Frame Set TF-4880A
-
UTF-4880 High Quality Optical Trial Lens Frame Fully Pd Adjustable Universal Typetrial Refractive Segments Optometry
-
TF-5080B Ophthalmic Equipment Adjustable Eye Test Lens Trial Frame for Sale
Product Description
Features:
1) pupil distance adjustment range: binocular pupil distance 48 ~80mm, left or right pupil distance 24 ~40 mm; Minimum scale value 1mm
2) the axial scale of the dividing disk is 130 °~ 0 °~ 120 °on the left and 50 °~ 180 °~ 60 °on the right. The axis scale
increases counterclockwise along the axis of the mirror frame. The effective internal aperture of the frame is 5 °
3) Effective internal aperture of mirror frame: 33.5mm
4) Number of lenses inserted when left or right frames are used: 5pieces (front 3 rear 2)
5) the lens rotates around the optical axis in the inner circle of the lens frame is 360 °
6) the lens optics The unparallelism between the axis and the geometric axis of the frame: ≤ 2.5 °
7) the difference between the optical center and the geometric center of the lens: ≤ 0.5mm
8) the displacement of the lens relative to the geometric center of the frame: ≤ 0.3 mm
9) nose Range of adjustment: adjustable length: 0 ≤ 22 mm; Angle: 360 °
10) adjustable length range of left or right foot: 0~20mm
11) weight: 52g
2) the axial scale of the dividing disk is 130 °~ 0 °~ 120 °on the left and 50 °~ 180 °~ 60 °on the right. The axis scale
increases counterclockwise along the axis of the mirror frame. The effective internal aperture of the frame is 5 °
3) Effective internal aperture of mirror frame: 33.5mm
4) Number of lenses inserted when left or right frames are used: 5pieces (front 3 rear 2)
5) the lens rotates around the optical axis in the inner circle of the lens frame is 360 °
6) the lens optics The unparallelism between the axis and the geometric axis of the frame: ≤ 2.5 °
7) the difference between the optical center and the geometric center of the lens: ≤ 0.5mm
8) the displacement of the lens relative to the geometric center of the frame: ≤ 0.3 mm
9) nose Range of adjustment: adjustable length: 0 ≤ 22 mm; Angle: 360 °
10) adjustable length range of left or right foot: 0~20mm
11) weight: 52g
