Home > Products > Room Heating Heat Pump > 18.6Kw Stainless Steel Heat Pump with Wilo Water Pump inside

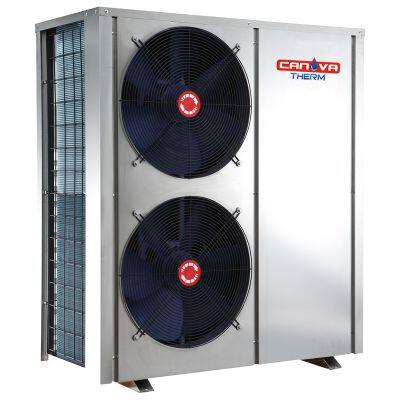

18.6Kw Stainless Steel Heat Pump with Wilo Water Pump inside

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Guangzhou/Shenzhen
Payment TermsT/T
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Certification	CE, ISO9001, CCC, ROHS, Other, TUV	Application	Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments, Beauty Salons, Other
Heat Source	Air-source	Energy Efficiency Grade	One
Heat Temperature	50-70°C	Work Environment	Common Heat Pump
Heating Type	Multi-power Heat	Compressor	Copland scroll
Type	Monobloc heat pump	Transport Package	Plywood case
Specification	18.6KW	Trademark	Canova
Origin	Guangzhou, China

Product Description

This type adopts high efficiency tube in shell heat exchanger and built-in water pump inside the machine,which ensures not only high efficient performance of the system but also easy installation.It supplies domestic hot water for shower,washing etc.

Model			KF240-B	KF400-B	KF480-B	KF240-B/D	KF400-B/D	KF480-B/D
Heating (A20/W15-55)	Hot water capacity	KW	11.2	18.6	21.4	11.5	19.2	22.3
Heating (A20/W15-55)	COP	W/W	4.31	4.24	4.12	4.35	4.38	4.36
Heating (A7/W35)	Heating capacity	KW	8.5	14.8	17	8.9	15.5	17.6
Heating (A7/W35)	COP	W/W	4.01	4.05	4.02	4.1	4.1	4.0
Heating (A7/W45)	Heating capacity	KW	7.9	14	16.2	8.2	14.6	16.5
Heating (A7/W45)	COP	W/W	3.21	3.26	3.21	3.28	3.31	3.15
Rated heated water output		L/h	240	399	459	246	411	478
Rated outlet water temp		℃	55
Max outlet water temp		℃	60
Rated power input		Kw	2.6	4.4	5.2	2.6	4.4	5.1
Rated current		A	12.4	7.8	9.3	12.6	7.8	9.1
Power supply		V/Hz/Ph	220~240/50/1	380~415/50/3		220~240/50/1	380~415/50/3
Compressor	Brand		Emerson Copeland
	Compressor type		Scroll			EVI Scroll
	Number of compressor		1	1	1	1	1	1
Evaporator	Type		Hydrophilic Aluminum Fin Heat Exchanger
Water side heat exhanger	Type		High Efficient Tube in Shell Heat Exchanger
Water side heat exhanger	Pressure Drop	kPa	30	40	45	30	40	45
Throttling device			Electronic Expantion Valve
Fan motor	Fan type		Low noise high efficiency axial type
	Fan discharging		Horizontal			Horizontal
	Fan quanlity		1	2	2	1	2	2
	Fan input	W	50	90	90	50	90	90
	Fan speed	RPM	880	840	840	880	840	840
Water pump	Brand		WILO			NO
Water pump	Head	m	6	8	8	NO
Controller			LCD Wire Controller
Ambient temperature range		℃	-7~43			-25~43
Refrigerant			R407C / R410A
Water flow		m3/h	1.9	3.2	3.7	2.0	3.3	3.8
Water pipe size			DN25	DN25	DN25	DN25	DN25	DN25
Noise in 1 meter distance		dB(A)	59	63	63	59	63	63
Cabinet			Stainless Steel / Galvanized Powder Coated Steel
Low pressure protection system			YES
High pressure protection system			YES
Water flow switch			YES
Automatic defrosting system			YES
Dimension	W/D/H	mm	1110/400/750	1110/530/1260	1110/530/1260	1110/400/750	1110/530/1260	1110/530/1260
Net weight		kg	110	155	170	110	155	170

Features:

· Highly rotary compressor

· Water pump built in machine

· Automatic defrosting

· Intelligent controller

· Safe, reliable, stable running

· Long working life

· Low noise&vibration

· Intelligent controller

Optional:

· Refrigerant:R22,R410A,R134A,R417A

· Cabinet:Stainless steel/powder coated steel

· Heating exchanger:tube-in-shell/tube-in-tube
