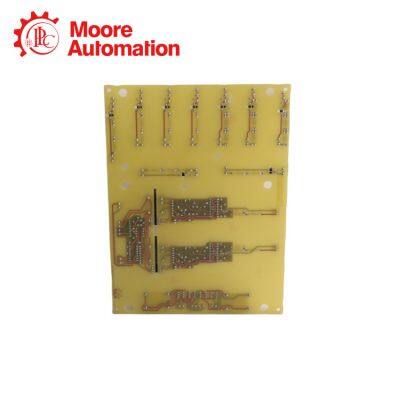

GE DS200SHVMG1AFE SCR High Voltage M-Frame Interface Board new

Manufacturers: GE

Part number: DS200SHVMG1AFE

Description: SCR High Voltage M-Frame Interface Board

Series: EX2000

Input voltage range:- 500 mV to+500 mV

Number of relay channels: 12

Power supply voltage: 28 V DC

Output frequency range: 0 to 500 kHz

Installation method: DIN rail installation

Current attenuation: optional jumper 10:1

AC line voltage attenuation bypass: 240-600 V

Technology: Surface mount

ACCT secondary current rating: maximum 144mA

Working temperature: -30 to+65 ° C

Size: 15.9cm high x 17.8cm

DS200SHVMG1AFE is an SCR high-voltage M-frame interface board manufactured and designed by General Electric, and is part of the EX2000 series used in General Electric excitation control systems. The SCR high-voltage M-frame interface board provides an interface for signals from the SCR bridge of the M-frame driver to the DCFB or SDCI power board and PCCA power connection card. It converts the shunt signal (-500 mV to+500 mV) into a differential frequency output (0 to 500 kHz) and sends it to the DCFB or SDCI board. By combining hardware jumpers, a 10:1 current transformer can be selected to provide additional current attenuation capability. Provide attenuation of communication lines, motor armatures, and SCR bridge voltage.
