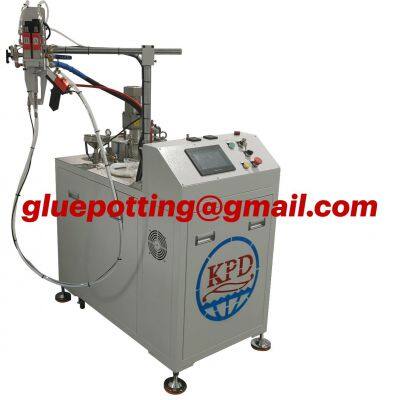

PU Gasket Dispenser Machine Auto Glue Dispensing & Mixing Machine For Two - Component Resin Doming

Whatsapp+86 1342516 4065

Category:Automatic AB glue dispensing machine

Brand: KPD

Model:KPD-700

Applications:Led Display,Display Module,Electronic Products And Where Glue Potting Demanded Products

Suitable Material:AB crystal glue: Glue dropping application and potting application. AB glue potting for isolation (with fillers): Two components silicone , two parts of PU, AB glue epoxy and so on

Suitable Gluematerials:

AB crystal glue: Glue dropping application and potting application.

AB glue potting for isolation (with fillers): Two components silicone , two parts of PU, AB glue epoxy and so on.

Application of filler glue potting:

1.LED products: LED display , led screen , outdoor wall washer , outdoor rigid light , underground lamp , underwater light .

2.Electronics parts : Micro-electronics, inductors, transformers, ballasts, electronic coils, transformers, relays, loudspeakers, heat kettles, inductors and so on .

3. Electric vehicle: auto lamp ,generator, clutch, air conditioner filter, oil filter, car control card, horn, flasher , electric vehicle accessories.

4.Communications parts : Communication box

5.Water treatment: Water filter , water meter and so on .

Other products need glue potting process .

Machine functions :

1.Our machine can be use for AB glue ratio between the base agent and hardener: 1:1

2.The double cylinder plunger pumps is designed for high abrasive glue materials.

3. Machine have vacuum functions that can remove the air bubble inside

4. AB tanks have stirrer to make sure AB glue not have sediment.

5. The mixed liquid is abrasive, cause big friction to the pump.

6. Need to vacuum to remove the air bubble inside

7. Not easy to mix the two components evenly.

8. Vacuum: to remove the air bubble inside the adhesive;

9. Self-cleaning；

10. Heating: pre-heat the resin before used

11. Dynamic Mixing Method to mix evenly;

12.Daheng Patent Metering Pump: anti-abrasive, long life span; high precision;Multi-nozzle: to improve capacity.

13. High Precision Valve;

14. Quality & Strict position control system.

15. Multi-head nozzle available.

Liquid A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine, draining out liquids individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.

Advantage of automated glue dispenser:

1. Fully automatic operation, accurate proportion and even mixing

2. Glue dosing while mixing, no waste of glue and no waste of consumables. Precise dosing and dispensing.

3. The glue amount of the product is consistent and good. The edge of the machine is clean without glue.

4. Machine glue dosing save much time and effective and lower cost

5. There is no need for glue pouring staff, only one operator is needed to complete the mass production

Normally technical issues should be solved to choose the glue potting machine

1. Ratio between the base agent and hardener: 1:1 or 10:1

2. Fillers：Abrasive the base agent includes percentage of additives and fillings such as aluminum oxide, or silica powder, in order to increase the hardness or heat conduction

3. The mixed liquid is abrasive, cause big friction to the pump.

4. Need to vacuum to remove the air bubble inside

5. Not easy to mix the two components evenly.

6. Vacuum: to remove the air bubble inside the adhesive;

7. Self-cleaning；

8. Heating: pre-heat the resin before used

9. Dynamic Mixing Method to mix evenly;

10. Daheng Patent Metering Pump: anti-abrasive, long life span; high precision;Multi-nozzle: to improve capacity.

11. High Precision Valve;

12. Quality & Strict position control system.

13. Multi-head nozzle available.
