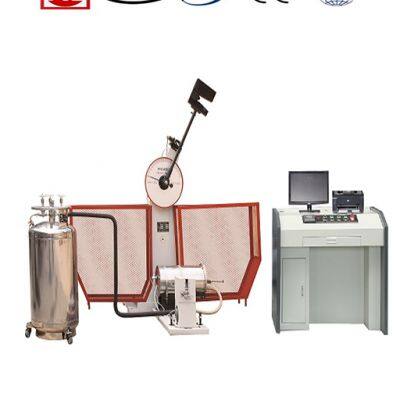

Model JBDW Series Computer Screen Display Pendulum Impact Testing Machine with super low temperature chamber
You May Like
-
Model JBDW-C Series Automatic Computer Screen Display Pendulum Impact Testing Machine with super low temperature chamber
-
Model JBW-N Computer Screen Display Charpy and Izod Pendulum Impact Tester
-
Model WDC-80TD Low temperature Chamber for DWTT Impact Specimen
-
Model WDC-196T Low temperature Chamber for Impact Specimen
-
ZT-VU1 Manual special Cutting Machine for Notch of Impact Specimen
-
ZT-VU2 Electric special Cutting Machine for Notch of Impact Specimen
Product Description
Application:
This kind of machine is used to determine the impact toughness of metal materials under dynamic load. The pendulum of the machine can be raised or released automatically. It is designed according to national standard GB/T3808-1995 “Charpy Impact Test Method for Metals” and ISO standard.
It can be also accordance with ASTM E23 standard as customer’s special request. It has the features of easy operation, high efficiency, safe and reliable. The computer system can do data processing and get the test report. Under the super low temperature cooling system, it can check the impact performance of materials. The machine is especially suitable for laboratory, metallurgy industry, machinery production, steel plant and other fields.
Specifications:
Specifications | JBDW-300 | JBDW-500 |
Impact energy (J) | 150, 300 | 250, 500 |
Impact velocity (m/s) | 5.2 | 5.4 |
Raised angle | 150o | |
Standard span (mm) | 40 | |
Round angle of jaws (mm) | R1-1.5 | |
Round angle of striking edge (mm) | R2-2.5 | |
Size of specimen (mm) | 10 x 10 x 55 | |
Power supply | 3phs, 380V, 50Hz or 220V, 60Hz | |
Dimensions (mm) | 2124 x 600 x 1340 | 2144 x 736 x 1390 |
Net Weight (kg) | 880 | 980 |
Display | Computer screen | |
Low temperature range | -80--- -190°C (Liquid Nitrogen) | |
