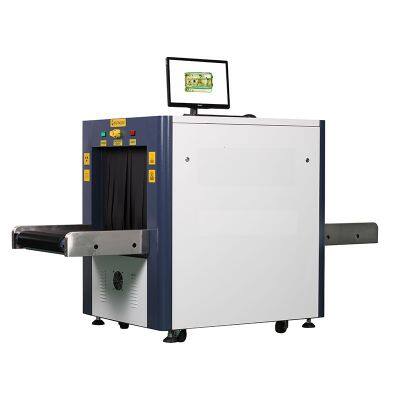

Airport Cargo Scanner Machines Price Digital X-Ray Baggage Security Inspection Panoramic luggage X Ray Machine
Negotiable
/ Set
1 Set(Min.Order)
- 10000 Set / Sets per Month
- T/T PayPal
Product Details
| Brand Name | ZXSAFE | Place of Origin | China | |
| Model Number | ZX 6550C |
Product Description
Product highlights
* Multilingual operation
* Automatic built in test and self diagnosis
* Secure access Key
* Auto archiving
* Network-Ready
* Energy saving design
* One key turn off
* Indication of the date and time
* baggage counter
Physical Specifications
| Unit weight (kgs) | 380 |
| Unit size (mm) | 1900(L)*917(W)*1270(H) |
| after packed in wooden pallet - | 1970*990*1450 mm |
| Gross weight (kgs) | 500 |
General Specifications
| Tunnel size(mm) | 650(L)*505(W)mm |
| Conveyor Speed(m/s) | 0.22 |
| Conveyor height(mm) | 650 |
| Conveyor Max Load(kgs) | 160 |
| X ray dose per each inspection | Typical 2.0 μGy/h, guarantee 2.5 μGy/h |
| X ray leakage | Typical1.0 μGy/h, guarantee 1.5 μGy/h |
| Penetration | Typical 32mm, guarantee 30mm |
| Wire Resolution | Typical AWG40, guarantee AWG38 |
| Penetration Resolution | Typical AWG32, guarantee AWG30 |
| Spatial resolution: | Typical dia1.0mm,Vertical: dia1.0mm; Guarantee dia1.3mm,Vertical: dia1.3mm; |
| Power Consumption | 0.5KVA |
| Noise | <60dB |
| Film Safety | Guarantee ASA/ISO1600 Film |
X-ray Generator (single)
| Anode Voltage | 140 KV (160 KV could be optional) |
| Anode power | 0.5mA |
| Generate angle | 80 degree upward |
| Generate direct | from bottom to top |
| Cooling / Duty Cycle | Oil Cooling /100% |
Image System
| X-ray Sensor | L-Shaped Photodiode Array (multi-energetic) , 12bit Deep |
| Image Display | High resolution of 1024 * 1280 pixel; Image Grey Level: 4096 |
| Image Enhancement | 1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc. |
| Image Recall | All preceding images recallable, retrieval |
| Threat Image Projection | Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability |
| Image Archive | Up to 200,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats |
| Miscellaneous Functions | Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc. |
| Network Applications | Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) . |
| Images process | 24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags |
Operating Environment
| Operation temperature/Humidity | 0℃-45℃ / 5%-95%(non-condensing) |
| Storage Temperature/Humidity | -40℃to 70℃ / 5%-95%(non-condensing) |
| Operation Power | 220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC) |
| UPS | 15mins, 30mins, 60mins etc, optional |
Computer and other
| Monitor | High Resolution Color, LCD Accord, 19.9 inch |
| Hard Disk | XJH-064GB (1T disk could be optional)) |
| CPU | Intel i3-3120M @ 2.50GHz |
| Storage | 4GB 1600MHz DDR3 Innodisk |
| Main board | Intel lvy Bridge - HM76 Express |
Compliance
| International | * ISO19001 ; ISO14001 ; OHSMS18001 ; * CE |
| National (China) | * Health Inspection Report * Computer Software Copyright Registration Certificate * Software Product Registration Certificate * Radiation Safety Certificate from Ministry of Public Security * Quality Certification from Safety and Police Electronic Products Quality Inspection Center * Design pantent certification: Patent No. : 201020700245.2 ; Patent No. : 201020700245.8 ; Patent No. : 201020700256.0 |
