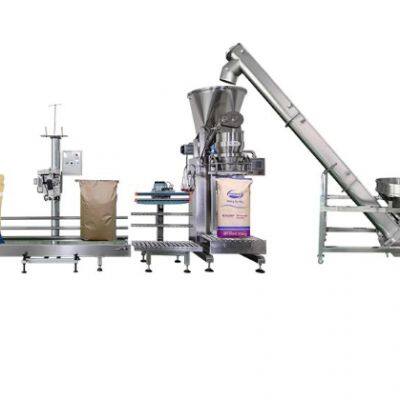

25kg/Bag Pellet Packing Machine Weighing Stacking Intelligent With Touch Screen Weighing-type Filling Machine

plywood box

25kg/Bag Pellet Packing Machine Weighing Stacking Intelligent With Touch Screen Weighing-type Filling Machine

Plastic Pellet Packaging Machine Weighing Stacking Intelligent For 25kg Bag

The Semi Automatic Weighing Packing Machine parameter and function table  :

Fully-automatic Intelligent Packing Machine, Auto Bag-picking, bag-opening, weighing, discharging and hot-melting, connecting to auto stacking system.

Features of Plastic Pellet Packaging Machine

1. Fully-automatic running of the whole system can greatly lower the labor cost.

There is only one step for manual operation, that is to put the material containing bag in good condition in the bag place, touch screen interactive operation is easy and convenient for operator, 1 staff can operate more production lines, saves much labor.

2. Intelligent identification and auto-regulation

OIM-V3 is equipped with adaptive algorithms of independent research & design, it can be compatible to different type of materials, there is no worries of calibration for material changing.

3. High-precision

Adopting corrugated pipe weighing sensor and Y-type independent weighing system with independent R&D, features stable structure, high-efficiency filtration with precision of ±10g.

4. Flexible for connecting with other equipment

One auto packing machine can equipped with several production lines, the customer can choose vacuum pump or normal air exhausting function, hot-melting or stitches closing of bags, manual or auto stacking, auto film winding and other suitable equipment.

Features of Software of Plastic Pellet Packaging Machine

1. Human-computer interaction control method with simple and clean operating screen.

2. Integrated control of several production line. Auto-choosing by one-click, production line interlocking and etc.

3. Residual material cleaning function. The operator can choose auto residual material cleaning when the machine alarms material shortage.

4. Timing reminding function. Can set auto reminding after N (1-24) hours to start running.

5. Quantity auto counting function. Can set auto stop of the machine after N (1-10000) bags of material in the system.

6. Weighing abnormality alarm. The machine will sound alarm to check whether material shortage or bridging occurs when the weighing process didn’t finish with N seconds.

7. Alarm for weight value error. The machine will sound alarm when the error value exceeds the set value.

8. Bag-opening alarm. The machine will suspend to prevent material spilling when the bag-opening sensor sounds alarm.

9. Machine error self-inspection. The machine will alarm when the sensors information is incorrect.

Applications of Plastic Pellet Packaging Machine
