Customized Nonwoven Disposable Inflatable Medical Heating Blanket For Hospital Surgical Warming

1

Inflatable medical heating blanket

Inflatable medical warming blanket is a widely used disposable surgical warming product, suitable for external physical warming of patients during surgery to prevent and alleviate hypothermia. It can also be used in ICU, recovery room, rehabilitation department, emergency department and other departments. There are different specifications of blankets, mats, adult and children's blankets.

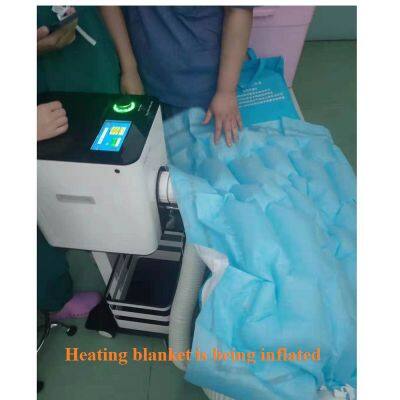

The working principle of this product is that the host generates hot air, which enters the heating blanket through the pipeline, thereby achieving the purpose of raising the patient's body temperature.

Basic configuration of this product:

1 host+1 silent wheel car+5 disposable heating blankets.

1.    Applications

Medical warming system is a medical device that promotes blood circulation and enhances human immunity by maintaining the patient's body temperature during the perioperative period. It has replaced traditional Chinese heating equipment that has been used in the medical field for decades. Solved the problems of water leakage, electric leakage, burns and other issues in the hospital.

2.    Operation.

A rotating knob, simple and quick.

3.    Display.

5 inch colorful LCD screen, English menu

4.    Gas guiding connector

4.1.  Front self-lock tight air pipe connector is convenient, flexible and well-sealed.

4.2 The design of the temperature probe in outlet can precisely control the blanket temperature.

4.3 1.5-1.8m highly flexible air connecting hose is wear-proof.

5.    Metal case has passed electromagnetic compatibility testing, jam-proof.

6.    Performance parameters

6.1Temperature of heating blanket: 4 gear temperature settings: Room temperature, 32 ℃, 38 ℃ and 43 ℃

6.2 working style: working continuously

6.3 High temperature alarming: Alarm and stop working when temperature is 3 ℃ higher than settings.

6.4 Low temperature alarming: alarm when temperature is 3 ℃ Lower than settings.

6.5 Heating plates alarming: alarm when the heating plate works longer than its theoretical service life.

6.6 Accumulative timing: Maximum 255 h Timing precision: ≤±1min

6.7 Wind speed: high speed and low speed can be set, high speed 26±1Km/h, low speed 23±1Km/h.

6.8 Working noise: Normal working nose of whole machine ≤45db

6.9 Total Power ≤350VA

6.10 Filtering system: High-efficient 0.2 micron filter, replaceable.

7.    Shipment and storage

7.1 Environment temperature range: -40℃-50℃

7.2 Relative temperature range: 10%-80%

7.3 Atmospheric pressure range: 500hpa-1060hpa

8.    Normal working conditions:

8.1 Environment temperature: 5℃-40℃

8.2 Relative humidity: ≤80%

8.3 Atmospheric pressure: 860hpa-1060hpa

8.4 Power requirement: AC 220V±10%,50Hz±2%

9.    Configurations:

9.1 Host machine: 1 set

9.2 Disposable warming blanket: 5 (a variety of disposable warming blanket according to clinical need)

9.3 Trolley: 1 (Medical noiseless pulley Trolly)

9.4 Multiple types of sterilized disposable heating blankets are available for selection, including cover blankets, cushion blankets, adult and children's blankets suitable for different surgical sites, meeting the clinical needs of different departments.
