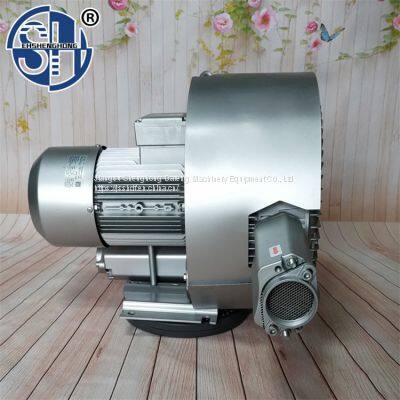

China Jiangsu Shenghong High Pressure Blower, Vortex Blower - High Efficiency and Energy Conservation+Low Noise and Environmental Protection+Long Service Life
- 10000 Box / Boxes per Month
- T/T Escrow
You May Like
-
Shenghongzeng oxygen pump, vortex vacuum pump, vortex vacuum pump
-
Wind vic suction air pump, blowing fan, dust extraction fan
-
General equipment > fan > pipeline fan turbo fan marine fan
-
China Shenghong explosion-proof fan, explosion-proof fan, high-pressure explosion-proof fan, powder explosion-proof fan.
-
China Shenghong explosion-proof fan, explosion-proof fan, high-pressure explosion-proof fan, powder explosion-proof fan.
-
General equipment > fan > pipeline fan turbo fan marine fan
Product Details
Certification | CCC, CE |
Product Description
China Jiangsu Shenghong Dafeng Machinery Equipment Co., Ltd.: The impeller of the air ring pump is directly installed on the motor rotor, which is completely non-contact compression. Since the pump shaft is installed outside the compression chamber, the working reliability of the machine can be ensured even under the maximum pressure difference. The gas is inhaled from the suction port 1, but after it enters the side channel 2, the rotating impeller 3 gives the gas a speed in the direction of rotation, and the centrifugal force on the blade accelerates and increases the gas outward. As the rotation proceeds, the kinetic energy of the gas increases, which further increases the gas pressure along the side channel. As the side channel narrows at the outlet, the gas is squeezed out of the blade and discharged from the pump body through the outlet 4
100% oil-free, water-free compression, all air-ring vacuum pump motors are of IP55 protection grade and Class F insulation
? Dual frequency (50/60HZ) and wide voltage can meet the voltage levels of almost all regions in the world. The external design of the bearing can withstand high operating temperature and improve the operation reliability and service life
? The new concept of variable frequency drive is introduced, which can improve the performance to 300% compared with that of ordinary motor drive. The unique sealing form between impeller and pump body reduces the pressure loss during gas compression
? The pump casing and impeller are formed by die-casting mould, which is solid and durable, with excellent heat dissipation. Precision machine tool processing and cutting ensures accuracy and quality. The surface of the air pump is treated with protective paint
? The product has undergone strict mechanical, electrical and other performance tests, and adopts PROE, UG, CAD and other computer-aided design software and motion simulation demonstration
Up to more than 100 product models can meet your requirements for various specific applications, using wide voltage dual frequency(
50/60HZ) motor, protection grade IP55 (insulation grade F), any
Windvik air-ring vacuum pump can be used everywhere. And whether in Europe, the Middle East or Southeast Asia, Windvik can deliver goods in a short time. Our products in bulk can be delivered with
To meet your needs
When a variable frequency is directly installed on the motor or control cabinet, the same type of air-ring vacuum pump and compressor can handle more flow of gas while saving energy. This is due to the precise control system
The system can always provide the accurate power you need to avoid additional gas consumption and greatly reduce the system operating costs.
At the same time, we provide a full range of sealed fans and explosion-proof fans
Absolute pressure is the measured value based on the ideal vacuum (absolute pressure is zero). So the absolute pressure is higher than the reference value
Gauge pressure refers to the measured value above the standard atmospheric pressure. That is, the standard atmosphere is taken as the reference, so the actual measured value is always greater than the reference value
Vacuum refers to the measured value below the standard atmospheric pressure. The measurement reference is still standard atmospheric pressure, so the actual measurement value is small
one
According to DIN VDE 0105 or IGC 364, unqualified personnel shall not work on electrical equipment.
Qualified personnel: refers to the personnel authorized by the person in charge of plant safety. They complete a necessary work according to their own training, experience, knowledge of relevant standards and ability to prevent accidents
Be aware of potential hazards and take necessary preventive measures. Have necessary knowledge of life first aid and be familiar with relevant life rescue equipment.
2. The operating instructions accompanying the equipment cannot contain all the details of the elements involved, especially the possible installation, operation and maintenance methods. So these operations
The manual only contains the necessary information to enable qualified personnel to operate the machine or equipment correctly. Therefore, it is necessary to clarify that if you lack the detailed parameters of the product or have questions about the relevant operation, please follow this
Contact us for the equipment type and processing code of the product.
3. Tolerance: the motor conforms to DIN EN 60 034/DIN IEC 34-1 standard, with insulation class F.
4. Pay attention to the selection of the most appropriate, cost-effective and energy-efficient scheme according to the specific situation of the use site, whether to focus on the flow or pressure and other relevant factors. When necessary
Use relief valves, filters and other auxiliary accessories to better display the performance of the equipment and match the site.
5. Before starting and before starting, check whether the fasteners are loose, falling off, the shell is not deformed or misplaced, and is intact/the wiring mode and power supply voltage meet the requirements/the shell is grounded, and the leakage protector is installed/check
Check whether the rotation direction of the motor is correct and normal. It should be stable, vibration and temperature rise noise are normal
6. During the operation of the air pump, if there is abnormal increase in noise, scream, vibration and temperature, cut off the power supply immediately for inspection, and then turn on the power for operation after the fault is eliminated
It is forbidden to start the air pump with power on when there is a connecting pipe!
It is forbidden to use hard links at the air inlet, and soft connections must be used!
