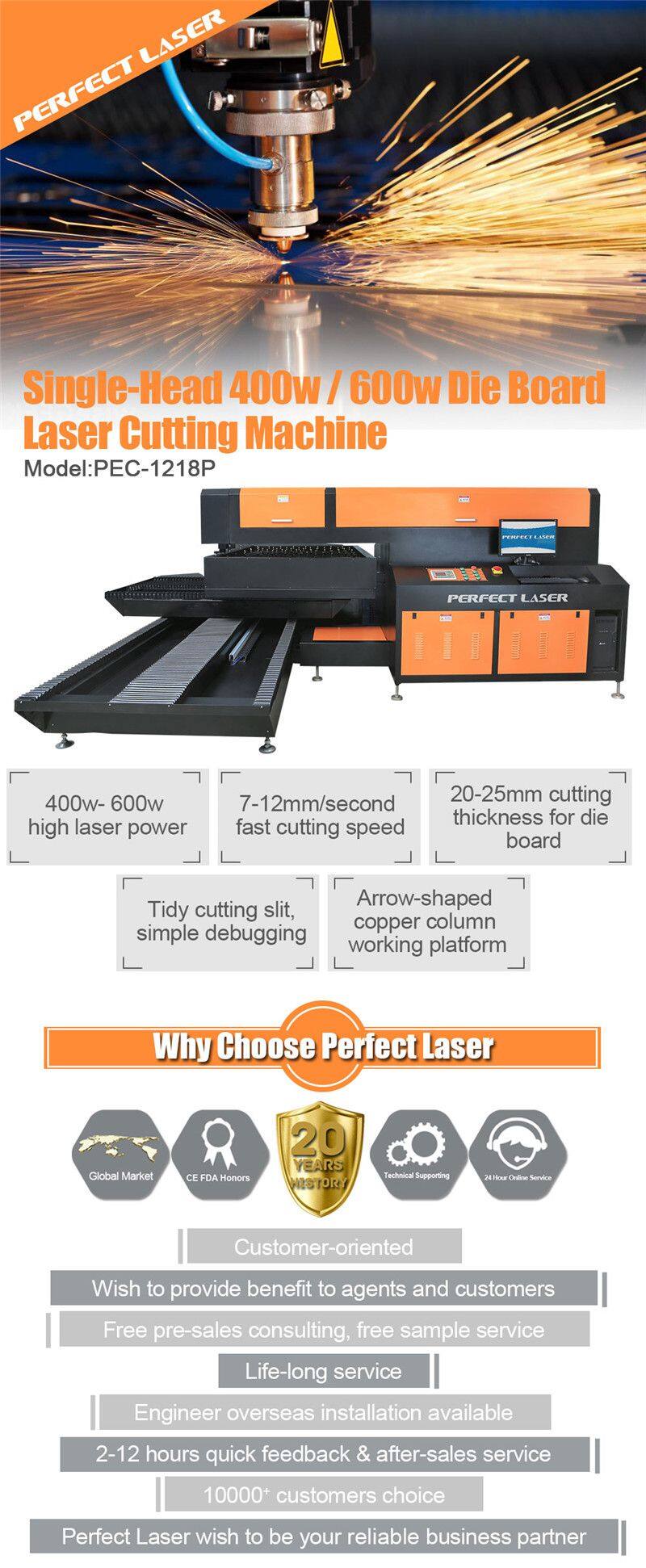

Factory Price 400W 600W 18mm MDF CNC Laser Cutting Machine For Die Board Making

Product Introduction

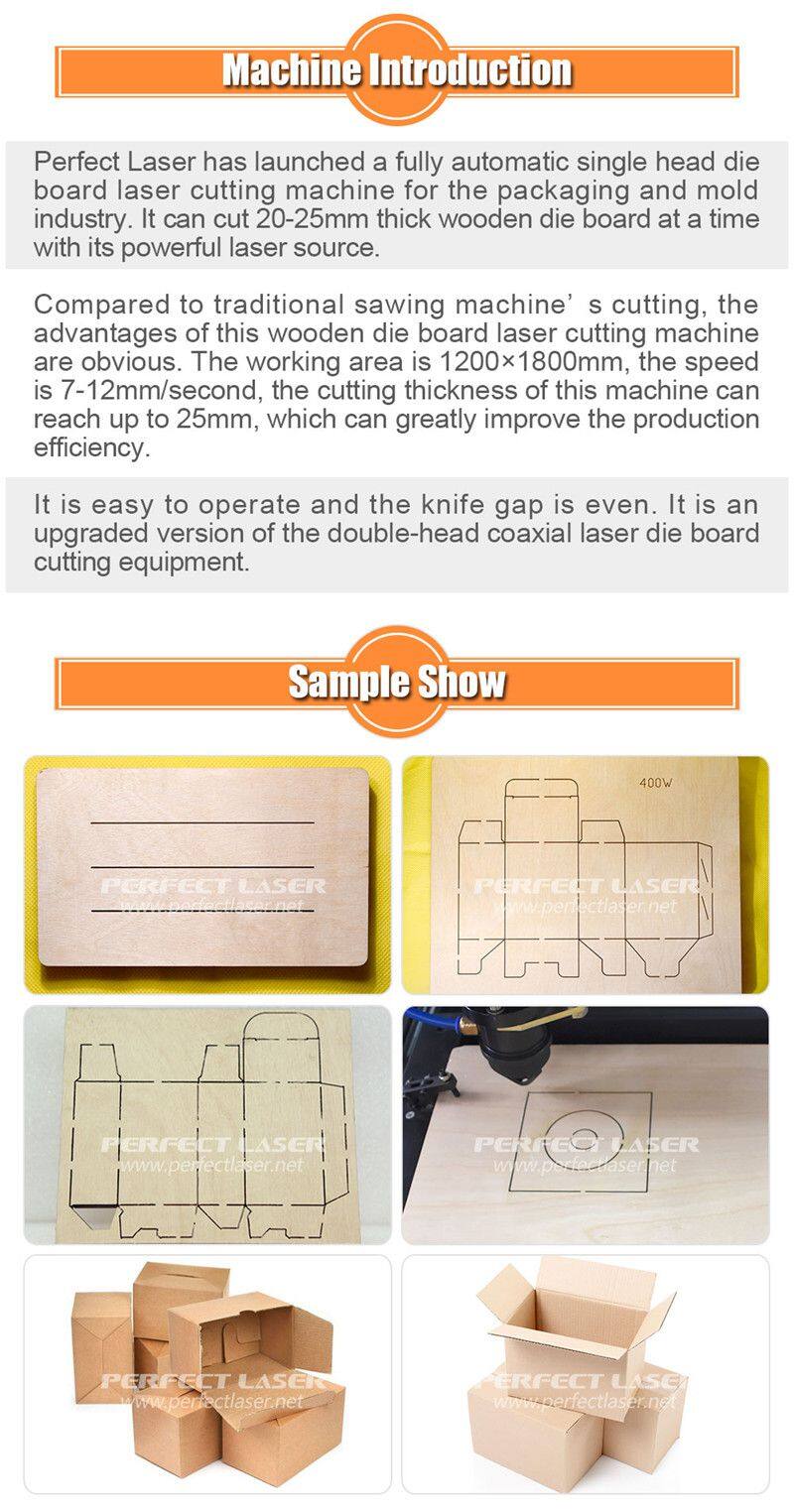

Perfect  Laser has launched a fully automatic single head laser die board  cutting machine for the packaging and mold industry. It can cut 20-25mm  thick wooden die board at a time with its powerful laser source.

Compared  to traditional sawing machine’s cutting, the advantages of this wooden  laser die board cutting machine are obvious. The working area is  1200×1800mm, the speed is 7-12mm/second, the cutting thickness of this  laser die board cutting machine can reach up to 25mm, which can greatly  improve the production efficiency.

The  wood die cut machine is easy to operate and the knife gap is even. It  is an upgraded version of the double-head coaxial laser die board  cutting equipment.

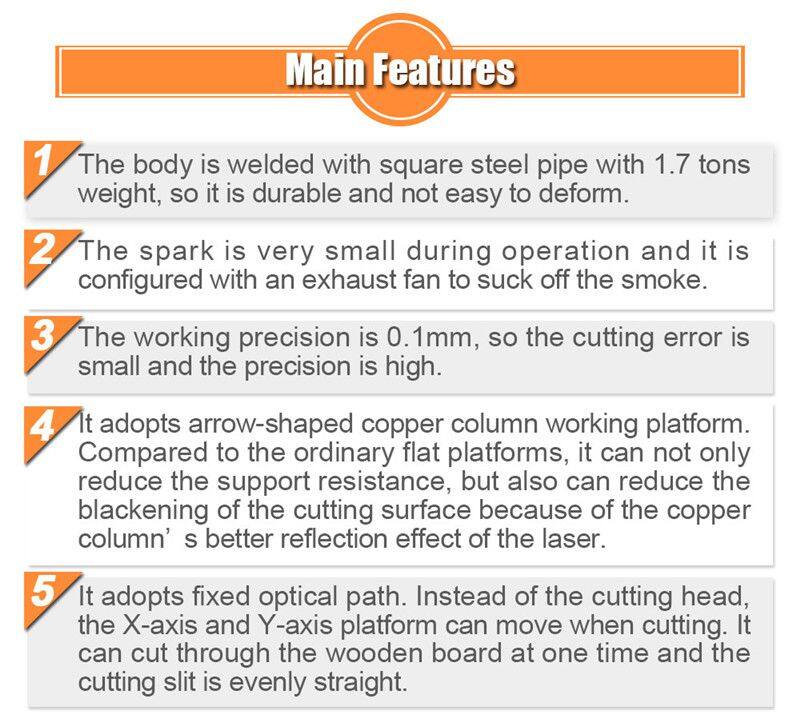

Product Features

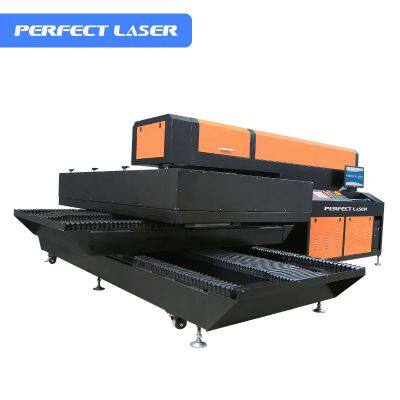

1.  The body of our laser die board cutting machine is welded with square  steel pipe with 1.7 tons weight, so it is durable and not easy to  deform.

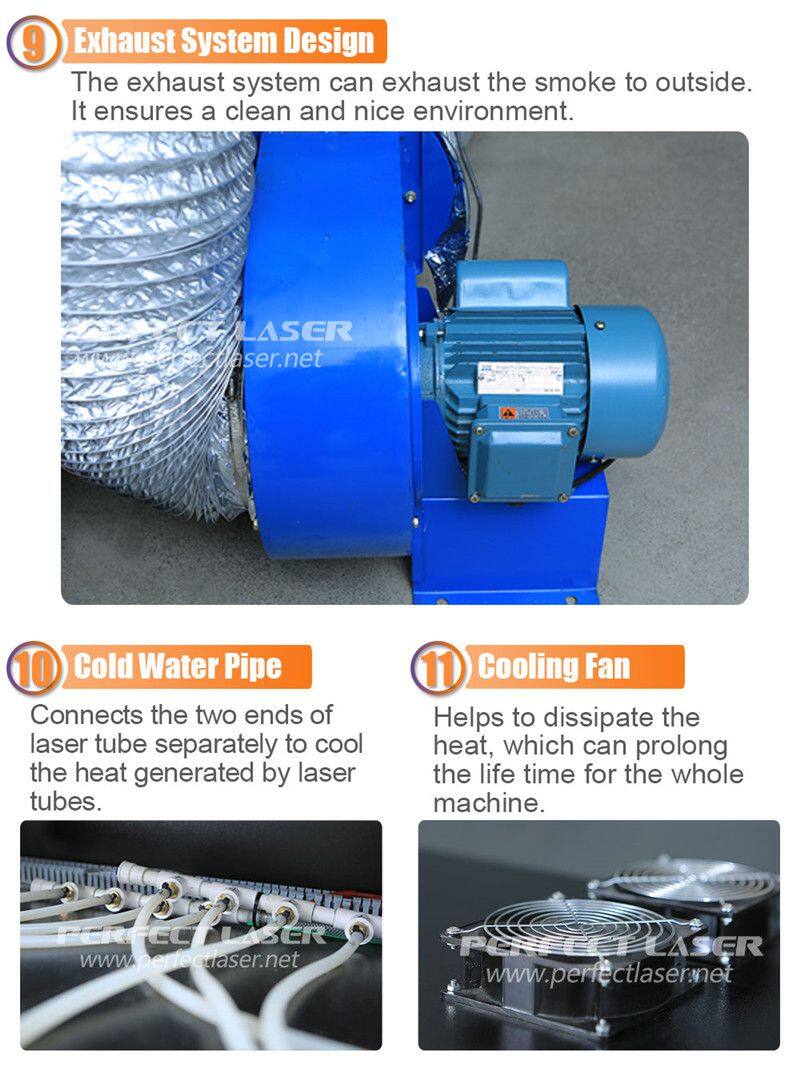

2.  The spark is very small during operation and the laser die board  cutting machine is configured with an exhaust fan to suck off the smoke.

3. The working precision of our laser die cutting equipment is 0.1mm, so the cutting error is small and the precision is high.

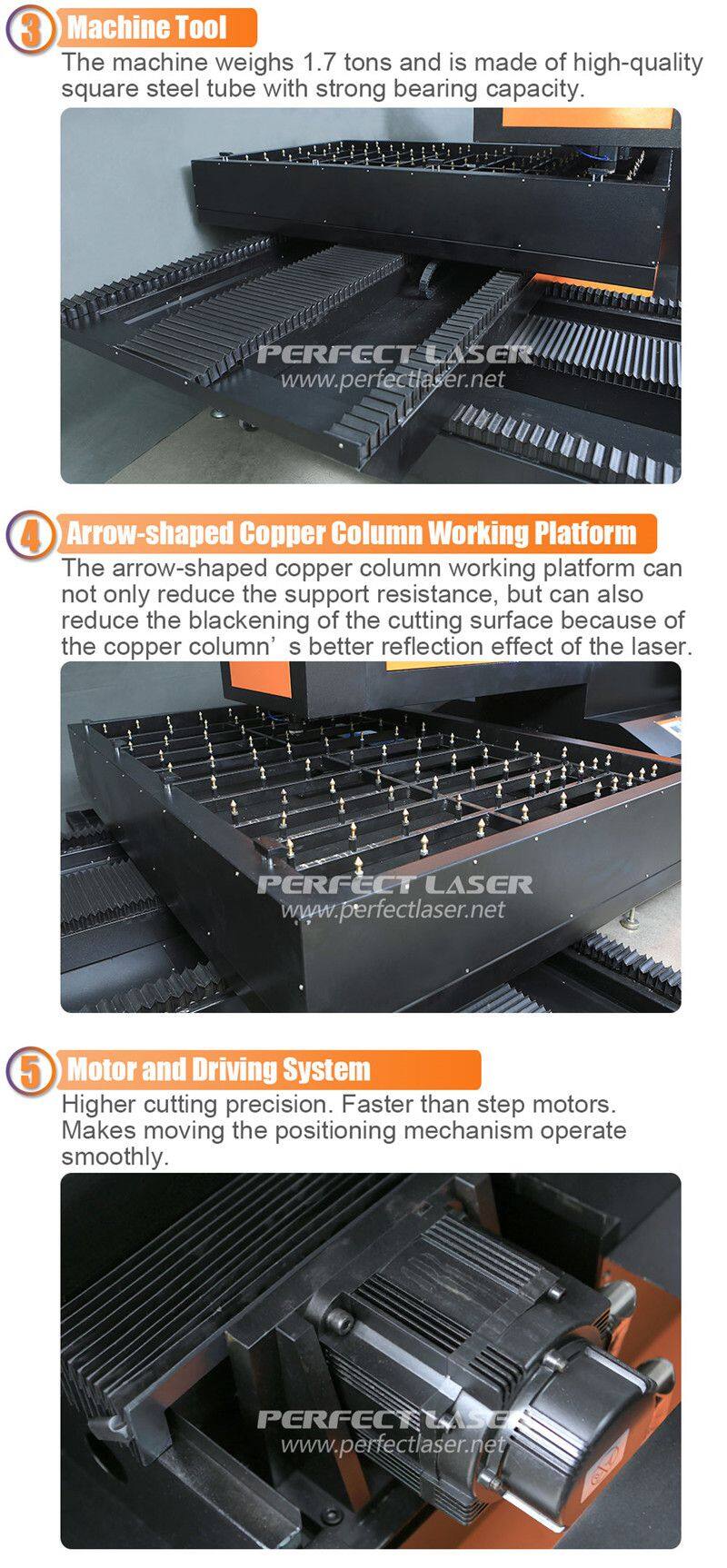

4.  This laser die board cutting machine adopts arrow-shaped copper column  working platform. Compared to the ordinary flat platforms, it can not  only reduce the support resistance but also can reduce the blackening of  the cutting surface because of the copper column’s better reflection  effect of the laser.

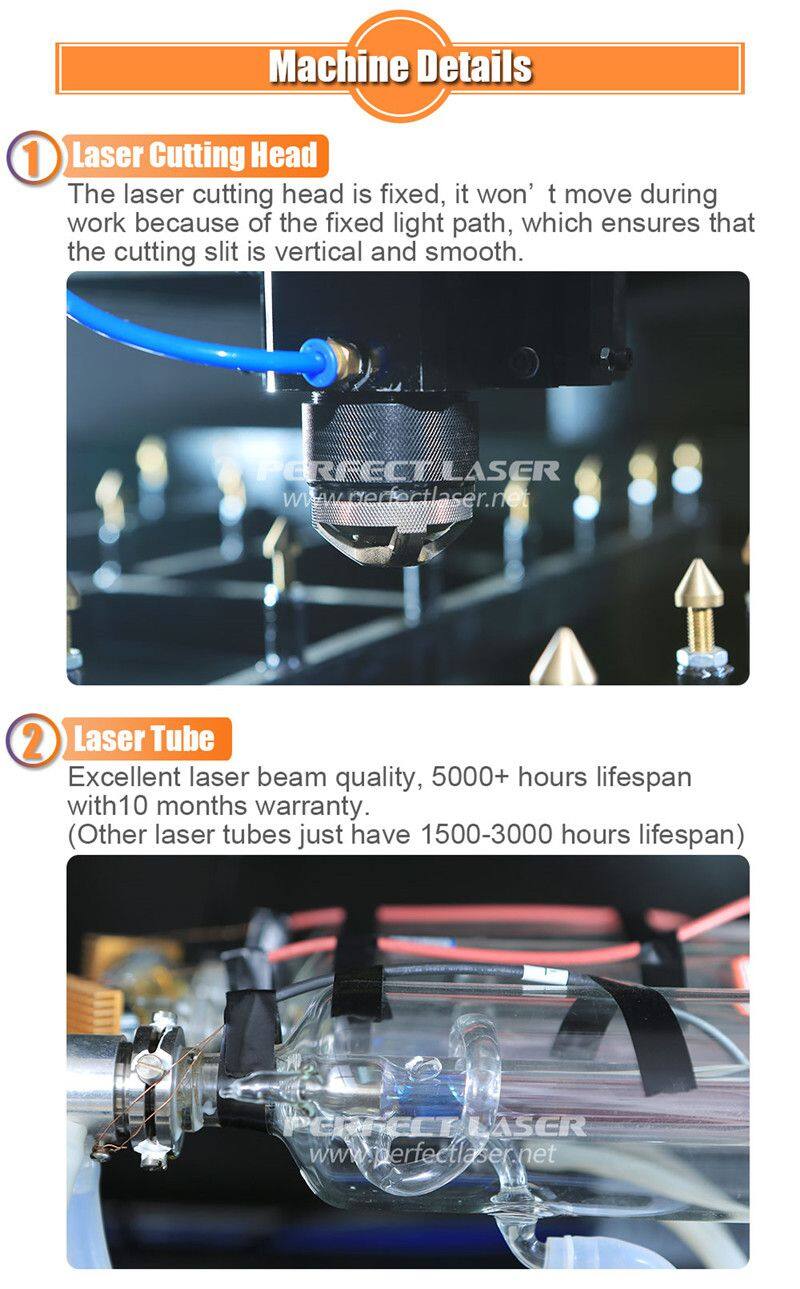

5.  The laser die board cutting machine adopts fixed optical path instead  of the cutting head, the X-axis and Y-axis platform can move when  cutting. The laser die board cutting equipment can cut through the  wooden board at a time and the cutting slit is evenly straight.

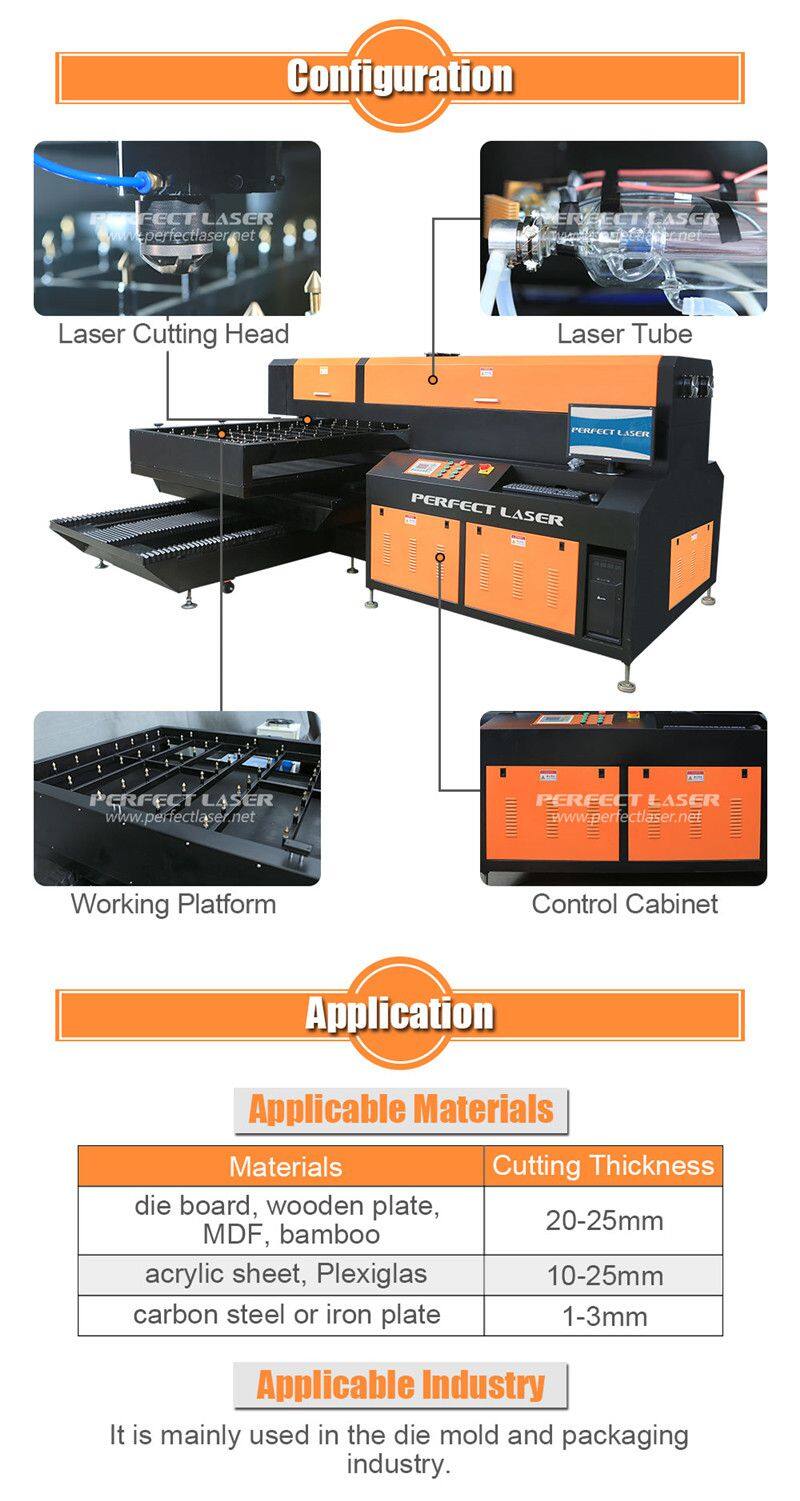

Application

1.Applicable materials

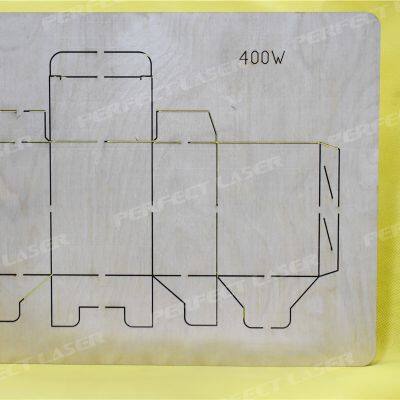

The laser die board cutting machine is  mainly used in the cutting of 20-25mm thick die board, wooden plate,  MDF, bamboo, 10-20mm acrylic sheet, plexiglass, 1-3mm carbon steel or  iron plate.

2.Applicable industry

The laser die board cutting machine is mainly used in the die mold and packaging industry.

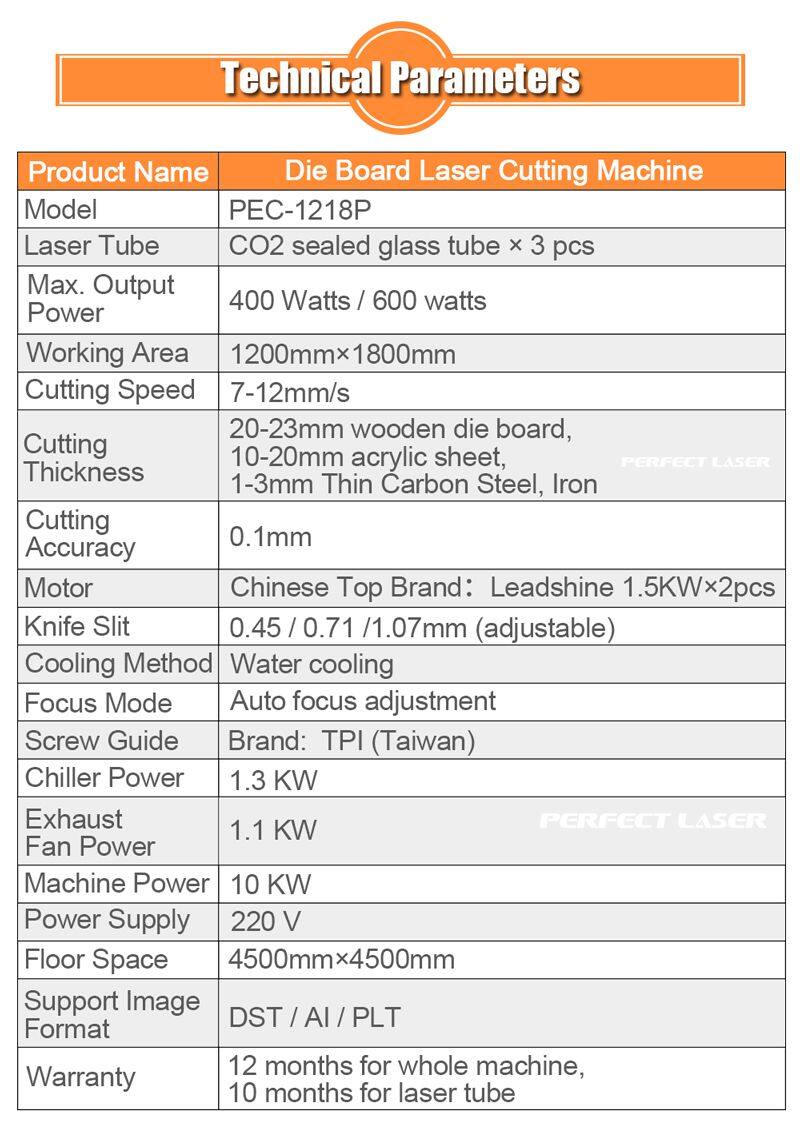

Technical Data
