Tile Scrap Shredder Plastic Clothes Shredder

FOB Price

US$ 2500 - 45000 / Set

1 Set(Min. Order)

Port QINGDAO PORT
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Walle industry	Place of Origin	China
Certification	CE IOS9001	After-sales Service Provided	Engineers available to service machinery overseas
Voltage	380 or customized	Power	Motor
Condition	New

Product Description

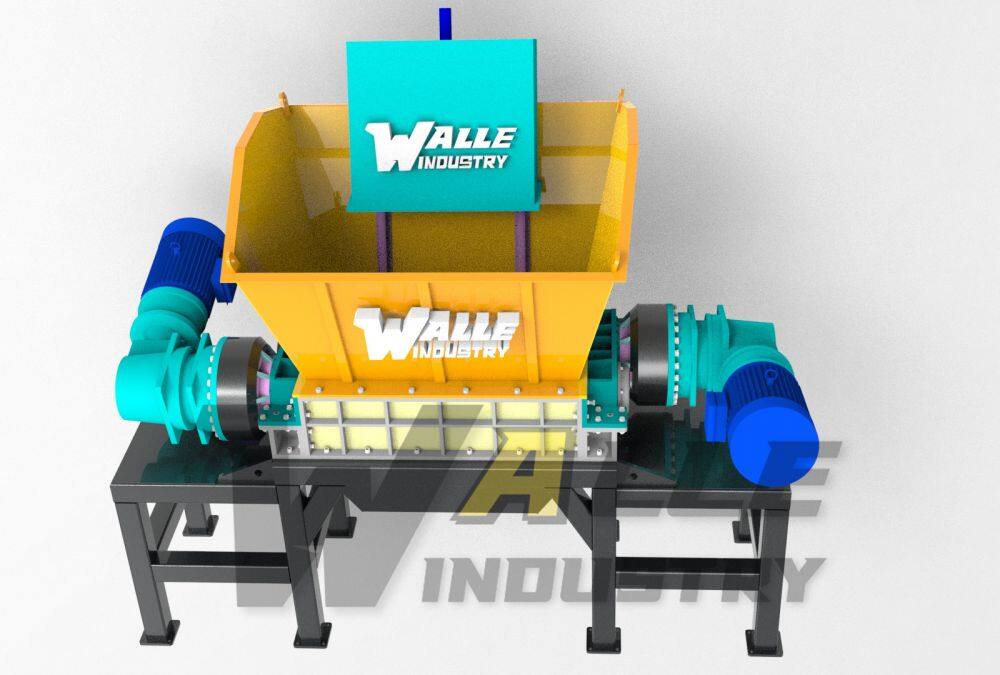

Metal scrap shredder
Appliance:
1.Tile scrap
2. car shell
3. waste appliance
4. Bike
5. motor  scrap
6. NGS tank
7.Engine block
8. Aluminum bale
9. beverage cans
Working Principle :

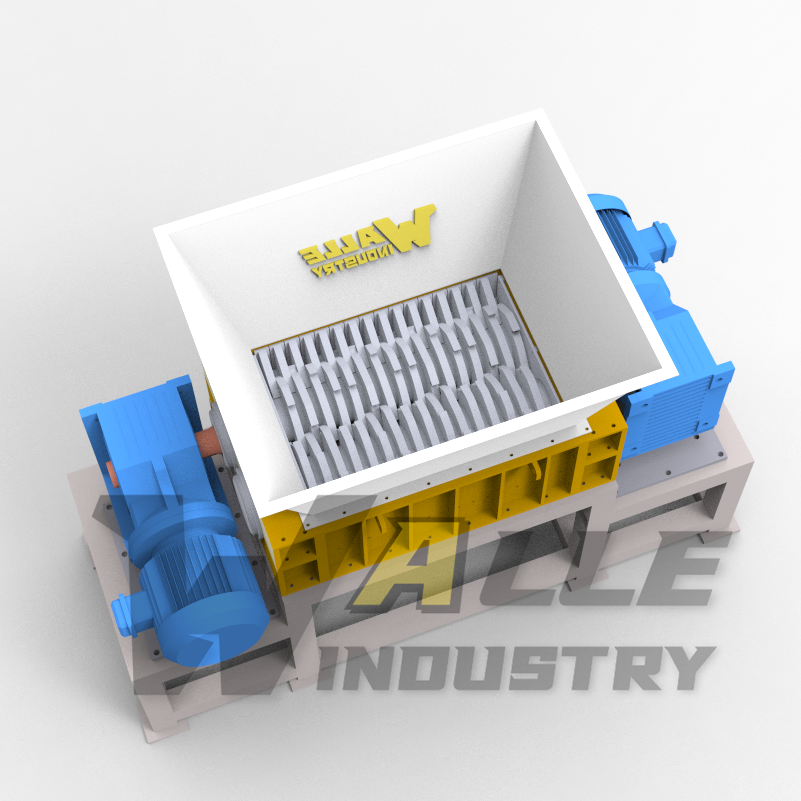

WL serious metal double shaft shredder  is mainly composed of a moving knife roller (spindle + blade), stator-Cutter, a carrying box, box support, a feeding system, a hydraulic push system, a power system, and an electrical control system. Due to its low speed and high torque, it is available for harder or bulkier materials, such as wood, tires, and waste appliances.

Our double shaft shredders have the following features:
1-The blade is made of the high alloy H13 9SiCr, which has high strength and toughness and is difficult to break.
2-The cutter of the K-rotor and D-rotor are made of H13, and the main body is made of killed steel.
3-The main electrical components are manufactured by well-known companies.
4-Automatic protection is designed to avoid machine overload and jamming.
5-High torque, low speed, low noise, and high efficiency.
6. Human's engeering and scientific design.

Type	power	Cutter Qty PCS	reducer	chamber mm	feeding port	overall size mm	weight T	capacity (T/h)
WL-800	15kw*2	30	400	600*388	1000*766	18208001930	2.1	0.5-0.8
WL-1000	22kw*2	20	500	640*588	1170*990	326013002370	3.5	1-1.5
WL-1200	37kw*2	30	355	1200*788	1600*1200	470020002700	8	2.5-3
WL-1500	55kw*2	30	400	1500*1188	1900*1450	500022002900	18	8-10.
WL-1800	75KW*2	36	400	1800*1188	2300*1450	530021503000	20	12-15.
WL-2000	90kw*2	24	450	2000*1188	2300*1500	540021503000	25	20-25.
WL-2200	110kw*2	28	240	2200*1578	3100*2500	620027003500	33	26-30
WL-2400	132kw*2	24	240	2400*1678	3200*2600	730028003800	38	30-35.
WL-2800	185kw*2	28	260	2800*2000	3700*3000	780028003800	45	35-40

006
