Home > Products > HDMI-Interface Module > Lowest price 7 inch 1024x600 Capacitive touch screen LCD Module Display for Raspberry Pi

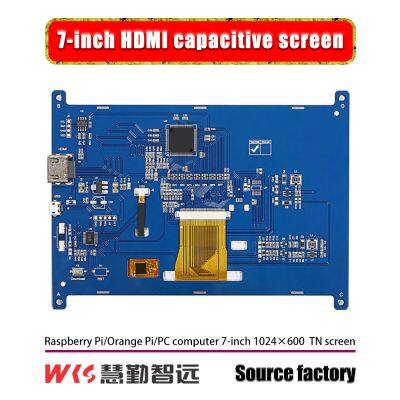

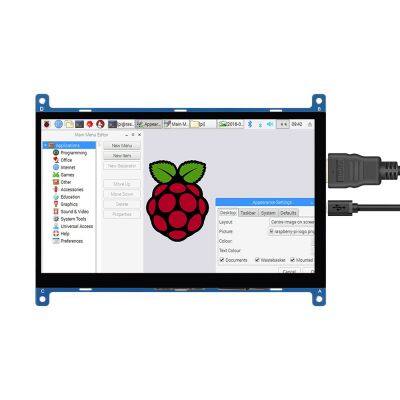

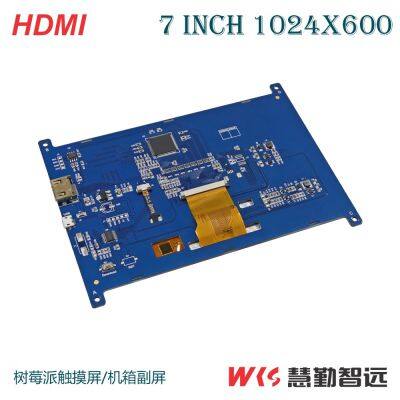

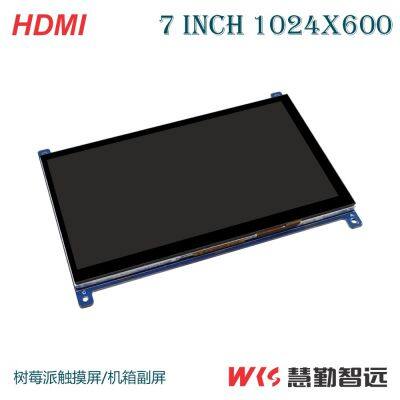

Lowest price 7 inch 1024x600 Capacitive touch screen LCD Module Display for Raspberry Pi
US$ 40 - 42
/ Piece
1 Piece(Min. Order)
- guangzhou
- T/T
- 3 days
You May Like
-
Lowest price10.1 inch 1280×800 Capacitive touch screen LCD Module Display for Raspberry Pi
-
5.5-inch TFT LCD and 1080x1920resolution HD-MI interface touch screen display
-
4.3-inch TFT LCD and 800x480 resolution HD-MI interface touch screen display
-
5-inch TFT LCD and 800x480 resolution HD-MI interface touch screen display
Product Details
| Brand Name | WKS | Place of Origin | China | |
| Model Number | WKS70WSV006-WCT | Type | TFT |
Product Description
| Item of general information | Contents | Unit | |
| LCD Display Size (Diagonal) | 7 | inch | |
| Module Structure | LCD Display+CTP Touch +PCB | - | |
| LCD Display Type | TFT/TRANSMISSIVE | - | |
| LCD Display Mode | Normally White | - | |
| Recommended Viewing Direction | 6 O'clock | - | |
| Module size (W×H×T) | 165.30x121.00x7.95 | mm | |
| Active area (W×H) | 154.21x85.92 | mm | |
| Number of pixels (Resolution) | 1024RGB×600 | pixel | |
| Pixel pitch (W×H) | 0.1506×0.1432 | mm | |
| Color Pixel Arrangement | RGB Stripe | - | |
| System Support | Win7/Win8/Win10(Plug and play) | - | |
| Android/Linux(need to be configured) | - | ||
| Module Interface Type | LCD Display | HDMI interface | - |
| CTP | USB interface | ||
| Brightness | 300 | cd/㎡ | |
| Color Numbers | 16.7M | - | |
| Backlight Type | White LED | - | |
| Operating Temperature | -20 to +70 | ℃ | |
| NTSC Ratio | 50% | - | |
