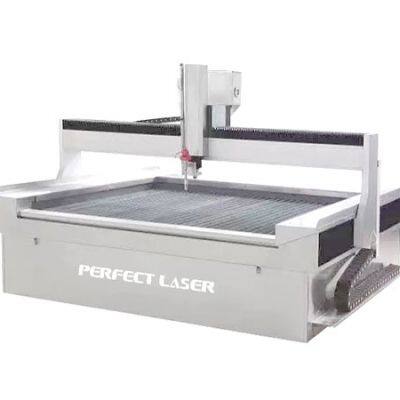

High Pressure Five-axis Water Jet Cutting Machine

CNC cutting flat

Model: PEG-1530 Water Cutter Machine

Work table size（X×Y）：1500㎜×3000㎜

X-axis travel：1500㎜

Y-axis travel：3000㎜

Z-axis travel：200㎜

Rotation axis (A and B axes）

Gantry structure makes the water cutting machine has excellent stability and rationality

X、Y、Z、A、B-axis with Japan Yaskawa servo system driver to protect the water pressure cutter's high sensitivity, high precision, high speed, improve production efficiency

Tool holder with screw does not turn, the nut to drive the way, faster response

High-precision linear rolling guide and gapless ball screw to ensure high precision machining

Unique protection design: X-direction self-draining function and Z-oriented fully enclosed design makes the process of splashing sand and water can not split the lead and guide rails to form damage

Repeat positioning accuracy：0.05㎜

Fast positioning speed：12000㎜/min

Over travel limit protection function

Taiwan silver ball screw

Taiwan silver linear rolling guide

Simple, convenient, easy to learn

Beams are made of aluminum and cast aluminum, light weight, high rigidity, to ensure that the machine is more stable, faster knife speed, cutting surface finish

High pressure generation

The main high-pressure parts of High-pressure system is imported parts, so that it has the best cost performance

Durable high-pressure parts make cutting processing costs greatly reduced, higher stability

Maximum pressure: 400Mpa (60000psi), long-term use of the pressure of 360-380Mpa

Maximum Drainage：3.7L/MIN

Reversing way: hydraulic commutation

The working pressure can be adjusted manually

Second filtration of water supply through a fine water filtration system

Low-pressure drilling function, so that the cutting of brittle materials more secure

Refrigeration: water cooling

Cutting head

Using DP2000 integrated cutting head

Using nozzle structure from the US water jet

The self-correcting function reduces the operator's assembly time

Easy parts replacement is very convenient

High pressure water open turn off

Using imported structure high pressure water switch

Pneumatic valves can achieve high-pressure water instantaneous opening and instantaneous closure, greatly reducing the return phenomenon

Automatic control of high pressure water switch with CNC auxiliary function

Closed pressure can be adjusted to achieve low pressure drilling operation and high pressure drilling operation greatly reduced drilling time

Action is sensitive and reliable

Sand control system

Using of hanging sand control system

Self-priming for sand

Manual adjustment of abrasive flow

Software

Receiving DXF format files or self-plot graphics exported AUTOCAD

DXF files can be automatically converted to NC machining instructions

PC and CNC can communicate through the serial port

Small arc automatic deceleration function

Simultaneous graphical simulation of the program to avoid processing errors
