Mud and stone separation expert: accurate screening, leading the efficient new fashion of mine construction

The mud and stone separator is a professional separation and screening equipment for coarse and fine separation of high-humidity, high-viscosity and large complex materials.

I. Working principle

The working principle of the mud-stone separator is mainly through the motor to drive the linkage shaft of the multi-stage device for regular flipping movement. The roller in the device is equipped with a shaft disc, which is used to move the material forward. The sieve surface is composed of multiple rotating discs arranged in a straight line. There is an equal layout of sieve discs on the roller, which are rotated by the gears to drive the wheel chain. Its rotation direction is the same as the flow direction of the raw material, and there is a gap between the shafts, which is used to determine the size of the separated material. The irregular wear-resistant device embedded on the shaft will hold up the large-particle material and move forward, while the sieve shaft is designed in different operating directions, so that the material begins to operate axially when it converges in a certain place on the sieve surface, thus improving the efficiency of screening. Small particles will fall into the bottom of the separator and be sent out by the belt machine.

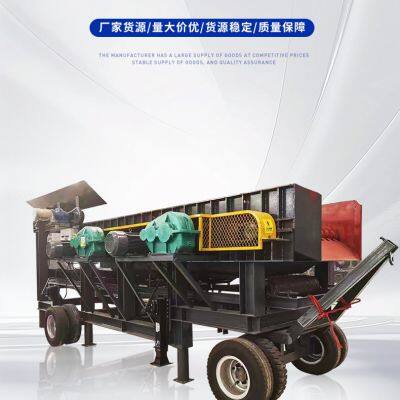

For mobile mud and stone separator, it is usually composed of a feeding system, a separation system, a power system, a cleaning system and an electronic control system. The mixture is sent to the separation device through the feeding system. In the separation device, the soil is separated from the stone through the screening of the vibrating screen, and the separated stones and soil are discharged through different outlets respectively.

II. Advantages of equipment

1. High-efficiency separation: The mud-stone separator adopts a multi-stage linkage roller sieve design, which has high screening efficiency and can effectively separate sand, stone, soil and other impurities in the mixture.

Two. Strong adaptability: The equipment can be designed and adjusted according to different working conditions and materials to meet the needs of different users, such as handling wet and sticky materials, adding water to rinse, etc.

3. Energy-saving and environmental protection: The equipment has low noise and low energy consumption during operation, and adopts a closed design to effectively reduce dust pollution and meet environmental protection requirements.

4. Convenient maintenance: The structural design of the equipment is reasonable, easy to maintain and maintain, and reduces the operating costs of users. For example, the box seal of some equipment adopts a segmented structure. When replacing and overhauling the sieve shaft, sieve and anti-corrosion lining plate, the corresponding sealing cover only needs to be removed, which is easy to operate.

III. Application field

1. The application field of mud and stone separator is very wide, including but not limited to the following aspects:

Two. Mining: It is used to separate silt and impurities in the ore and improve the purity and quality of the ore.

3. Construction site: It is used to separate sand, stone and soil in construction waste to realize the reuse of resources. At the same time, it can also be used to treat the excavated soil and construction waste to realize on-site resource utilization.

4. Concrete mixing station: used to clean and separate the residual concrete in the concrete mixer to improve the utilization rate of concrete.

5. Household waste treatment: It is used to separate recyclable and non-recyclable in household waste and promote the recycling and reuse of resources.

6. River improvement: In the river dredging project, the mud and stone separator can quickly clean up the sludge and keep the river open.

7. Disaster rescue: In natural disaster rescue sites such as earthquakes and mudslides, mudslides can be used to clean up ruins and speed up the rescue progress.
