High-Quality Wear Plate for Mining Equipment | Custom Sizes Available
- shanghai
- T/T L/C
- 14 days
You May Like
-
Heavy Duty Wear Plate for Quarrying and Aggregate Processing
-
Durable Wear Plates for Heavy Machinery | Free Quote Available
-
Wear Plate for Cement Industry | HRC 58-65 Abrasion Resistance
-
Chromium Carbide Overlay Wear Plate for Heavy-Duty Equipment
-
Surfacing welding high chromium alloy wear-resistant plate
-
High chromium alloy surfacing wear-resistant plate
Product Details
| Brand Name | wodon | Place of Origin | China | |
| Model Number | 72109000 | Length | 1400 | |
| Thickness | Uniform Overlay Thickness 0-0.5mm | Type | Other, Wear Resistant Plate | |
| Width | 3500 | Application | Other, Loader, Construction Machinery, Metallurgical Machinery, Cement Plant, Mining Machine, Thermal Power Plant, Coal Yard | |
| Surface Treatment | Other | Technique | Other, Fcw, Saw | |
| Standard | AISI, ASTM, BS, DIN, GB, JIS | Grade | AAAA | |
| Special Use | Wear Resistant Steel |
Product Description
1, General Description

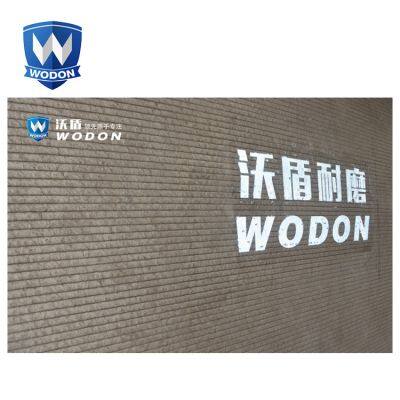

Chromium carbide composite cladding fusion bonded to a mild steel backing material.
The deposit has been realized by means of oscillated welding and a wear resistant coating applied by submerged arc welding.
Fine cracks perpendicular to the welding bead is normal due to natural stress relieving in a very hard matrix.
Very high volume of chromium carbides evenly distributed throughout the uniform thickness of the deposit.
Plate hardness ranges from HRC58-65.
Wodonplate Suitable for applications involving high abrasion and low to medium impact.
Typical applications are as follows:
Bin and hopper liners
Slurry pipes and bends
Chute and feeders liners
Belt conveyors
Dump truck bodies liner
Mining and earth moving equipment
Mill shell liners
etc...
| Thickness(backing plate + weld overlay) | L x W (mm) |
| 4+4, 5+5 | 1,400 x 3,000 |
| 6+6, 8+5, 8+6, 8+8 | 1,400 x 3,500 |
| 10+8, 10+10, 10+20, 12+12, 12+20, 14+26, 12+32, 20+30.. | 1,400 x 3,500 2,100 x 3,500 |
| Carbon | Silicon | Manganese | Chromium | Iron |
| 3.5-6.0% | 1.0-3.0% | 1.0-3.0% | 27-40% | Balance |
4, Fabrication
The backing mild steel plate provides Wodon brand overlay plates with structural integrity, which makes our overlay plates fabricated with zero damage to welding overlay, regardless of the shape and complexity of the structure. Wodon has the capabilities to manufacture and further process such fabrications or to supply formed, read-to-go wear liners.
Cutting: Wodon overlay plates could be cut by plasma, waterjet, laser. Plasma cutting is the recommended method for cutting our plate
Drilling: Straight holes and countersunk holes
Studs Welding: Wodon plate can be fabricated with studs welded to backing of wear plate (M12, M16, M20 and M24)
Joint Welding: Wodon wear plate can be welded and assembled into kinds of wear parts
