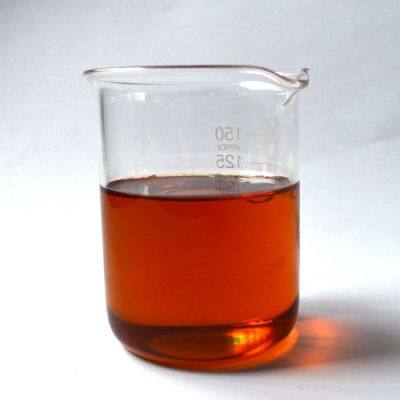

DY984N solvent extraction reagent

DY984N includes 25% 5-nonyl salicylaldoxime, 25% 2-hydroxy-5-nonyl-acetophenone oxime, and 50% solvent oil

DY984N is another copper solvent extraction reagent used in the hydrometallurgical processing of copper ores. Like other solvent extraction (SX) reagents, DY984N is designed to selectively extract copper ions (Cu2?) from aqueous solutions. It plays a key role in the recovery of copper in processes like heap leaching, dump leaching, and solvent extraction-electrowinning (SX-EW). Below is a more detailed breakdown of DY984N and its role in copper extraction.

1. Chemical Composition and Structure

• DY984N is typically based on a hydroxyoxime or ketoxime functional group, which is common in reagents used for copper extraction. These functional groups possess high affinity for copper ions, allowing them to form stable complexes with Cu2?.

• The reagent is formulated to be highly soluble in organic solvents such as kerosene or other hydrocarbon-based diluents while remaining insoluble in water. This property enables copper to be transferred from the aqueous phase to the organic phase.

2. Function in Copper Solvent Extraction

• Copper Complexation: DY984N extracts copper by forming a complex with Cu2? ions from an aqueous solution, typically from leach solutions containing dissolved copper. This copper-hydroxyoxime complex is then transferred to the organic phase, which is typically a kerosene-based solution.

• Separation of Copper: After extraction, the organic phase is separated, and copper can be stripped from it by treating it with an acidic solution, such as sulfuric acid, to recover the copper in a pure form. This is commonly done in SX-EW processes.

• Selectivity: The reagent is designed to have a high selectivity for copper over other metals such as iron, zinc, nickel, and cobalt, which are often present in the leach solution. This selectivity reduces the need for complex purification steps.

3. Properties of DY984N Reagent

• Physical Form: DY984N is typically a liquid, formulated in a concentrated form, and is diluted with an appropriate organic solvent before use in the extraction process.

• Solubility: It is soluble in organic solvents (such as kerosene, diesel, or other hydrocarbons) but is generally insoluble in water, making it ideal for the separation of copper from aqueous solutions.

• Stability: The reagent is designed to be stable under typical operating conditions of the copper solvent extraction process, maintaining its effectiveness over time without significant degradation.

4. Advantages of DY984N

• High Selectivity for Copper: One of the key benefits of DY984N is its ability to selectively extract copper while minimizing the extraction of other metal ions, which could interfere with the recovery process.

• Efficient Copper Recovery: It allows for efficient extraction of copper from low-grade ores or complex leach solutions, contributing to high copper recovery rates.

• Minimal Impurities: The reagent minimizes the co-extraction of iron and other impurities, which helps maintain the purity of the copper product and reduces the need for additional purification steps.

• Improved Phase Separation: After extraction, the organic phase containing copper can be easily separated from the aqueous phase, improving process efficiency.

5. Applications of DY984N

• Heap Leaching: DY984N is often used in heap leaching operations where copper is extracted from low-grade ore by using acid to dissolve copper and then extracting it using solvent extraction reagents.

• Solvent Extraction-Electrowinning (SX-EW): This reagent is widely used in SX-EW processes, where copper is extracted from leach solutions and then electrowon to produce high-purity copper metal.

• Purification of Copper Solutions: DY984N is also used in the purification of copper solutions, especially in complex mixtures containing a variety of base metals.

• Copper Refining: In some cases, it may be used to help in the refining of copper, particularly in processes that require the removal of impurities before final electrowinning.

6. Operational Considerations

• Concentration and Dosage: The optimal concentration of DY984N should be determined based on the specific characteristics of the ore or leach solution being processed. Typically, a dilution ratio is used to prepare the organic phase.

• pH Control: The pH of the aqueous solution is an important factor for the extraction efficiency. DY984N is most effective at a slightly acidic pH (pH range around 1.5 to 3), which is common in copper leaching operations.

• Temperature: The reagent generally works well within a temperature range of 20-40°C. Exceeding temperature limits can affect its extraction efficiency and stability.

• Stripping and Recovery: After copper is extracted into the organic phase, stripping with an acid (often sulfuric acid) is needed to release copper from the organic phase and recover it as an aqueous solution for electrowinning.

7. Environmental and Safety Considerations

• Toxicity and Handling: As with any industrial chemical, DY984N should be handled with care. While the reagent is not highly toxic, it can be harmful if it comes into contact with skin or eyes, or if inhaled. Proper personal protective equipment (PPE) such as gloves, goggles, and respiratory protection should be used.

• Waste Disposal: The spent solvent or residual chemicals should be disposed of in accordance with local environmental regulations. This includes proper treatment of spent organic phases and any waste solutions generated during the extraction and stripping processes.

• Environmental Impact: By facilitating the extraction of copper from low-grade ores and reducing the need for smelting, DY984N contributes to the environmental benefits of hydrometallurgical copper production, which is generally less energy-intensive and less polluting than traditional smelting.

8. Conclusion

DY984N is a highly effective copper solvent extraction reagent that plays a significant role in modern hydrometallurgical copper recovery processes. Its high selectivity for copper, efficiency in extracting copper from aqueous solutions, and ease of use in SX-EW operations make it an important tool for copper producers, especially in operations dealing with low-grade ores or complex leach solutions. Proper handling, operational optimization, and environmental considerations are essential to maximize the reagent’s effectiveness and safety in industrial applications.

Our metal extractants as below:

1.      P204 (D2EHPA or HDEHP) extractant. This is used for first step to remove impurity for laterite nickel ore.

2.      DY319 high efficiency nickel cobalt co-extraction extractant for battery recycle, can take out nickel and cobalt together from Lithium battery electrolyte.

3.      DY272 Nickel cobalt separation extractant, it can take cobalt out from nickel cobalt solution, then leave pure nickel.

4.      DY988N/DY973N/DY902/DY5640 copper solvent extraction reagent.

5.      P507 non-ferrous metal extractant for copper, zinc, cobalt-nickel, cadmium, gold-silver, platinum group metals, rare earths and so on.

6.      DY377 efficient nickel and diamond separation extractant.

7.      DY366 Scandium extractant.

8.      DY316 Lithium extractant.
