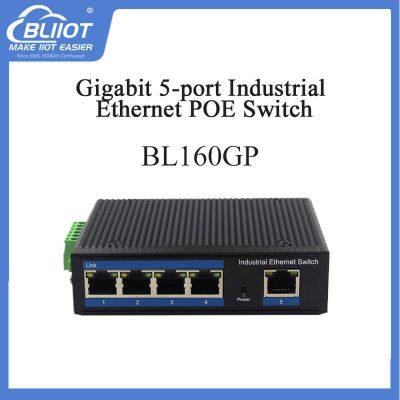

BL160GP Network POE Switch with DIN-Rail Mounting, Wide Temperature Operation, IP40 Rating and LED Indicators

Power

Power Input

DC48-57V（Dual Power Redundant Backup）

Access terminal

Phoenix terminal

Dual power redundancy

Support

Built-in overcurrent 4.0A protection

Support

Reverse connection protection

Support

LED Indicators

Power indicator

PWR

Interface indicator

Electric port（Link）

RJ45 ports

RJ45 specification

5xRJ45,10/100/1000BaseT（X）automatic detection,MDI/MDI-X adaptive

Standards

IEEE802.310BASE-TIEEE802.3i；

10Base-T；IEEE802.3u；100Base-TX/FX；

IEEE802.3ab1000Base-T；IEEE802.3z1000Base-X；IEEE802.3x；

IEEE802.3af； IEEE802.3at

POE Standard

POE Standard

IEEE802.3af/ IEEE802.3at

POE ports

1-4 electrical ports support POE

Output power

Maximum power 15.4W (IEEE 802.3af)

Maximum power 30W (IEEE 802.3at)

The POE port automatically recognizes af/at

Switch properties

Transmission mode

Store-and-forward

Packet Buffer Memory

1.2Mbit

Switching delay

<10μs

MAC Address Table

2K

Bandwidth

14G

Power dissipation

<3W

Certification

MTBF

300,000 hours

EMI

FCC Part 15 Subpart B Class A，EN 55022 Class A

EMC

IEC(EN)61000-4-2(ESD)：±6kV(contact),±8kV(air)

IEC(EN)61000-4-3(RS)：10V/m(80～1000MHz)

IEC(EN)61000-4-4(EFT)：Power Port : ±2kV CM//±1kV DM

IEC(EN)61000-4-5(Surge)：Power Port : ±2kV CM//±1kV DM

IEC(EN)61000-4-6：3V(10kHz～150kHz)，10V(150kHz～80MHz)

IEC(EN)61000-4-16：30V cont. 300V,1s

IEC(EN )61000-4-8

Shock ：IEC 60068-2-27

Freefall ：IEC 60068-2-32

Vibration ：IEC 60068-2-6

Working Environment

Working temperature

-40～75 ℃

Storage temperature

-40～80 ℃

Relative Humidity

5%～95%( no condensation）

Mechanical properties

Shell

Metal shell

Dimensions

118 x 86x 33mm

Protection type

IP40

Weight

0.36Kg

Installation method

DIN rail

Heat dissipation mode

Natural cooling, no fan

Warranty

Warranty period

1 year
