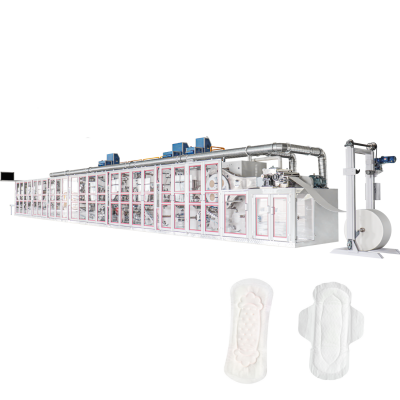

China Low-cost Customized Sanitary Napkin Equipment With Excellent Performance
- xiamen
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 180 days
You May Like
-
Full Servo Nursing Pad Mattress Production Line Nursing Pad Making Machine Nursing Pad Machine
-
Full Servo Nursing Pad Mattress Production Line Nursing Pad Making Machine Nursing Pad Machine
-
Full Servo Two-piece Pull up Baby Diaper Production Line Baby Diaper Machine Baby Diaper Making Machine
-
Full Servo 3 Pcs Pull up Baby Diaper Production Line Baby Diaper Machine Baby Diaper Making Machine
-
Full Servo Two-piece Pull up Baby Diaper Production Line Baby Diaper Machine Baby Diaper Making Machine
-
Full Servo Quick and Easy to Pack Sanitary Napkin Production Line Sanitary Napkin Making Machine Sanitary Napkin Machine
Product Details
| Brand Name | SHENGQUAN | Place of Origin | China | |
| Model Number | SQ--WSJ--600P | Certification | Other, EC ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 years | |
| Weight | 40T | Dimension(L*W*H) | 22~25×4~6×3~4.5m | |
| Voltage | 380V/50Hz | Product Type | Diaper Machine | |
| Condition | New | Power(W) | 185-220KW | |
| Processing Type | Embossing Machine |
Product Description
Technical characteristics：
Easy operation and maintenance
Mould design, allow upgrade machine
Low power consumption, high speed
Auto record, count production data
Auto change material withoutlower speed
Auto tension, web guider unit
Auto quality detection by sensor
Auto stop when material break
Auto detect and reject unqualified product

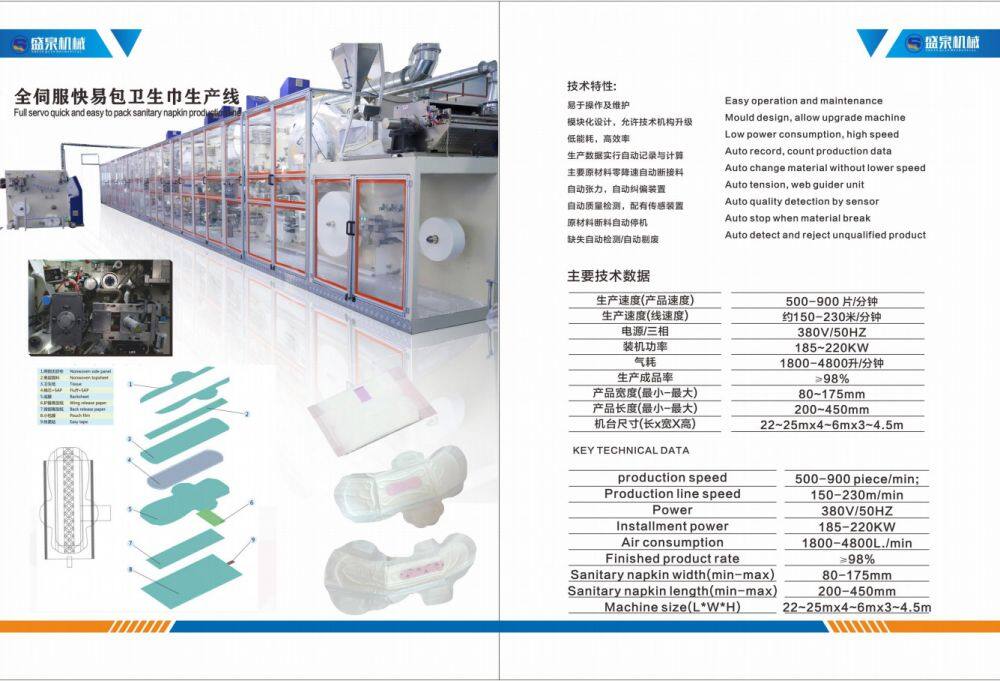

KEY TECHNICAL DATA
Production speed | 500-900pcs/min |
Production line speed | 150-230m/min |
Power | 380V/50Hz |
Installment power | 185-220KW |
Air consumption | 1800-4800L./min |
Finished product rate | ≥98% |
Sanitary napkin width(min-max) | 80-175mm |
Sanitary napkin length(min-max) | 200-450mm |
Machine size(L*W*H) | 22~25m×4~6m×3~4.5m |
Machine Weight 35~40T
