Home > Products > Frequency Converter > 50Hz to 60Hz and 60Hz to 50Hz AC Power Source 40Hz to 400Hz Frequency Converter
50Hz to 60Hz and 60Hz to 50Hz AC Power Source 40Hz to 400Hz Frequency Converter
US$ 250 - 2000
/ Piece
1 Piece(Min. Order)
- Shenzhen
- T/T L/C Cash
- 7 days
You May Like
-
Three Phase 50Hz to 60Hz and 60Hz to 50Hz AC Power Source 40Hz to 400Hz Frequency Converter
-
High frequency transformer for Welding of thermoplastics and Automotive interior parts manufacturing
-
Industrial 380VAC 1000KVA 3-Phase Independent Regulating Voltage Stabilizer
-
60kVA Three Phase Servo Automatic Voltage Stabilizer 380V 400V 415V
-
Industrial 380VAC Power 15KVA 30KVA 60KVA Servo 3 Phase Automatic Voltage Stabilizers
-
100kva static ac automatic voltage regulator/AVR Industrial three phase SCR voltage stabilizer
Product Details
| Brand Name | SSTPOWER | Place of Origin | China | |
| Type | Other | Output Power | 1 - 200KW | |
| Output Frequency | 40Hz or 499.9Hz | Output Voltage | 380V/400V/415V/440V/480V | |
| Input Voltage | 220V/230V/240V |
Product Description

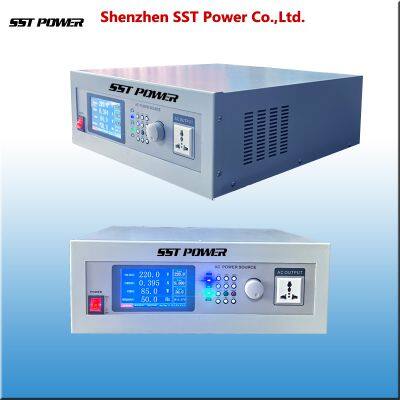

FC11 Single Phase Variable Voltage & Frequency Converter
?High accuracy of voltage and frequency regulating with fast reponse time.
?Display the voltage, frequency, current and power simultaneously
?Instant trip breaker within 2ms in case of failure
?No interference of radiation, no harmonic disdortation
?With buzzer alarm for overload, over voltage, over temperature, short circuit
?Apply worldwidely for all kinds of voltage and frequency standard
?Pure and stable sinewave output, withstands all kinds of load.
| FC11 One Phase Variable Voltage & Frequency Converter | |||||||||||||
| Item | FC11 | ||||||||||||
| Power Rating（KVA） | 0.5K | 1K | 2K | 3K | 5K | 10K | 15K | 20K | 30K | 50K | 60K | ||
| Control Method | IGBT/PWM (Pulse Width Modulation) | ||||||||||||
| Input | |||||||||||||
| Rated Voltage | 1P2W+G 220V | ||||||||||||
| Voltage Range | ±10% | ||||||||||||
| Frequency | 50Hz(47Hz～63Hz) | ||||||||||||
| Output | |||||||||||||
| Rated Voltage | Low Grade: 0-150V ; High Grade: 0-300V | ||||||||||||
| Limit Current Low Grade(L-N)(A) | 4 | 8 | 17 | 25 | 42 | 83 | 125 | 167 | 250 | 417 | 500 | ||
| Limit Current High Grade(L-N)(A) | 2 | 4 | 8 | 13 | 21 | 42 | 63 | 83 | 125 | 208 | 250 | ||
| Source Voltage Regulation | ≤±1% | ||||||||||||
| Load Voltage Regulation | ≤±1% | ||||||||||||
| Power Factor | PF≥0.8 | ||||||||||||
| Frequency | 50/60Hz(40.0～499.9HZ (Programmable) | ||||||||||||
| Frequency Stability | ≤0.01% | ||||||||||||
| Wave distortion | ﹤2% | ||||||||||||
| Efficiency | ≥90% | ||||||||||||
| Reponse time | ≤2ms | ||||||||||||
| Crest Factor | 3:01:00 | ||||||||||||
| System Protection | Overload, over voltage, over current, under voltage, over temperature, short circuit | ||||||||||||
| LED Display | |||||||||||||
| Voltmeter | 4 Digital LED display for output voltage, resolution 0.1V | ||||||||||||
| Ammeter | 4 Digital LED display for output current, resolution 0.1A | ||||||||||||
| Wattmeter | 4 Digital LED display for output power, resolution 0.1W/0.1KW | ||||||||||||
| Frequency Meter | 4 Digital LED display for output frequency, resolution 0.1Hz/Step | ||||||||||||
| Others | |||||||||||||
| Cooling System | Air | ||||||||||||
| Insulation Resistance | ≥2MΩ | ||||||||||||
| Voltage-endurance | The whole machine has no breakdown and no arcing phenomena for 2000VAC/ min. | ||||||||||||
| Working Environment | |||||||||||||
| Ambient Temperature | 0℃-45℃( No condensation ) | ||||||||||||
| Working Humidity | 0℅-90℅( No condensation ) | ||||||||||||
| Altitude | ≤1500m | ||||||||||||
| Dimension | |||||||||||||
| Size WxDxH(mm) | 430×500×180 | 350×530×660 | 350×650×860 | 550×750×1100 | 700×900×1300 | ||||||||
| Net Weight (KG ) | 25 | 29 | 40 | 70 | 75 | 120 | 138 | 180 | 270 | 380 | 400 | ||
| Gross Weight (KG ) | 31 | 35 | 46 | 76 | 80 | 132 | 180 | 200 | 300 | 400 | 420 | ||
| Product specifications are subject to change without further notice. | |||||||||||||
