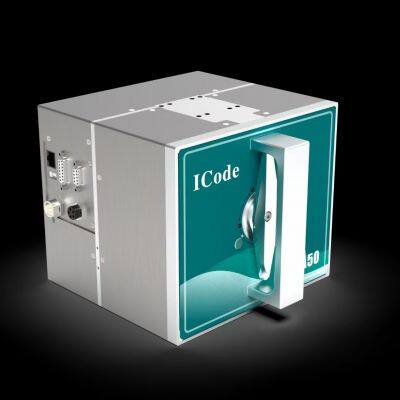

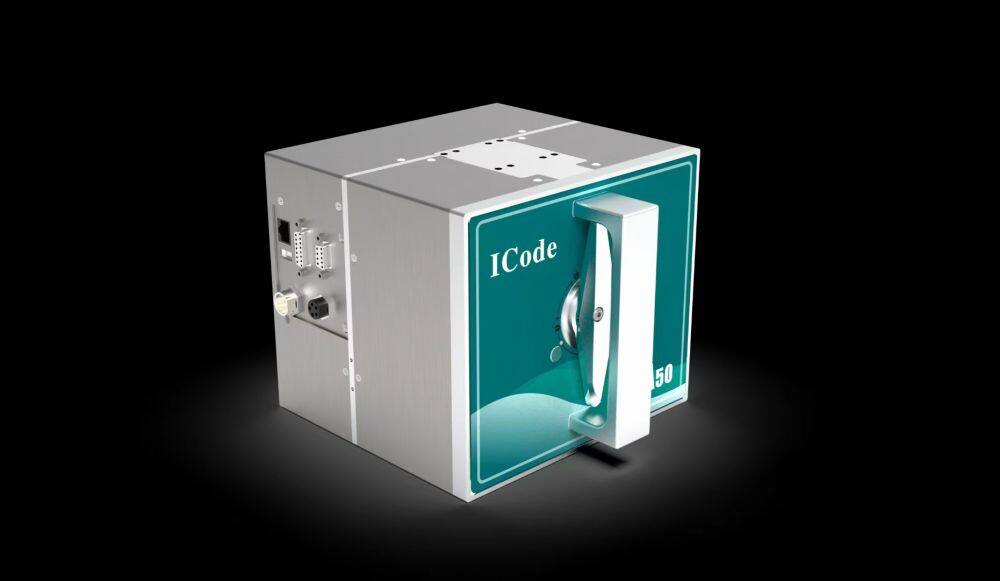

DANAPR Marking Thermal Transfer Overprinters (TTO) Full Line of Thermal Transfer Overprinters for Printing Variable Content on Flexible Packaging and Labels

Whether marking simple date and time codes, complex regulatory codes, ingredient lists, or marketing information,  TTO printers help keep your production lines running at peak performance. Print high resolution images on flexible packaging film and labels while minimizing downtime and costs associated with production changeovers.

Machine structure: intermittent continuous left and right hand machine, all metal parts, no need for air supply

Maximum print width: 53mm (300dpi)

Printing area: 53×75mm intermittent; 53×200mm continuous

Printing speed: 100—500mm/s intermittent; 50—600mm/s

Printing frequency: 300 times/min intermittent; 450 times/min continuous

High performance index: 450 packs per minute; free Icode editing software;

Many-to-many control: One controller can control multiple printers, with unlimited user rights configuration to avoid improper operation.

Printing features: No need for external software to support one code for one item, Automatic print head positioning,

Dead pixel detection, no manual adjustment is required,Turn on the machine to use

1. Print body: 32-bit CPU, 256MB memory, 512MB FLASH.

2. Controller: 64-bit 4-core CPU, no less than 1GB memory, no less than 16GB storage

3. Communication: Print body: Gigabit/100M Ethernet, WIFI, USB, serial port.,Controller: Gigabit/100M Ethernet, WIFI, USB, Bluetooth.

Support flexible packaging material types: PET, PE, OPP, BOPP, CPP, PA, BOPET, BOPA and other films and composite films.

Alarm function: The amount of ribbon is insufficient to avoid missed printing.

Ambient Conditions: 0° to 40°; Humidity: 10% to 90%, non-condensing

Machine size: height 180mm, width 170mm, length 210mm
