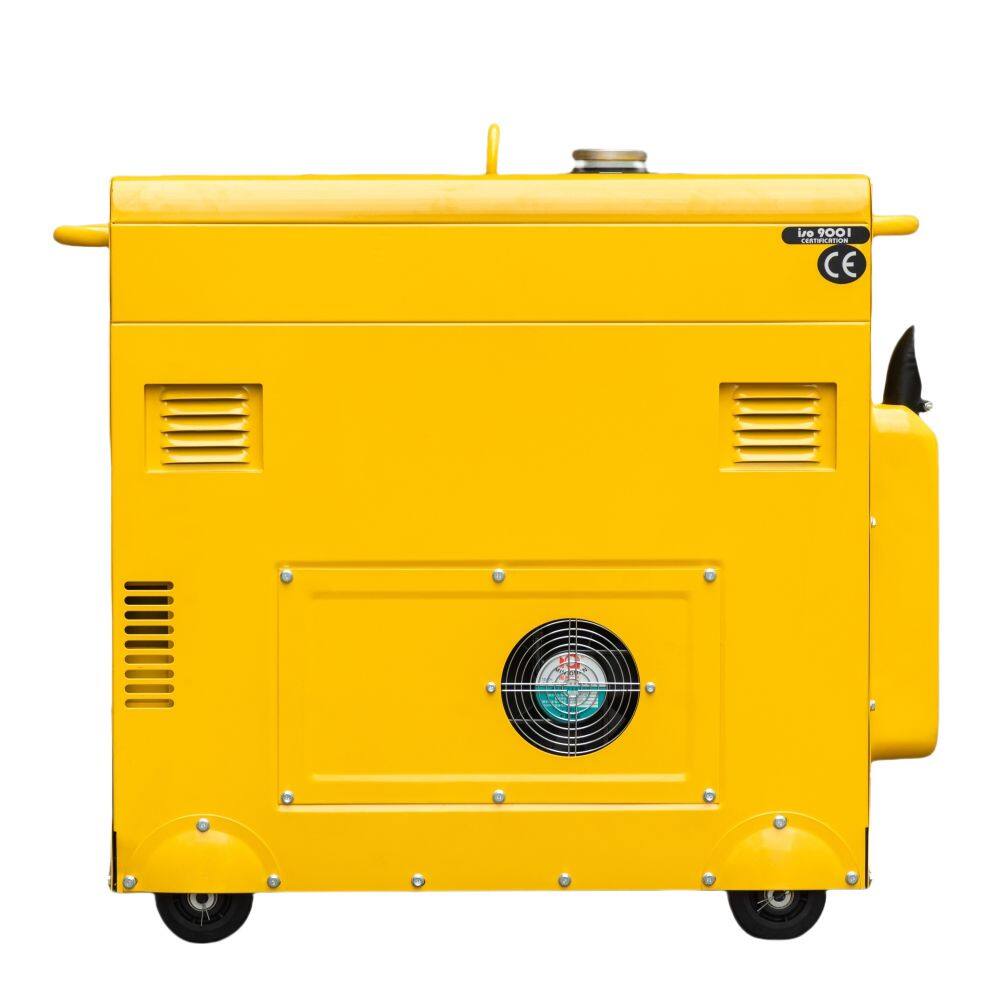

6kw Dual Voltage Silent Diesel Generator

FOB Price

US$ 600 - 650 / Set

20 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Model	DG8500SED
Frequency[Hz]	50 60
Voltageg[V]	220.230.240.110/220.115/230.120/240.230/380.230/400.240/415
Rated Power( KW)	Single phase5.0/Three phase 6 Single phase 5.5/Three phase7.0
Max. Power(KW)	Single phase 5.5/Three phase 6.5 Single phase 6.0/Three phase 7.5
Rated Output Current（A )	Single phase22/Three phase8.6 Single phase 24/Three phasea 10
DC Output	12V 8.3A
Phase	Single phase/Three phase
Excitation Method	Brush self-excitation
Power FactorΦ	1.0(0.8)
Insulation Class	F
Fuel Tank Capaciity[L]	12.5
Engine Model	192FE
Start Method	Electric Start
Engine Type	Single cylinder,4-stroke,air-cooled, vertical
Bore*Strokke[mm]	92 * 75
Displacement	0.499
Compression Ratio	19.5：1
Speed[rpm]	3000 3600
Power [Kw]	7.5 8.2
Oil Capacity[L]	1.65
Fuel Consumption[g/kwh]	≤280 ≤290
Fuel No.	Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter.
Oil No.	SAE10W30 (CD grade or above) uses CD or above grade 15W-40 oil (or SAE equivalent grade oil)
Optional	ATS,Remote Control, Intelligent digital display panel
Size [mm] (LWH)	910525780
Packing Size [mm] (LWH)	940540900
Net Weight/Gross Weight[Kg]	160/167
