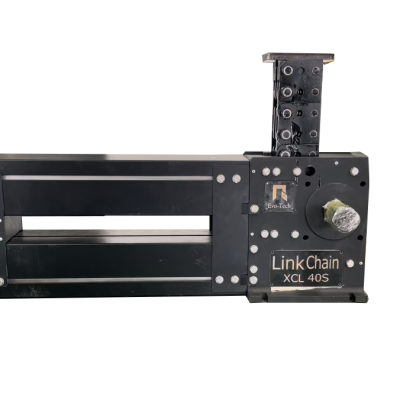

Evo-Tech rigid chain linklift 40Smodel for 3tons loading

FOB Price

CNY 20000 - 50000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Evo-Tech	Place of Origin	China
Model Number	40S	After-sales Service Provided	Overseas service center available
Condition	New

The layout is flexible, the drive unit is modularized, and the layout is highly adaptable.

The load is heavy, the static load of a single chain is 1.0~300kN, and the dynamic load is 0.5~200kN.

Fast speed, the highest running speed can reach 300mm/s.

High precision, high repeat positioning accuracy of ±0.5mm, can stop at any position within the stroke range.

The structure is compact, and it can realize a large stroke in a small space. The installation height stroke ratio can reach 1:5.

Good rigidity, mechanically rigid structure, compared with hydraulic drive, no settlement when parked with heavy load for a long time.

Good synchronization, supporting synchronous operation of multiple independent drive units.

Driven by pure electricity, the load can realize three-dimensional linear motion in a limited space.

Low noise, less than 45dBA (measured at a distance of 1.5m) when a single machine is running at full load.

It is easy to maintain, can be replaced quickly, only needs regular lubrication, easy maintenance and low cost.
