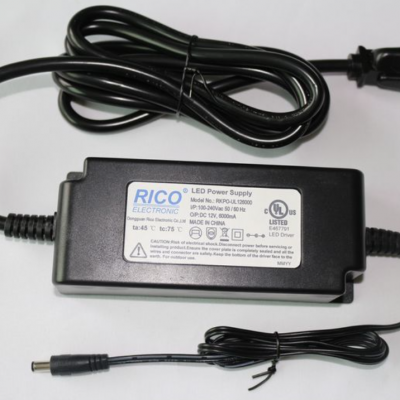

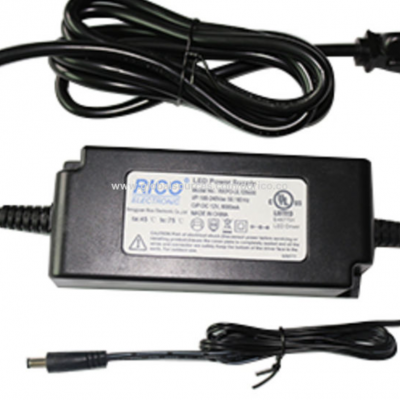

LED Light Constant Voltage Source Power Supply Street Light Power Driver 12V 6A 72Watt LED power supply

• Electrical description:

1.Input voltages: 100-240V AC

2.Input frequency range: 47-63Hz

3.Efficiency: >80%

4.Output power: 72W

5.Output voltage: 12DC

6.Output current: 6000mA

7.Protections: OCP, SCP, OVP and OTP

8.Operating temperatures: -30-60℃

9.Storage temperatures: -40-70℃

10.Humidity range: 35 to 80% RH

11.Constant voltage precision: ±5%

12.Safety compliance: UL8750+1310+EN61347-1EN61347-2-13EN61558, EN60950EN60065, EN62368

13.FCC: EN55015, EN61000-3-2, EN61547, GB17743 and GB17625.1

14.MTBF: ≥60,000 hours at 25°C

15.Waterproof UL waterproof two pins plug and IP68 main enclosure

16.Input with UL without earth pin plug+SJTW 2X0.824mm

17.Output cable: UL SPT-1W 20AWG, 18AWGH05RN-F 2X0.75mm, 2x1.0mm

18.Female waterproof socket and male DC waterproof plug connect, easy to use and convenient to connect DC load product.

• Features:

1.Universal AC input/full range

2.Output isolated constant voltage power supply, meet class II standard.

3.Protections: short-circuit/overload/over-voltage/over temperature

4.Enclosure sealed with silica gel and ultrasonic to meet IP68 for outdoor use.

5.High reliability and real long lifespan

6.Low-noise, energy-saving and environment-friendly

7.Fire-proof plastic case and cooling by free air convection

8.Compact size and low cost

9.Low ripple design

10.OEM/ODM orders are accepted

11.Energy efficiency: CEC, DOE, Nrcan, Erp VI.

12.Two years quality guarantee.

• Mechanical appearance:

1. Fire-proof plastic case housing

2. Waterproof IP68

3. Cord connected type and easy installation DC Male and female plug.

4. Greens environment friendly, meet RoHS, Reach, 12P, 16P, 18P, nP according to customer's requirements.

5. Application: outdoor laser lights, LED outdoor lights, CCTV, IT products, BBQ, home appliance
