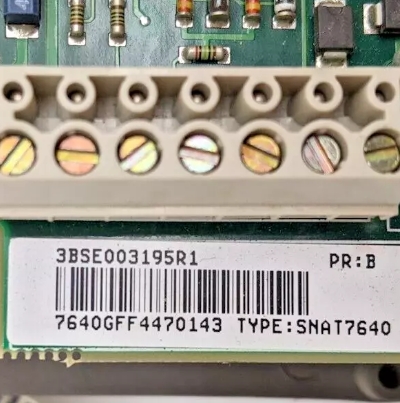

ABB SNAT7640 3BSE003195R Control/Interface Board

Sumset International Trading Co., Limited

Parent company: Xiamen Hongxinhe Trading Co., Ltd.

Lina(Sales Manager/Technical Consultant)

Mobile (WhatsApp/Wechat): +86 18059276824

Email: sales7@nseauto.com

Address: Room 1904, Building B, Diamond Coast, No. 96 Lujiang Road, Siming District, Xiamen, Fujian, China 361001

The SNAT7640 3BSE003195R Control/Interface Board

Supports the predetermined communication rate in the standard specification.

Supports manual setting of all standard rates or rate adaptation by the DIP switch (consistent rates for all electrical interfaces).

6 dual-color LED status indicators, power failure relay output alarm.

4000V lightning protection for the electrical interface, 1.5 A overcurrent, 600W surge protection. Industrial-grade design, EMC test certification.

DC9-36V wide redundant dual power supply, DC1500V power isolation, reverse connection protection.

IP30 protection level, corrugated aluminum reinforced housing, standard industrial 35mm rail installation method.

Data electrical interface:

9-pin Sub_D jack connector, the pin definition complies with the Profibus DP protocol specification.

Supports Profibus DP bus standard.

Communication rate: 9.6kBit/s, 19.2 kBit/s, 45.45kBit/s, 93.75k kBit/s, 187.5kBit/s, 500kBit/s, 1.5MBit/s, 6MBit/s and 12MBit/s.

With 4000V lightning protection, 1.5A overcurrent protection and 600W surge protection;

Terminal resistor: This machine does not have a terminal resistor, please connect it externally as needed.
